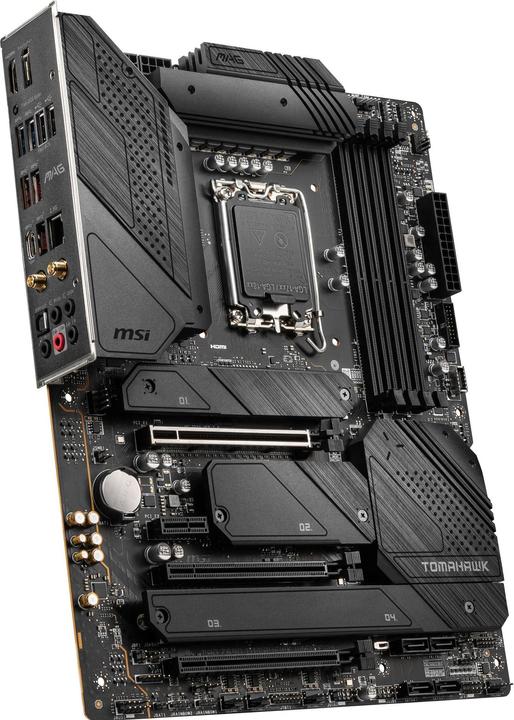

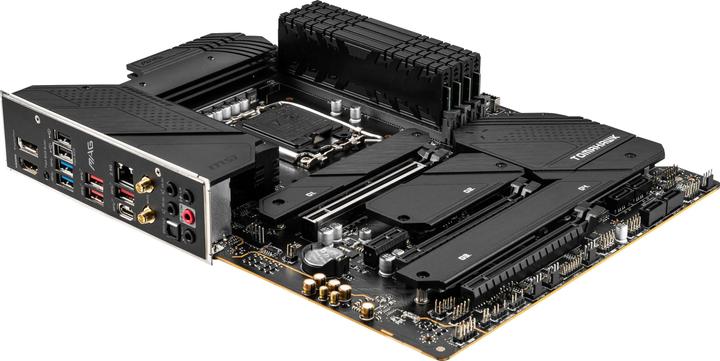

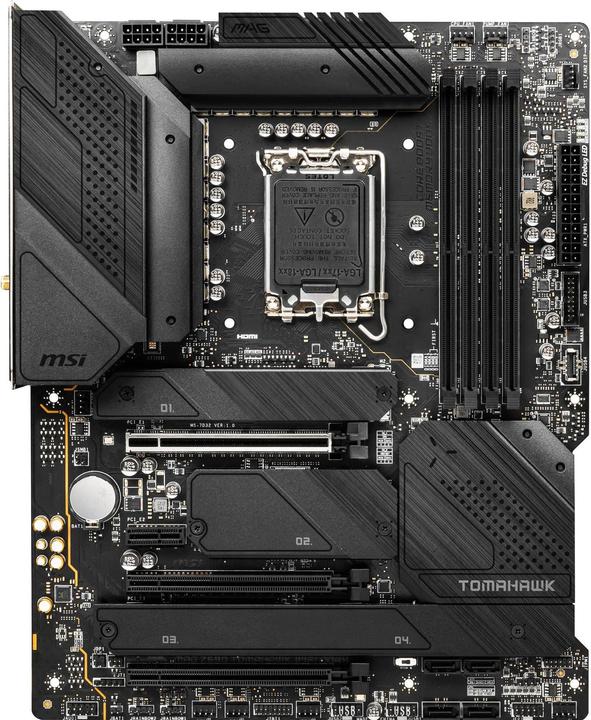

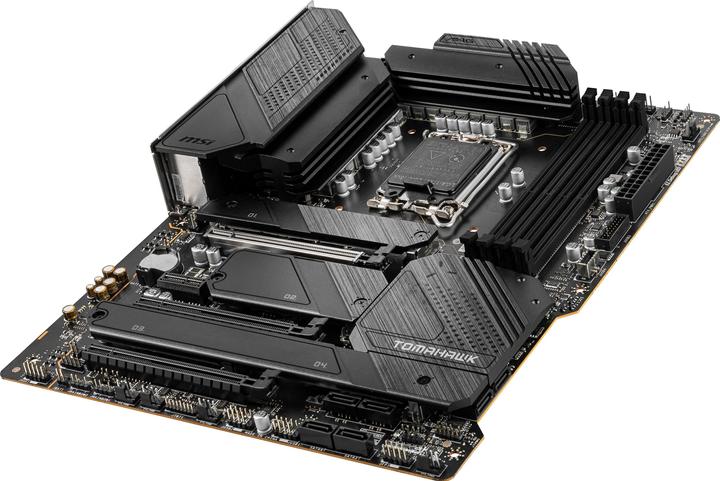

MSI Mag Z690 Tomahawk Wifi
LGA 1700, Intel Z690 (DDR4), ATX8 items in stock at third-party supplier
Product details
Thermal solution for more cores and higher performance
With more cores’ processors, thermal and power design is more important to make sure the temperature stays lower. MSI's extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPUs run at full speed with MSI motherboards.
SMT PCIe 5.0 slot
MSI motherboards adopt the advanced SMT (Surface Mount Technology) PCIe slot to diminish interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCIe 5.0 signals.
High-bandwidth and low-latency network
2.5Gbps LAN provides incredible data transfer speeds faster than general Gigabit LAN. This is a premium solution for demanding users.
Processor family | Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i7 12th Gen, Core i9 12th Gen, Pentium Gold |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (4x), S-ATA III (6x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, RGB header, Serial header |
Item number | 17253032 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7D32-002R |
Release date | 4.11.2021 |
External links |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z690 (DDR4) |
Mainboard features | Front panel audio connector, RGB header, Serial header |
Operating system compatibility | Windows 10, Windows 11 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i7 12th Gen, Core i9 12th Gen, Pentium Gold |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-5200 |
Max. RAM OC | 5200 MHz |
Supported memory speed | 2666 MHz, 2933 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

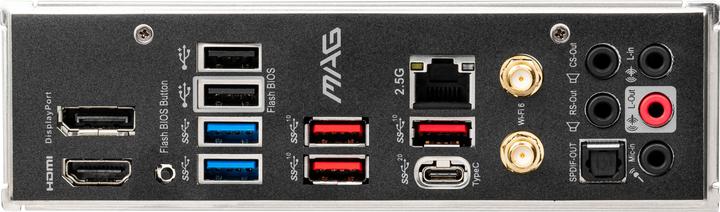

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Intel I225-V |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x), Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (4x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (Gen 3) (1x) |
Exact USB ports | USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (3x) |
Power connectors | 24-pin ATX, 2x 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 73 mm |
Weight | 1000 g |
Length | 35.50 cm |
Width | 30.10 cm |
Height | 7.50 cm |
Weight | 2.04 kg |
