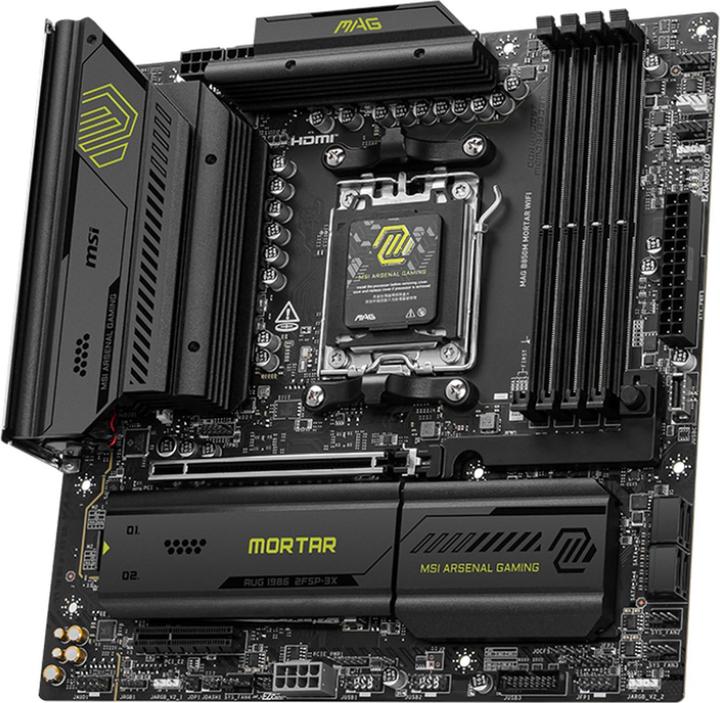

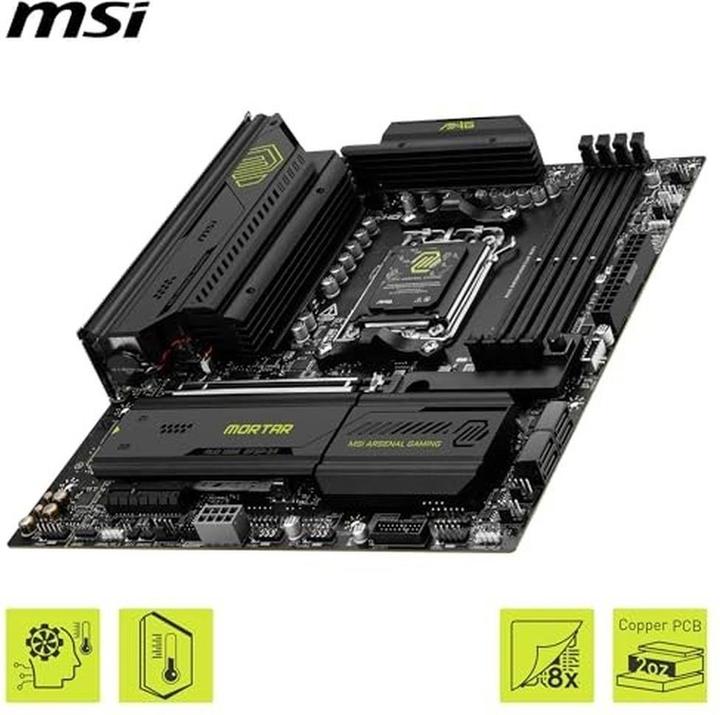

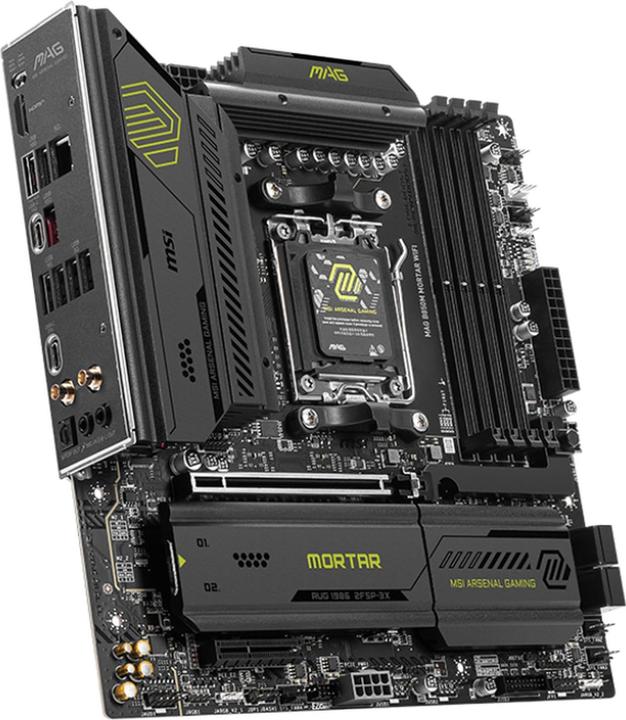

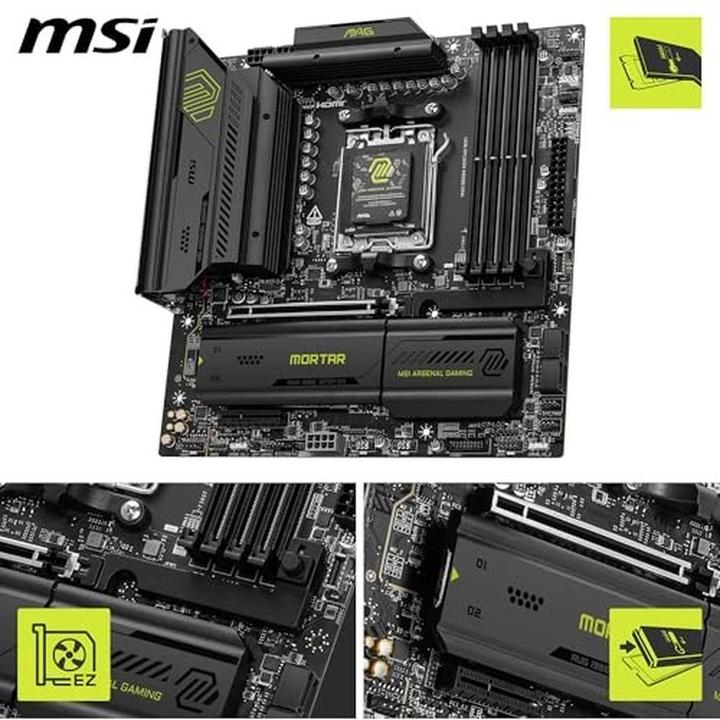

MSI MAG B850M Mortar WiFi is designed for gamers with a stable, durable, and DIY-friendly foundation for their PC builds. It features a true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, supplemental PCIe power, and exclusive EZ DIY features, making it ready for the battlefield of AMD Ryzen™ 9000 series processors.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Processor family | Ryzen 5th Gen, Ryzen 7th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, RGB header, Trusted Platform Module |
Item number | 57576537 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E61-001R |
Release date | 13.5.2025 |
Sales rank in Category Motherboards | 49 of 1051 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B850 |
Mainboard features | Clear CMOS Button, RGB header, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 11 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | Ryzen 5th Gen, Ryzen 7th Gen, Ryzen 9th Gen |
Memory form factor | CU-DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8200 MHz |
Supported memory speed | 4800 MHz, 5600 MHz, 6400 MHz, 8200 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x), PCI Express x4 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 2 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (3x), USB-C 3.2 Gen 2 (1x), USB-C 3.2 Gen 2x2 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China, Taiwan |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Wifi Antenna |
Length | 243.80 mm |
Width | 243.80 mm |
Height | 243.80 mm |
Length | 28 cm |
Width | 28 cm |
Height | 7 cm |
Weight | 1.82 kg |
