MSI B760M PROJECT ZERO (B760,S1700,mATX,DDR5)
LGA 1700, Intel B760, mATXOnly 3 items in stock at supplier
Product details

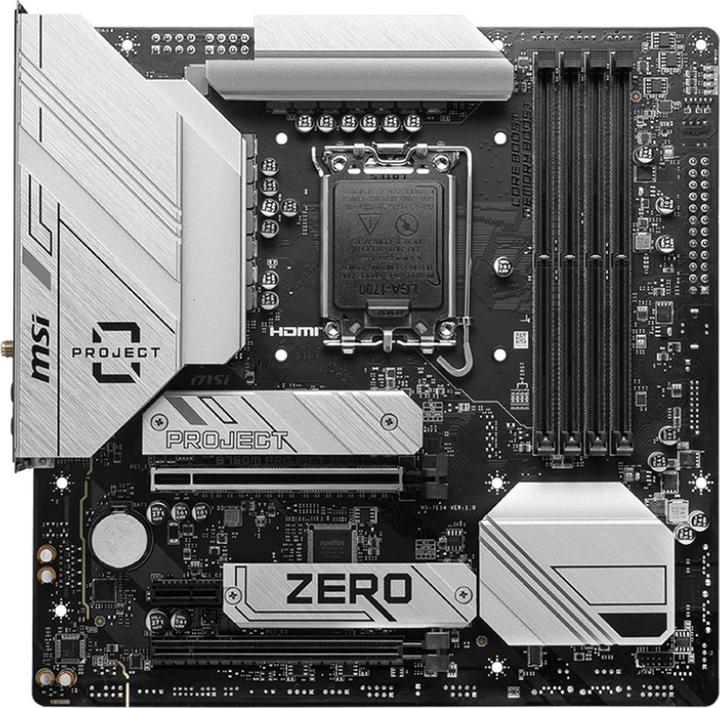

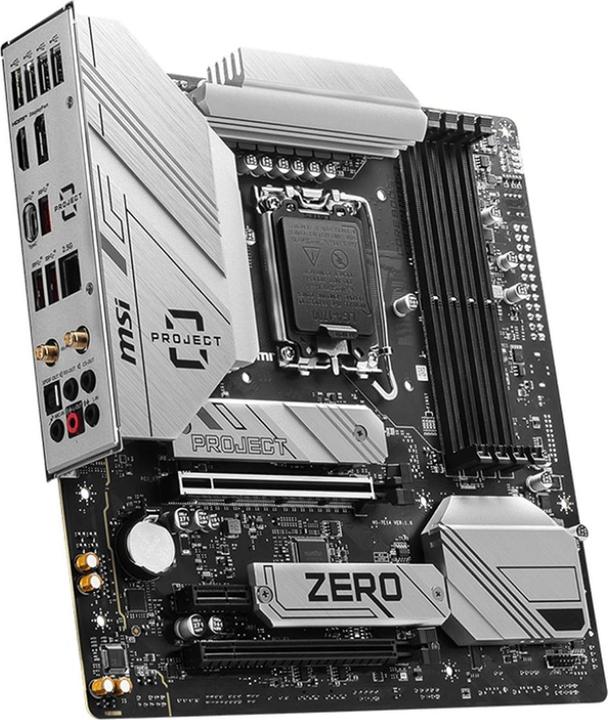

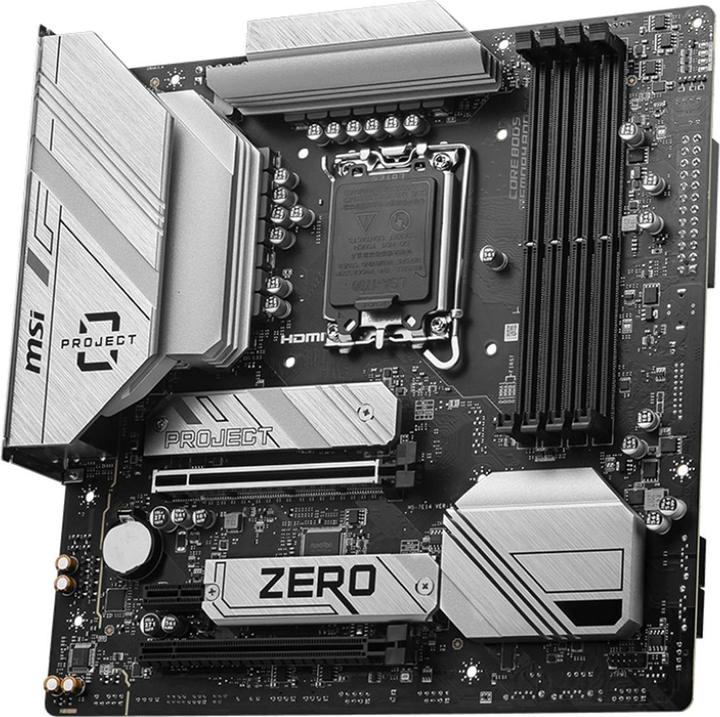

The MSI B760M Project Zero motherboard is based on the Intel B760 chipset and supports Intel processors for socket 1700 of the 12th, 13th, and 14th generation. It features four DDR5 DIMM slots in dual-channel mode for up to 192 GB of RAM. The B760M Project Zero is also equipped with a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot. Additionally, it includes 8-channel sound, a 2.5 Gigabit LAN interface, Wi-Fi 6E, Bluetooth, four SATA3 ports, two M.2 ports, and a variety of USB interfaces.
Processor family | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | MSI PROJECT ZERO, Trusted Platform Module |
Item number | 40930595 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E14-001R |
Release date | 20.2.2024 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | MSI PROJECT ZERO, Trusted Platform Module |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Processor family | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 |
Max. RAM OC | 6800 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 1.4 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (2x) |
Number of fan connector | 5 |
USB ports | USB-C |
Exact USB ports | USB-A 3.0 (4x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China, Germany, Taiwan |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | SATA |
Length | 243.84 mm |
Width | 243.84 mm |
Length | 29.50 cm |
Width | 28.70 cm |
Height | 8.10 cm |
Weight | 1.62 kg |
