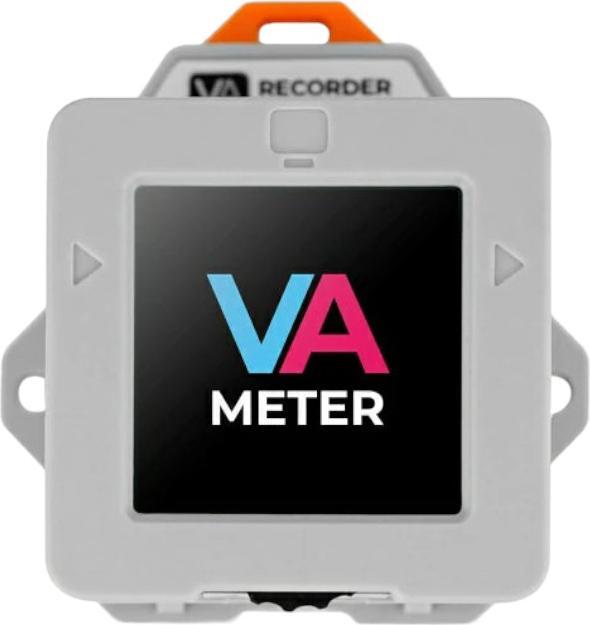

M5Stack VA meter with voltage and current measurement

Ratings
Delivered Tue, 19.8.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

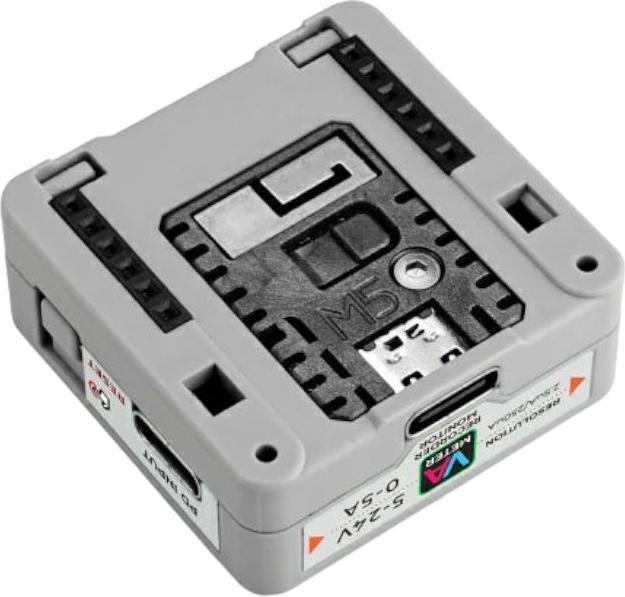

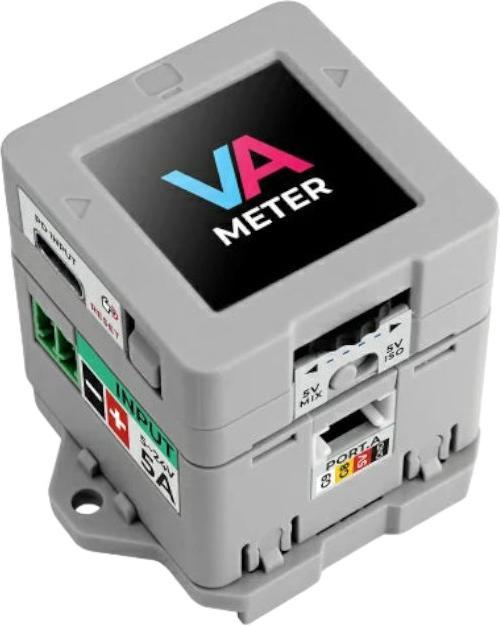

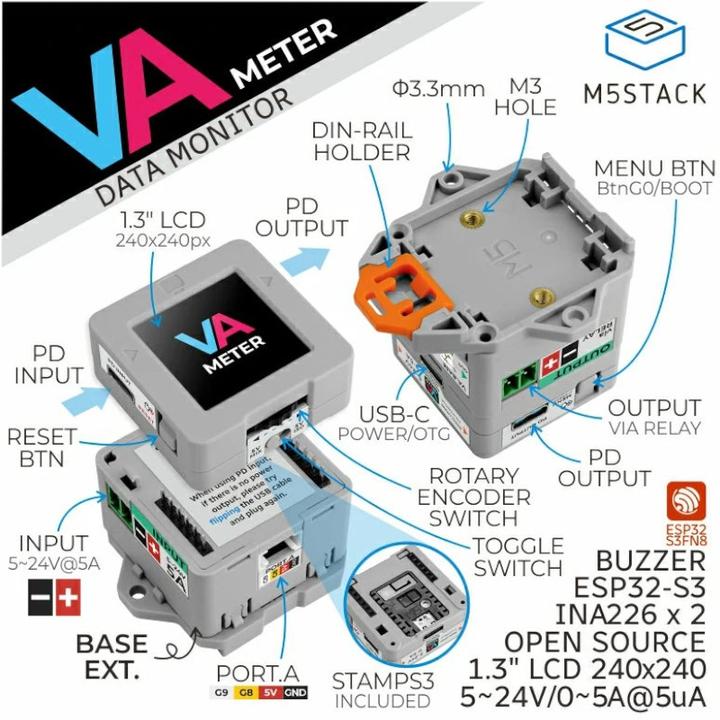

The M5Stack VA Meter is a high-precision, programmable power meter specifically designed for accurate measurement of voltage and current. It is based on the M5StampS3 main control module and features WiFi functionality, allowing for easy integration into IoT applications. With two INA226 measurement circuits connected in series, the device achieves an impressive current detection resolution of 2.5uA and 250uA, while supporting a measurement range of 0-5A and 5-24V (1-24V in isolation mode). Power is supplied via a USB-C interface or the base input, with built-in power and signal isolation for added safety. Users can choose between isolated and non-isolated measurements, enhancing the device's flexibility. The included expansion BASE enables relay control and provides a Grove port for secondary development. Additionally, the VA Meter supports OTA firmware upgrades and USB MSC/OTG functionality, making it easier to process and display data on a PC. M5's free online data API interface allows users to upload test data to the EZData platform and access it remotely, significantly simplifying the development of IoT applications.

  • High-precision measurement of voltage and current with a resolution of 2.5uA and 250uA
  • Supports isolated and non-isolated measurements via a toggle switch
  • Integrated OTA firmware upgrade functionality

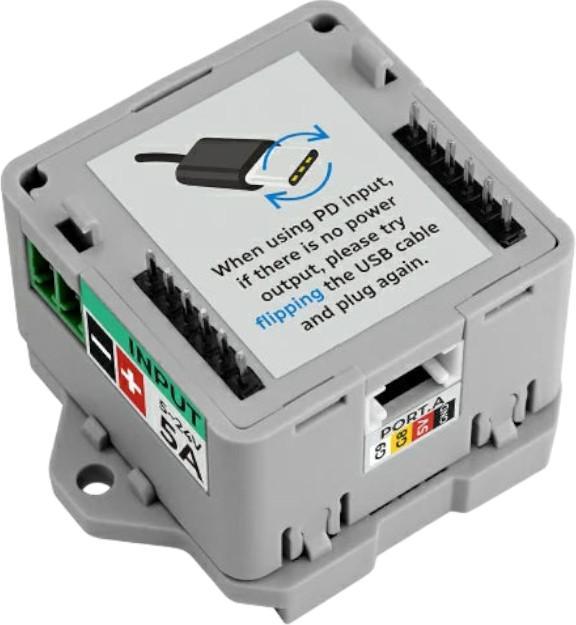

  • Expansion BASE with relay control and Grove port for secondary development
  • Free online data API interface for accessing test data.

Key specifications

Development board type
Board
Memory
8 MB
Processor family
Tensilica
Processor type
ESP32
Clock speed
240 MHz
Number of cores
2
Item number
49266312

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Release date
11.9.2024

Development board properties

Development board type
Board
Processor family
Tensilica
Processor type
ESP32
Clock speed
240 MHz
Memory
8 MB
Number of cores
2
Flash memory
8000 kB

Power supply

Power supply
Electrical connection, USB power delivery
Operating voltage
24 V

Wireless transmission

Wireless transmission
Wi-Fi
Wi-Fi standard
Wi-Fi 4 / 802.11n

Connections

USB ports
USB-C

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x M5Stack VA meter with voltage and current measurement
Additionally required (not included)
USB-C magnetic charging data cable angled 1m

Product dimensions

Length
51.50 mm
Width
48 mm
Height
40.50 mm
Weight
70 g
