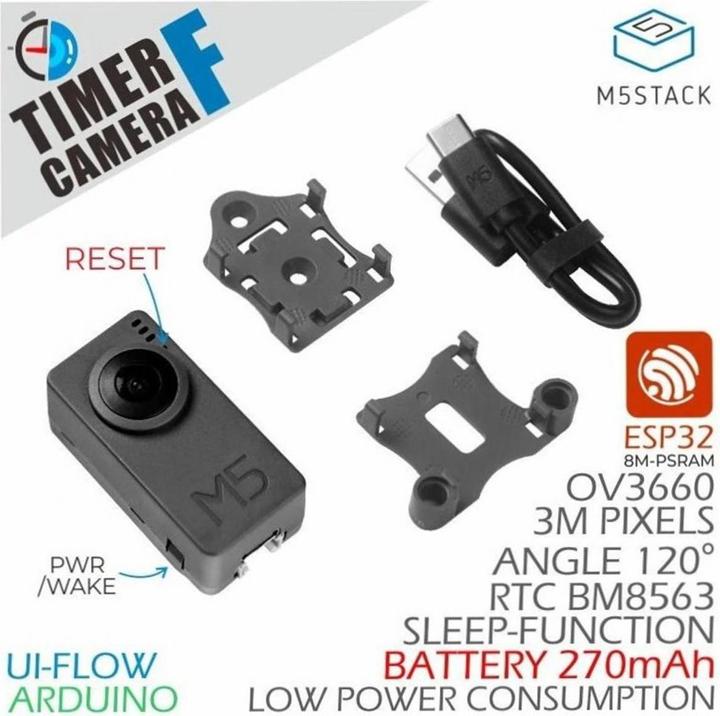

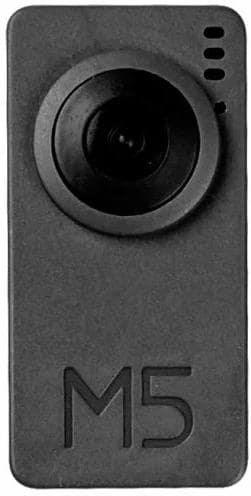

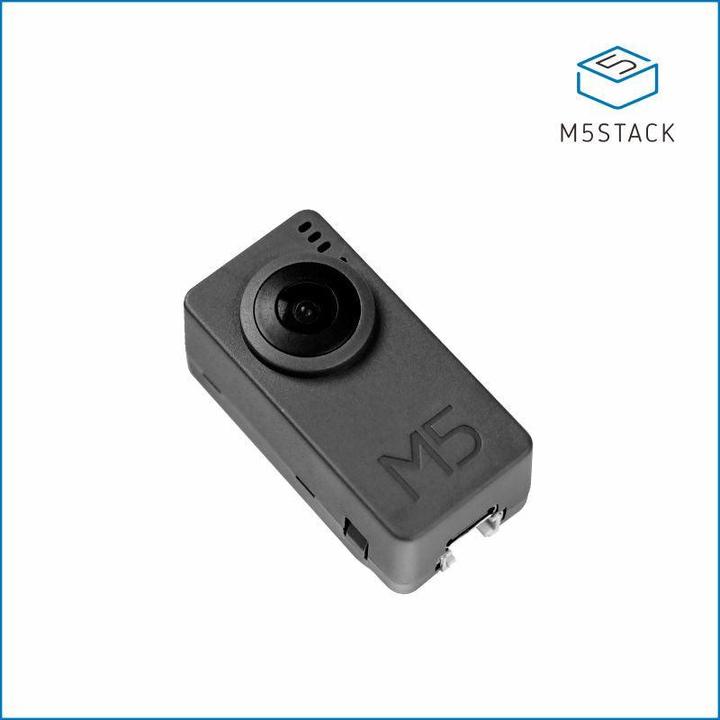

M5Stack Timer Camera Fisheye ESP32 OV3660

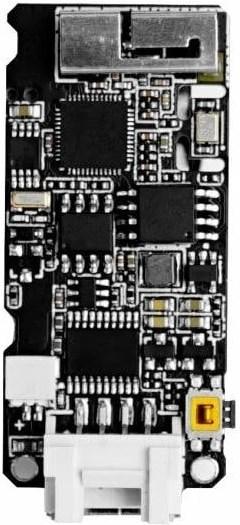

The Timer Camera F is a fisheye camera module based on the ESP32-D0WDQ6-V3, featuring 8M PSRAM and 4M flash memory. It includes a 3.0-megapixel camera (OV3660) with a diagonal field of view of 120° and a maximum resolution of 2048x1536 for capturing photos. The camera is designed for extremely low power consumption, and the integrated RTC (BM8563) can output the IRQ signal, which is useful for sleep mode and waking up with a timer, with a sleep current of only 2μA. The built-in 270mAh battery provides over a month of battery life for scheduled captures (one per hour).

The module supports image transmission over WiFi and debugging via the USB port, and the HY2.0-4P output at the bottom allows for the expansion with additional peripherals. An integrated LED status indicator and a reset button assist with programming and debugging. M5Stack offers various simple and efficient methods and interfaces for application development for the TimerCAM series, making it easier for users to develop their applications, including PC and mobile photo capture apps, a cloud image HTTP interface for scheduled captures, and a cloud AI detection interface (not yet online).
