M5Stack Thermal transfer printer kit M5 ATOM

Ratings
BrandMore from M5Stack
Delivered between Fri, 12.6. and Mon, 15.6.
5 pieces in stock at supplier
free shipping

Product details

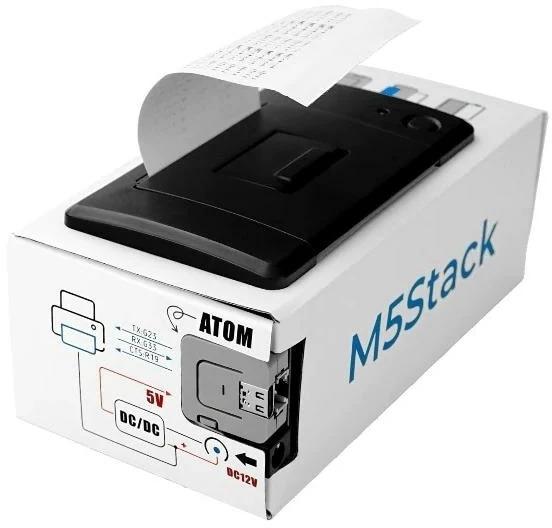

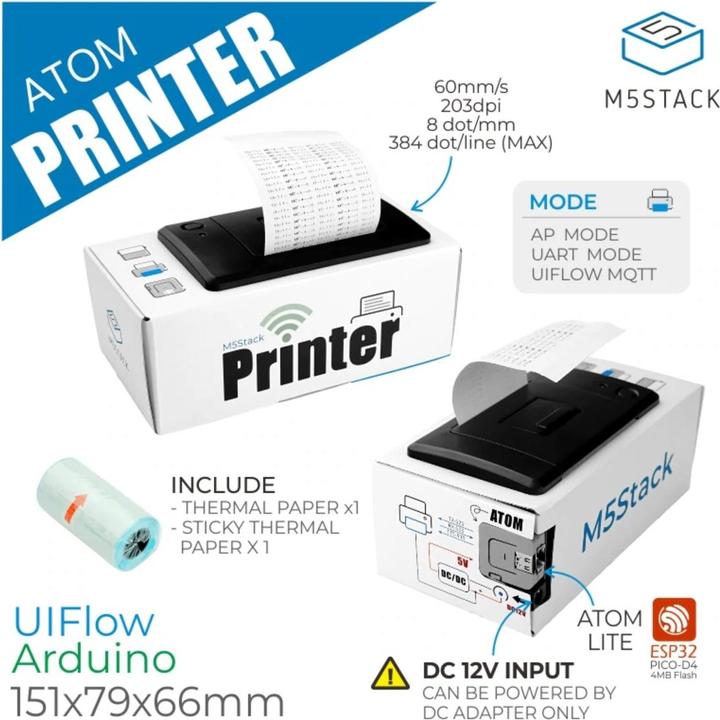

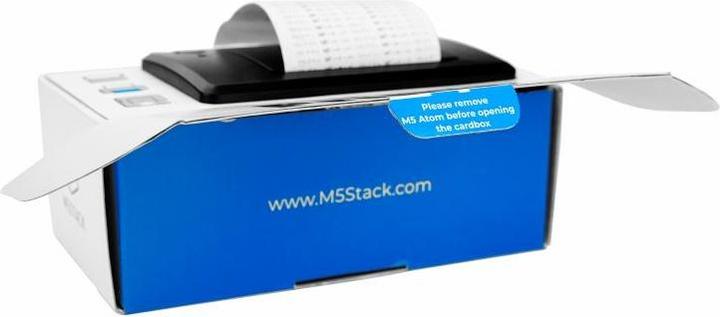

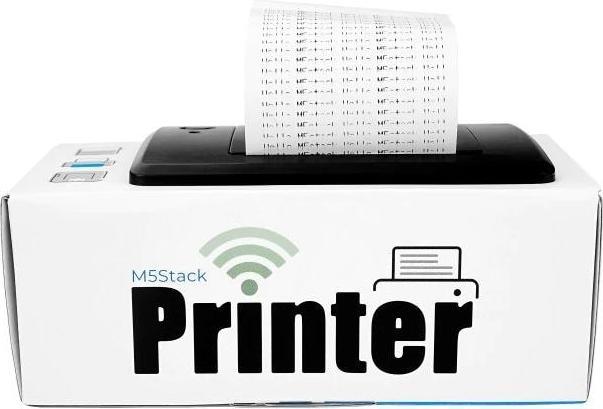

This is a compact thermal printer from M5Stack. The printer is controlled via an M5Stack ATOM Lite. With the Atom, you can connect via WiFi, USB-C, or the M5Stack Grove connector. Print commands can then be sent over an AP hotspot connection, MQTT, or serial UART. The printer comes with a standard paper roll, which you can use to print receipts, and an additional adhesive roll for sticky labels.

Note: A 12V power supply is not included and must be purchased separately.

Recommended accessory:
12V DC power supply

Features:
Atom Lite: ESP32-Pico-D4 4MB Flash IoT Controller
UART Interface
AP Hotspot
USB-C
MQTT
UIFlow
Standard and adhesive paper for labels

Technical details:
Manufacturer: M5Stack
Manufacturer SKU: K118
Voltage: 12V DC
Operating current: 2.5A
Print color: Black
Print speed: 60mm/s
Print resolution: 203dpi
Connection: USB-C, AP, MQTT, UART
Dimensions: 151 x 79 x 66mm
Weight: 280g

Package contents:
1x M5Stack Atom Thermal Printer Kit including Atom Lite
1x Adhesive paper roll for labels.

Key specifications

Development board type
Kit
Processor family
Tensilica
Processor type
ESP32
Clock speed
240 MHz
Working memory
4 MB
Number of cores
2

General information

Item number
20406723
Manufacturer
M5Stack
Category
Single board computer kits
Manufacturer No.
K118
Release date
4.4.2022
Sales rank in Category Single board computer kits
140 of 2967

Target group

Target group
Adults

Development board properties

Development board type
Kit
Processor family
Tensilica
Processor type
ESP32
Clock speed
240 MHz
Working memory
4 MB
Number of cores
2
Flash memory
4000 kB

Power supply

Power supply
Electrical connection
Operating voltage
12 V

Connections

USB ports
USB-C
Additional connections
UART

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
1.61 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
1x ATOM LITE, 1x ATOM printer, 1x self-adhesive termo paper roll, 1x termo paper roll

Product dimensions

Length
79 mm
Width
151 mm
Height
66 mm
Weight
285 g
