M5Stack Scroll Unit

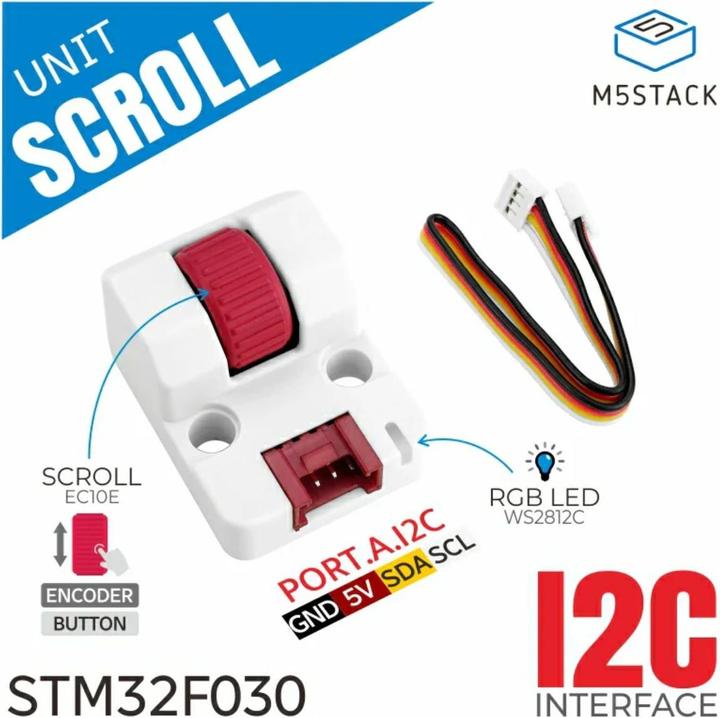

The M5Stack Scroll Unit is a versatile expansion module specifically designed for control applications. It is based on an STM32 microcontroller and features a 12-pulse rotary encoder as well as an integrated button. Additionally, it offers a WS2812C RGB LED that is individually programmable. This unit allows for easy and precise control of scaling values or volumes through the use of the I2C communication protocol. Thanks to its simple integration via I2C interfaces, the Scroll Unit is suitable for many control projects in the fields of industrial automation, smart home, robotics, and human-machine interaction.

Features:
The STM32 microcontroller base ensures fast and reliable signal processing. The 12-pulse rotary encoder provides precise control, perfect for applications requiring accurate adjustments. An integrated button offers additional control options, ideal for direct input in projects. The WS2812C RGB LED enables programmable visual feedback that is flexibly customizable. The I2C interface ensures easy communication with other devices and microcontrollers.

Technical Specifications:
Manufacturer: M5Stack
Manufacturer SKU: U186

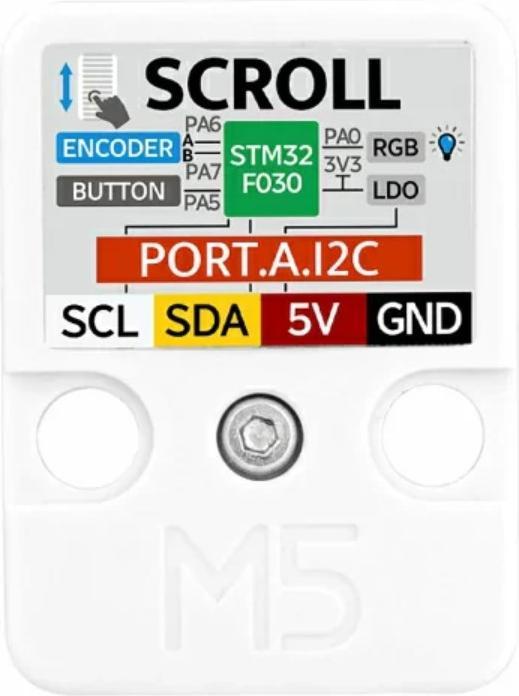

Microcontroller: STM32F030F4P6 (32-bit ARM Cortex-M0 processor)

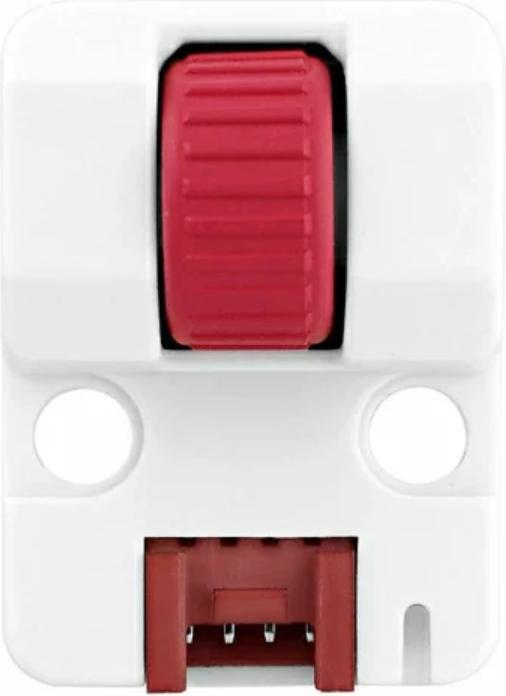

Encoder: EC10E, 12 pulses per revolution
Output: AB two-phase quadrature output
RGB LED: 1x WS2812C
Button: 1x integrated button
I2C Address: 0x40
Operating Temperature: 0-40°C

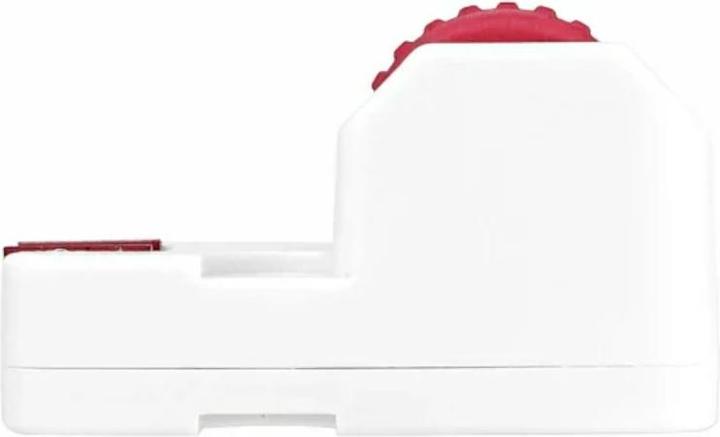

Dimensions: 32 x 24 x 18.9 mm
Weight: 13 g

Delivery Contents:
1x M5Stack Scroll Unit
1x HY2.0-4P Grove cable 20 cm.
