M5Stack RFID 2 Unit WS1850S

1Ratings
Delivered between Tue, 3.6. and Wed, 4.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

The RFID2 Unit operates in the 13.56 MHz frequency band and utilizes the modulation and demodulation principle to interact with an RFID card. This unit can realize the functions of a card reading and writing device. Applications such as access control systems, time tracking, inventory management, and shared vehicle access recording are possible. Connect this unit to the GROVE PORTA on M5Core or M5Stick. The I2C address is 0x28.

Info: Compared to the previous generation RFID UNIT, only the reading and writing IC RC522 has been replaced by the WS1850S. There are no differences in functionality.

Technical Details:
Manufacturer: M5Stack
Manufacturer SKU: U031-B
Chip: WS1850S
Frequency: 13.56 MHz
I2C Address: 0x28
I2C Data Rate: Fast Mode: up to 400 Kbit/s; High-Speed Mode: up to 3400 Kbit/s
RC522 Transceiver Buffer: 64 Bytes
Supported Protocol: ISO14443A, MIFARE, and NTAG
Operating Temperature: -20°C to 85°C
Reading and Writing Distance: < 20mm
Mounting: Two Lego compatible holes
Connection Plug: PH2.0 4 Pin
Interface: Grove

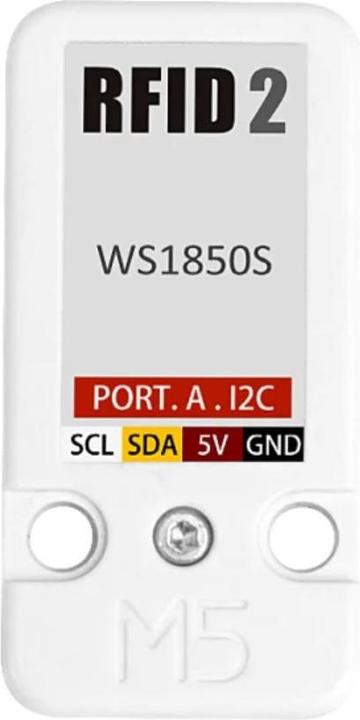

Used Pins: G21, G22 (SDA, SCL)
Dimensions: 48 x 24 x 8mm
Weight: 12g

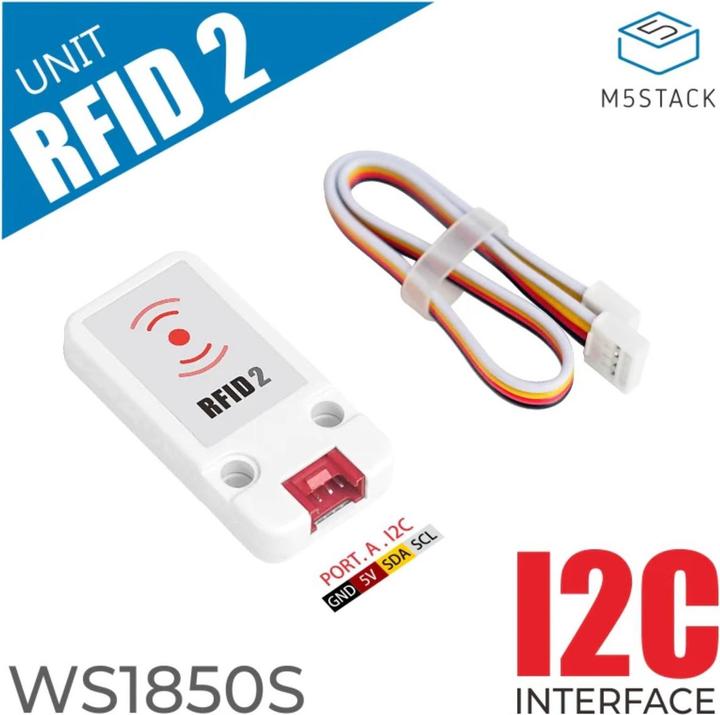

Delivery Contents:
1x M5Stack RFID 2 Unit WS1850S
1x GROVE Cable 20cm.

Key specifications

Development board type
Kit
Item number
24083751

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Manufacturer no.
U031-B
Release date
6.2.2023
Sales rank in Category Development boards + Kits
39 of 2743

Development board properties

Development board type
Kit

Power supply

Power supply
Electrical connection
Operating voltage
5 V

Wireless transmission

Wireless transmission
Radio Frequency (RF)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x GROVE cable 20cm, 1x M5Stack RFID 2 Unit WS1850S

Product dimensions

Length
48 mm
Width
24 mm
Height
8 mm
Weight
6 g

Package dimensions

Length
13.80 cm
Width
9.40 cm
Height
1 cm
Weight
13 g
