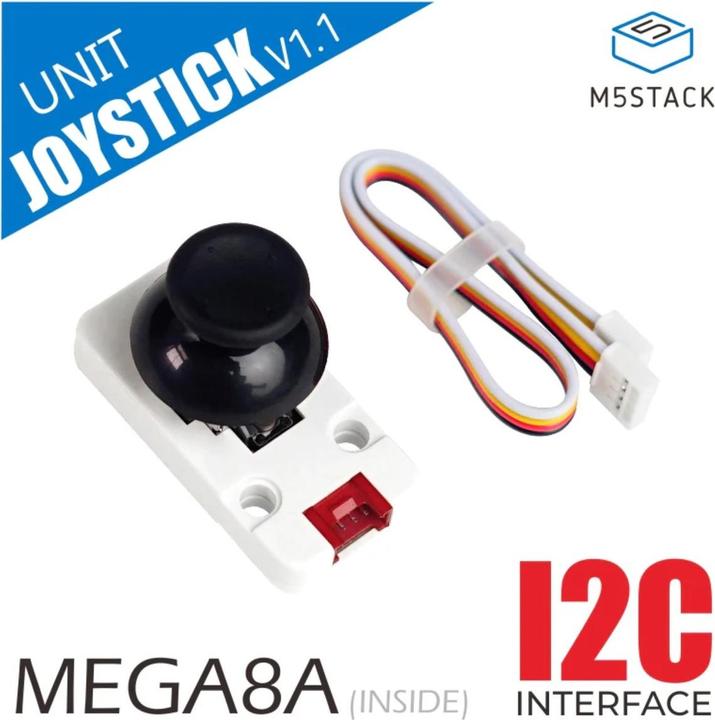

M5Stack Joystick I2C Unit V1.1 MEGA8A

Ratings
Delivered between Mon, 21.7. and Tue, 22.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

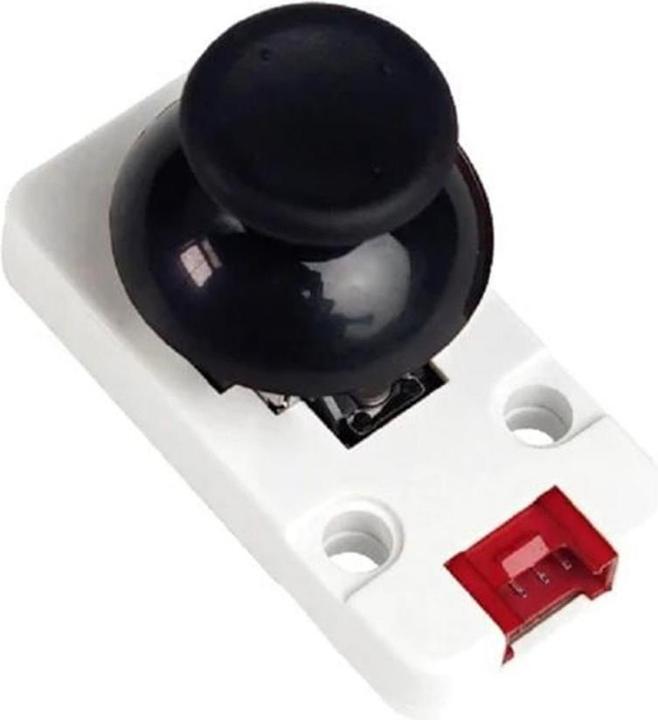

This joystick features two 10k potentiometers for the X and Y axes, which represent 2D movement through analog signals. The joystick also includes a push button that can be used for special applications. Thus, this joystick unit can output X-Y movement signals in both directions and in the Z direction. A MEGA8A is integrated into the joystick unit, which evaluates the analog signals from the joystick and then outputs them via I2C. This allows you to query the current values of the joystick over I2C. This unit communicates with the M5Core via the Grove A interface, and the I2C address is 0x52.

Technical details:
Manufacturer: M5Stack
Manufacturer SKU: U024-C
X, Y direction values: 10 to 250
Z direction values: 1 = pressed

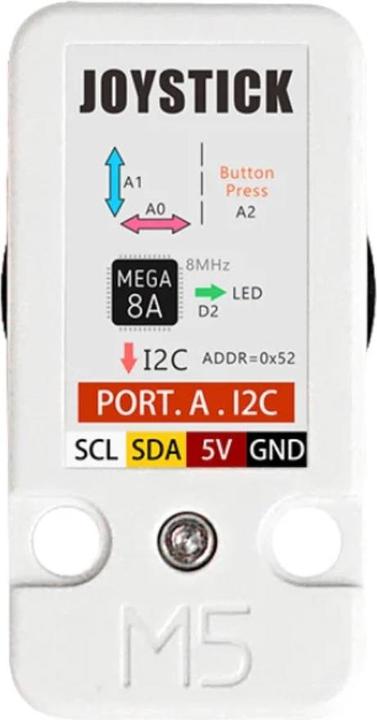

Connector type: PH2.0 4 Pin
Interface: Grove A
Used pins: G22, G21 (SCL, SDA)
Dimensions: 48 x 24 x 32 mm
Weight: 29 g

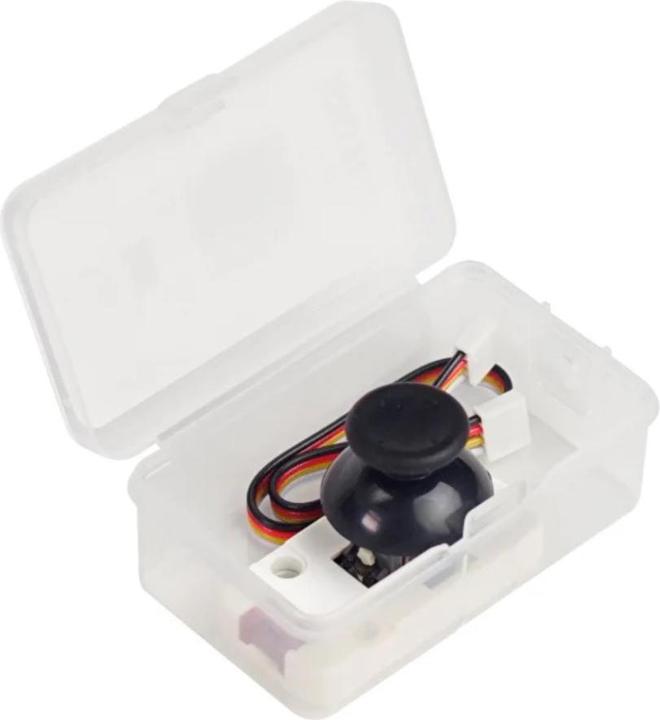

Included in the package:
1x M5Stack I2C Joystick Unit V1.1 (MEGA8A)
1x Grove cable 20 cm
1x Storage box.

Key specifications

Development board type
Kit
Item number
24083824

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Manufacturer no.
U024-C
Release date
6.2.2023

Development board properties

Development board type
Kit

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
GROVE cable 20cm, Joystick, Storage box

Product dimensions

Length
48 mm
Width
24 mm
Height
32 mm
Weight
11 g
