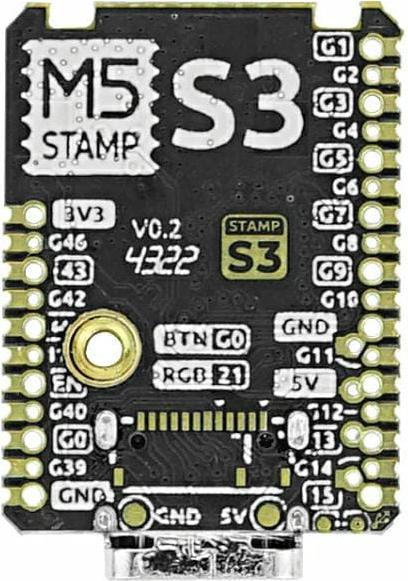

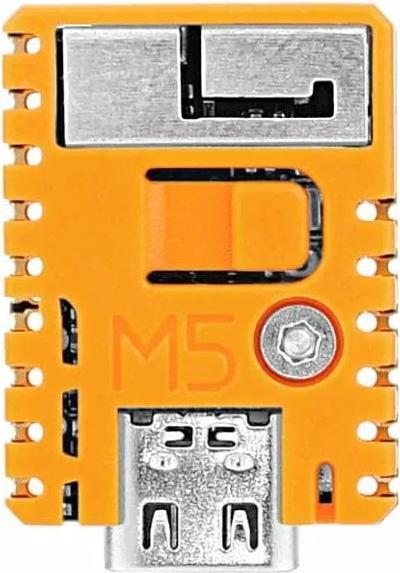

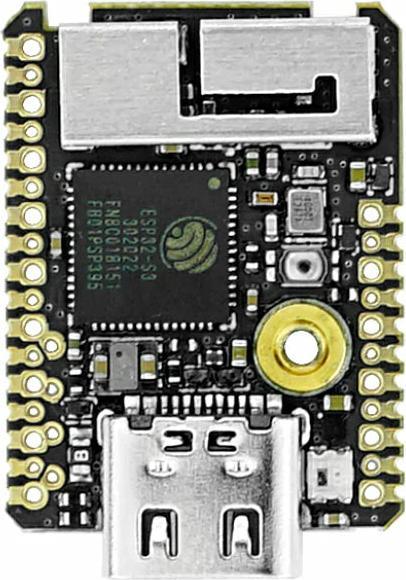

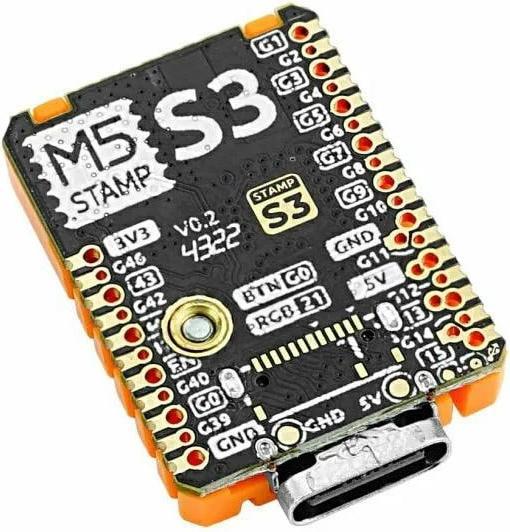

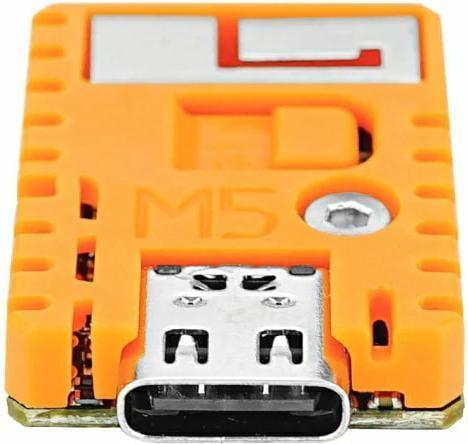

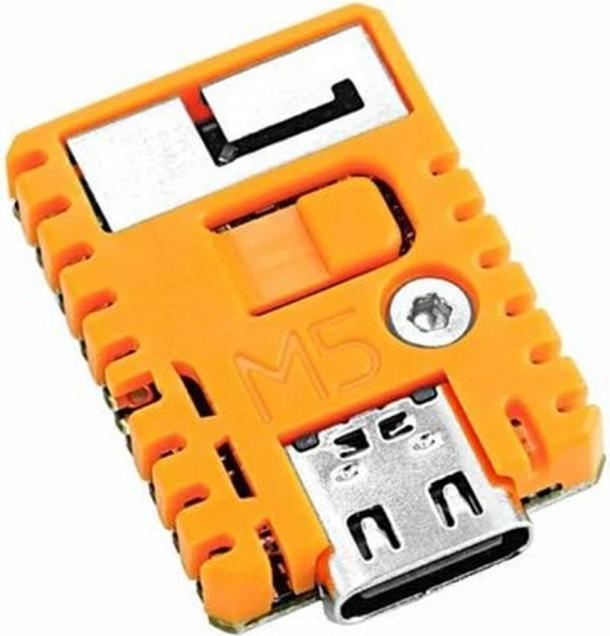

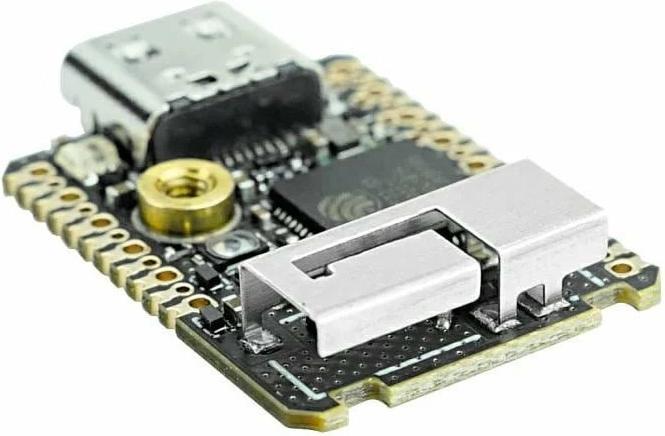

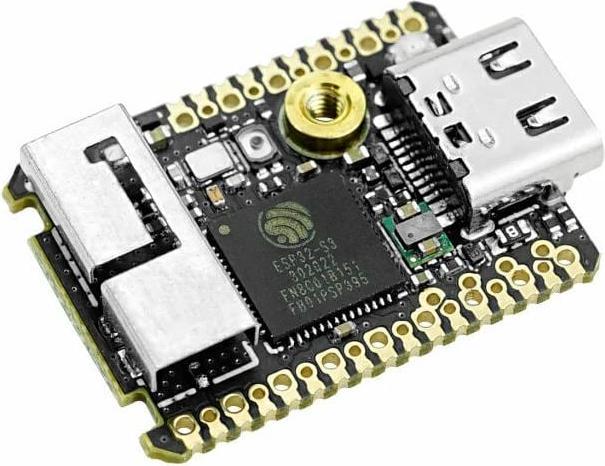

M5Stack Developer board M5StampS3 with 1.27 header pin

Save CHF2.20
Ratings
Delivered between Thu, 18.12. and Fri, 19.12.
Only 4 pieces in stock at supplier
Free shipping starting at 50.–

Product details

The M5StampS3 ESP32S3 module with 1.27 header pin is a highly integrated solution for your embedded projects. Equipped with the powerful ESP32-S3FN8 chip, it offers 8 MB of SPI flash memory and a dual-core processor with speeds of up to 240 MHz. Its compact design provides 23 GPIOs and supports a variety of interfaces, giving you maximum flexibility for your IoT and embedded systems. With its low power consumption and versatile expansion options, it is ideal for smart home applications, wearables, and medical devices.

Recommended Accessories:
M5StampS3 BreakOut PIN 1.27 mm
M5StampS3 GroveBreakOut

Features:
Minimal system board
Integrated programmable RGB LEDs and buttons
1.27 mm pin header
Supports UIFlow graphical programming

Technical Details:
Manufacturer: M5Stack
Manufacturer SKU: S007-PIN127
MCU: ESP32-S3FN8
Flash Memory: 8 MB
Input Voltage: 5 V
Module Resource Interface: Touch sensor, SD/SDIO/MMC master controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter
IO Interface: G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46
Pin Header Pitch: 1.27 mm
Operating Temperature: 0 °C to 40 °C
Dimensions: 26 x 18 x 4.6 mm
Weight: 7.5 g

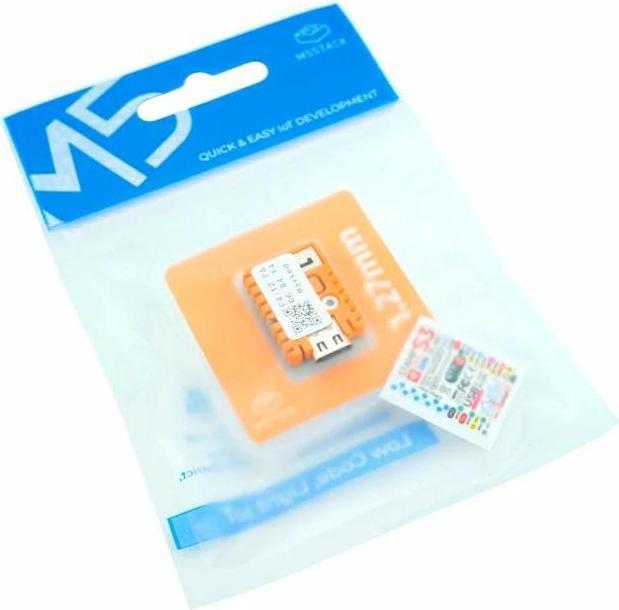

Delivery Contents:
1x M5StampS3 ESP32S3 module with 1.27 header pin
1x Pin-map sticker.

Key specifications

Development board type
Kit
Processor type
ESP32
Memory
8 MB
Clock speed
2400 MHz
Number of cores
1
Item number
39115596

General information

Manufacturer
M5Stack
Category
Development boards + Kits
Manufacturer no.
S007-PIN127
Release date
2.10.2023
Sales rank in Category Development boards + Kits
202 of 2911

Target group

Target group
Adults

Development board properties

Development board type
Kit
Processor type
ESP32
Clock speed
2400 MHz
Memory
8 MB
Number of cores
1
Flash memory
8000 kB

Power supply

Power supply
Electrical connection
Operating voltage
5 V

Wireless transmission

Wireless transmission
Wi-Fi

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 x M5StampS3 PIN1.27, 1 x screen-printed sticker

Product dimensions

Length
26 mm
Width
18 mm
Height
4.60 mm
Weight
3.10 g

Package dimensions

Length
7.50 cm
Width
4.60 cm
Height
1.50 cm
Weight
8 g
