M5Stack Atom Lite ESP32

The M5Stack ATOM Lite is the most compact development board for the ESP32, measuring just 24 x 24 mm. It features an ESP32-PICO-D4 microcontroller that integrates WiFi and Bluetooth technology and has 4 MB of built-in SPI flash memory. The ATOM board includes an infrared LED, a button, an RGB LED, and a PH2.0 interface. The integrated USB Type-C interface allows for quick uploading and execution of programs. An M2 screw hole is provided on the back for easy mounting of the ATOM. Various I/O ports are accessible on the back of the ATOM via a 2.54-pin header, which can be easily connected with a Dupont cable. The ATOM can be programmed using MicroPython or the Arduino IDE.

The Atom Matrix features the following sensors and actuators:

• IR transmitter
• 1 button
• 1 reset button
• 1 RGB LED
• Grove interface

Supported development platforms: UIFlow, MicroPython, Arduino

Technical details:

• Manufacturer: M5Stack
• Microcontroller: ESP32 PICO-based
• USB connection: USB Type-C
• USB supply voltage: 5V
• Maximum logic level voltage: 3.3V
• Dual-core Tensilica LX6 microprocessor
• Up to 240 MHz clock frequency
• 4 MB flash memory
• 520 kB internal SRAM
• Integrated 802.11 b/g/n WiFi transceiver
• Integrated dual-mode Bluetooth (BLE and Classic)
• 6 GPIO header RM2.54
• 4-pin PH2.0 Grove interface
• 1 programmable button
• 1 infrared transmitter
• 1 reset button
• 1 RGB LED

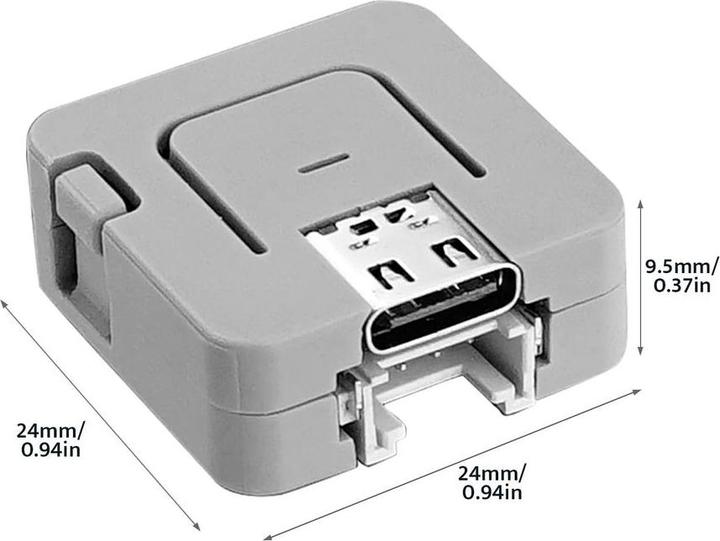

• Dimensions: 24 x 24 x 10 mm
• Weight: 10.2 g

Included in the package:
1 M5Stack ATOM Lite ESP32 Development Kit.
