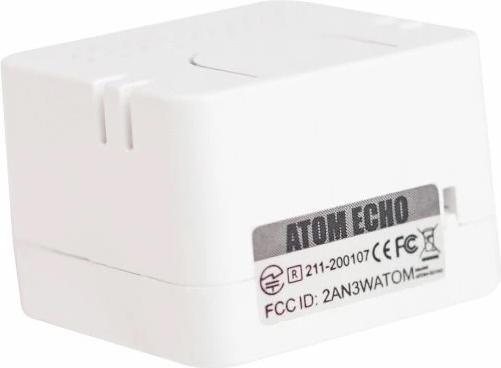

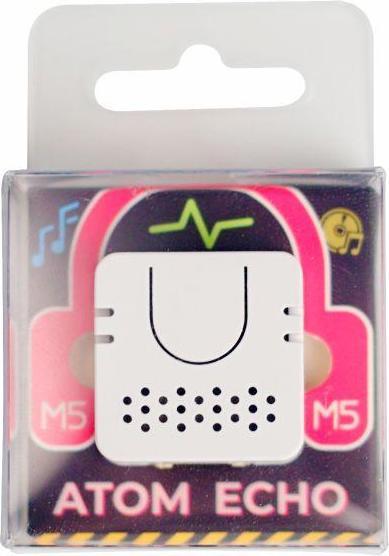

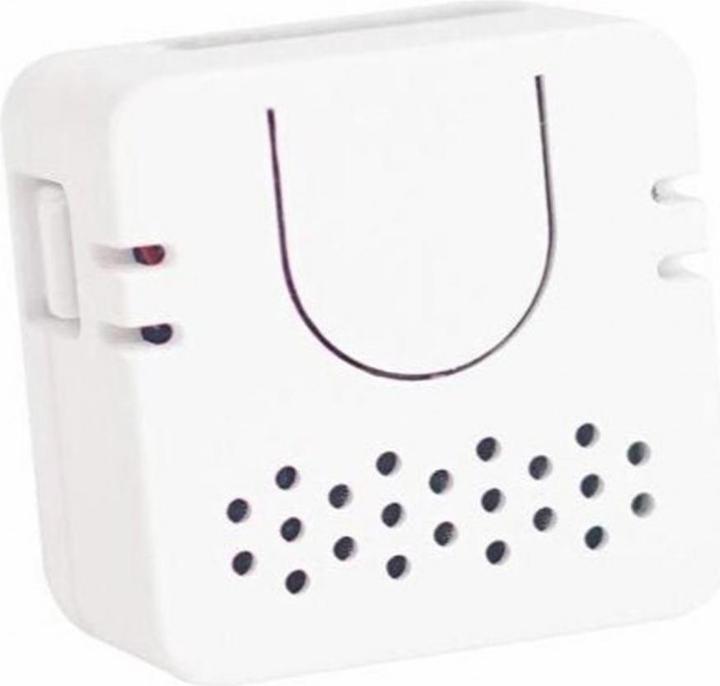

M5Stack ATOM ECHO Smart Speaker Dev Kit

Atom Echo is a programmable smart speaker based on the M5ATOM design ESP32. Its form factor is very compact, with dimensions of just 24 x 24 x 17 mm. Music can be played via the Bluetooth capabilities of the ESP32 from a mobile phone or tablet. The device can be programmed to access AWS, Baidu, and other cloud platforms. The built-in microphone and speaker enable voice interactions, giving the M5AtomECHO certain AI capabilities and allowing for simple voice control. The speaker is equipped with an RGB LED (SK6812) that visually indicates the connection status. It is not only used as a Bluetooth speaker but also offers the control capabilities of the Atom series. Additionally, sensors can be connected via the Grove interface. G21/G25 can only be used for general I/O and do not support I2C and UART.

Features:

• Lightweight and compact
• STT services supported
• Based on ESP32, supports A2DP, BLE 4.0
• 2.4G WiFi IEEE 802.11b/g/n
• Built-in microphone and speaker
• RGB LED status indicator
• Grove expansion interface
• Recording and playback
• Programmable button
• Supported programming platforms: Arduino, ESP-IDF/ADF

Technical Details:

• Manufacturer: M5Stack
• Manufacturer SKU: C008-C
• Microprocessor: ESP32-PICO-D4, 240 MHz, Dual Core, BLE, Wi-Fi
• Flash: 4 Mbyte
• Interface: 1x IR-TX, 1x function button, 1x reset button
• RGB LED: SK6812
• Speaker: 0.5W NS4168 I2S
• Microphone: SPM1423 PDM

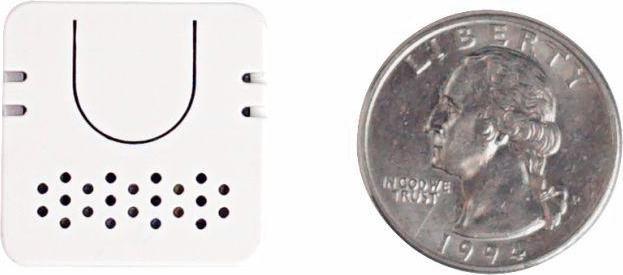

• Dimensions: 24 x 24 x 17 mm
• Weight: 15 g

Included in the package:
1x Atom Echo Smart Speaker Development Kit.
