Product details

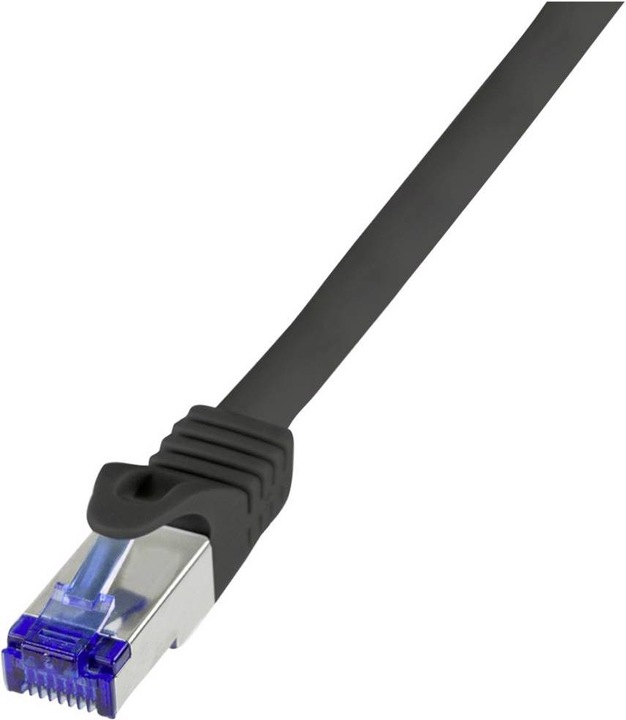

The certified LogiLink Cat.6A patch cable is ideally suited for data transmissions of up to 10 Gigabit Ethernet and transmission frequencies of up to 500 MHz. The jacket is halogen-free and flame-retardant, the copper wires are shielded in pairs, and the overall shield is made of copper braid. The shielded RJ45 connectors are equipped with a molded, very slim strain relief and latch protection.
Patch cable type | Copper cable |
Contact assignment | straight |
Item number | 17934725 |
Manufacturer | LogiLink |
Category | Network cables |
Manufacturer no. | C6A143S |
Release date | 9.11.2021 |
Cable colour | Black |
Material | Copper braiding |
Material of the isolation | HFFR |
Connection A | RJ45 |
Connection B | RJ45 |
Cable Application | Network |
Cable design | Round |
Plug type | Flat |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 26 |
Frequency | 500 MHz |
Temperature range | -20° - 75 °C |
Patch cable type | Copper cable |
Patch cable Features | Halogen-free |
Max. data transfer rate | 1.25 GB/s |
Cable category | CAT6a |
Contact assignment | straight |
Shield | S/FTP |
Number of fibres | 8 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1x Cat.6A patch cable |
Diameter | 6 mm |
Length | 50 m |
Width | 6 mm |
Weight | 1547000 g |
Length | 26.10 cm |
Width | 24.90 cm |
Height | 10 cm |
Weight | 1.63 kg |
