Lilygo TTGO T8 V1.8 ESP32-Wrover Development Board

Ratings
Delivered between Wed, 14.5. and Thu, 15.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

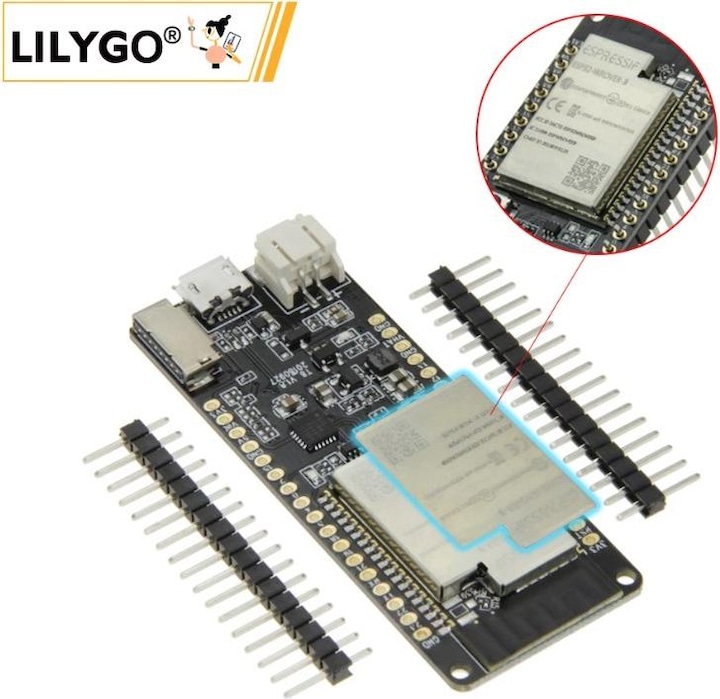

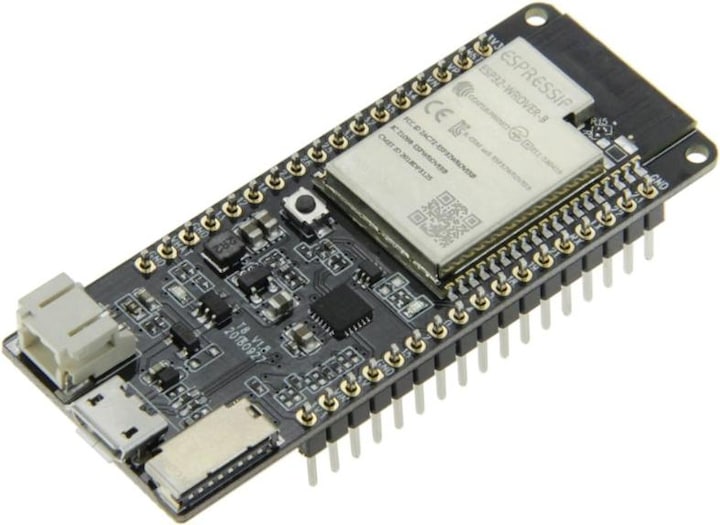

This is a development board from Lilygo based on the ESPRESSIF-ESP32-Wrover chipset. A 240 MHz dual-core 32-bit Xtensa LX6 CPU provides enough power for demanding applications. The board is equipped with all common interface connections such as UART, SPI, SDIO, PWM, I2S, I2C, IRGPIO, and ADC. Additionally, it features an SD card slot, RTC, touch sensor connection, and onboard USB to TTL. The board is powered and programmed via Micro USB. Thanks to the ESP32, the T8 offers full Wi-Fi and Bluetooth connectivity.

Recommended accessories:
Li-Ion battery 3000mA 18650 with protection circuitry and connector
LiPo battery 1500mAh JST 2.0 / Lithium Ion Polymer

Features:
ESPRESSIF-ESP32-Wrover chipset
Dual-core 240 MHz Xtensa LX6 CPU
CH9102 USB to Serial converter
Reset button
JST PH2.0 LiPo connector with TP4054 battery charging chip
Wi-Fi and Bluetooth connectivity

Technical details:
Manufacturer: Lilygo
Manufacturer SKU: Q131
Chipset: ESPRESSIF-ESP32-Wrover
CPU: Dual-core 240 MHz Xtensa LX6
Flash: QSPI Flash 4M / 8MB PSRAM
SRAM: 520 kB
RTC: 40 MHz oscillator
Operating voltage: 2.3V-3.6V
Operating current: 35 mA

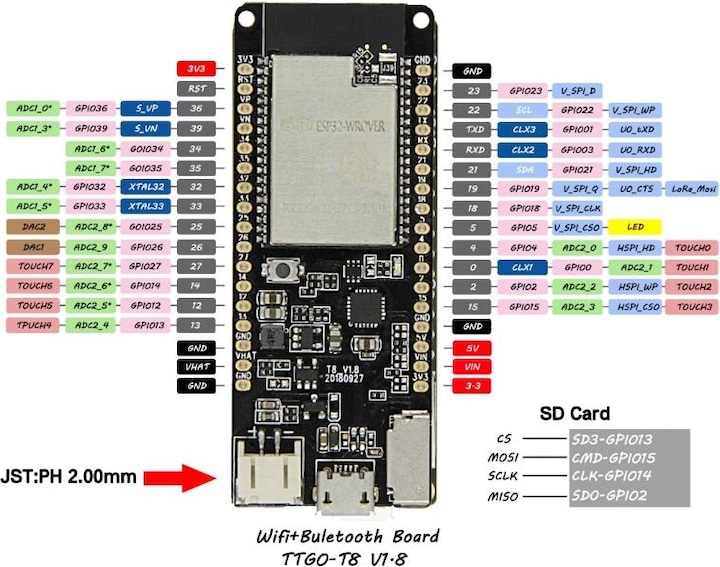

Interfaces: SD card, UART, SPI, SDIO, LED PWM, TV PWM, I2S, I2C, IRGPIO, touch sensor, ADC, DACLNA preamplifier
USB to TTL chip: CH9102F QFN24
Dimensions: 65 x 26 x 10 mm
Weight: 11 g

Included in delivery:

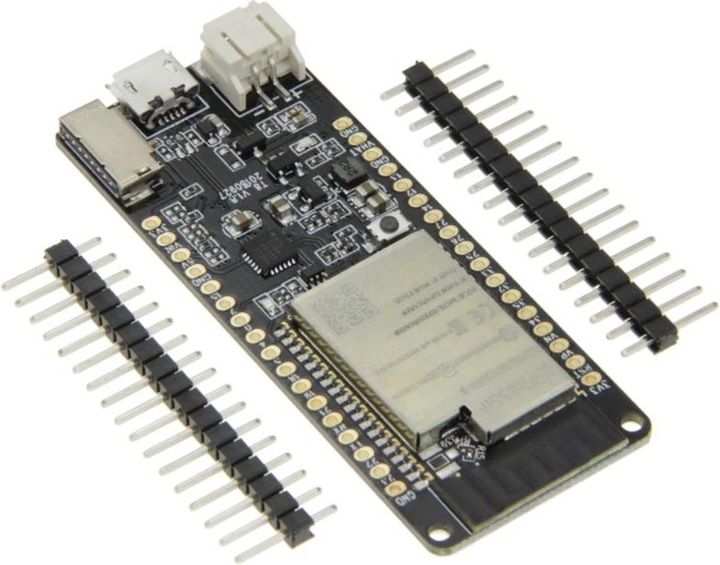

1x LilyGo TTGO T8 V1.8 ESP32-Wrover development board
2x 17-pin header strips.

Key specifications

Development board type
Kit
Memory
0.52 MB
Clock speed
240 MHz
Item number
25075533

General information

Manufacturer
Lilygo
Category
Development boards + Kits
Release date
7.4.2023

Development board properties

Development board type
Kit
Clock speed
240 MHz
Memory
0.52 MB
Flash memory
8000 kB

Power supply

Operating voltage
3.60 V

Wireless transmission

Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x LilyGo TTGO T8 V1.8 ESP32-Wrover Development Board, 2x 17pin pin headers

Product dimensions

Length
26 mm
Width
65 mm
Height
10 mm
Weight
11 g
