Lilygo TTGO T-Motor ESP32 5-12V 2.8A TMC2209 Stepper Motor Driver Kit with OLED Display and Housing
Supplied by
Free shipping starting at 50.–

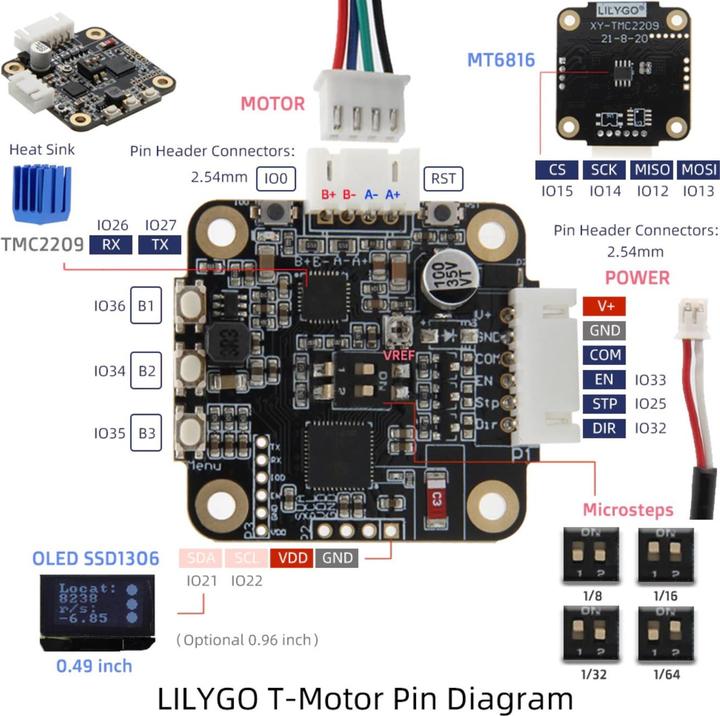

This is a TMC2209 5-12V motor driver with an MT6816 360° encoder and ESP32 MCU. The driver has a peak current of up to 2.8 A. Microsteps can be adjusted using two dip switches between 1/8, 1/16, 1/32, and 1/64. The kit comes with the driver board and a 0.49-inch OLED display, as well as a plastic housing. The board features a reset and boot button, along with three programmable buttons. The module can communicate via all common interfaces such as UART, I2C, SPI, CAN, I2S, and SDIO. Thanks to the ESP32, it also offers full Bluetooth and Wi-Fi connectivity.
Note: The display is not pre-assembled and must be soldered using the included 4-pin header.
Recommended Accessories:
12V DC 4000mA power supply AC/DC adapter with 5.5 mm/2.1 mm plug
M5Stack ESP32 Downloader Kit
Features:
Technical Details:
Package Contents:
Development board type | Kit |
Item number | 25075527 |
Manufacturer | Lilygo |
Category | Development boards + Kits |
Release date | 6.4.2023 |
Development board type | Kit |
Flash memory | 4000 kB |
Power supply | Electrical connection |
Operating voltage | 12 V |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
Bluetooth version | 4.2 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

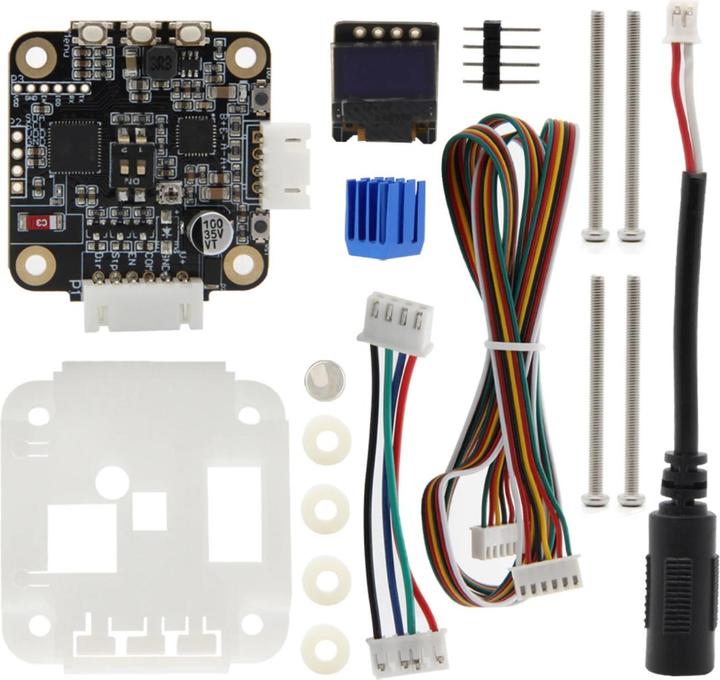

Scope of delivery | 1x 0.49 inch OLED display, 1x 4pin pin header, 1x 4pin to 6pin adapter cable, 1x aluminium heat sink, 1x DC barrel to PH2.0 adapter cable, 1x housing, 1x LilyGo TTGO T-Motor ESP32 5-12V 2.8A TMC2209 stepper motor driver kit with OLED display and housing, 4x M3x40 screw, 4x plastic spacer |
Additionally required (not included) | 12V DC 4000mA power supply AC/DC adapter 5.5mm/2.1mm plug |
Weight | 100 g |
