Lilygo TTGO T-BAT 18650 Battery Compartment with CN3065 Solar Power Manager

Ratings
Delivered Mon, 23.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

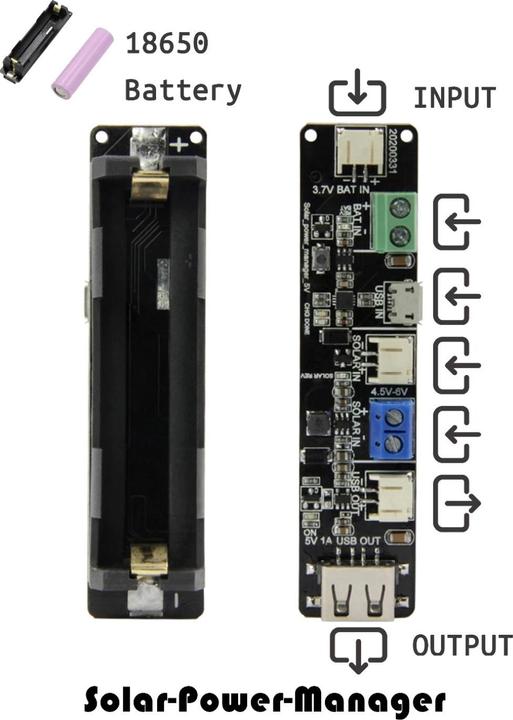

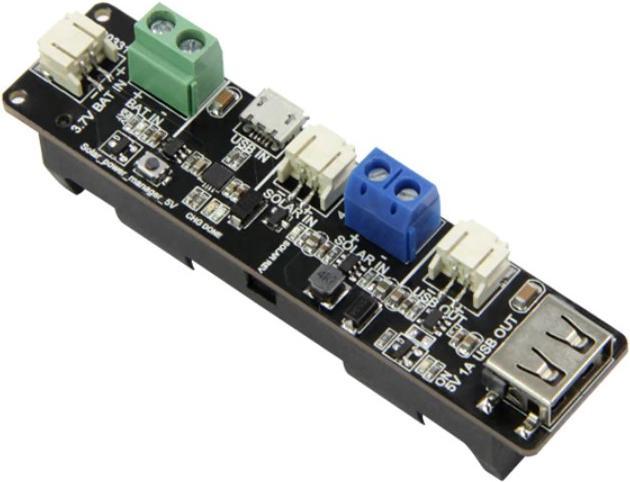

This compact module from Lilygo combines a CN3065 solar charge controller and a 18650 battery compartment. In total, the module has 5x different inputs with which the battery can be charged. A 5V solar panel can be connected either via microUSB, PH2.0 or crimp terminal. There is also a 3.7V PH2.0 battery and crimp input. Power can be drawn from the battery either via the 5V 1A USB-A output or a PH2.0 output. The charge controller has low-voltage protection and automatically switches to deep sleep mode when the charge current is below 3µA.

Recommended accessories:
Li-Ion battery 3.7V 3200mA NCR18650B 18650

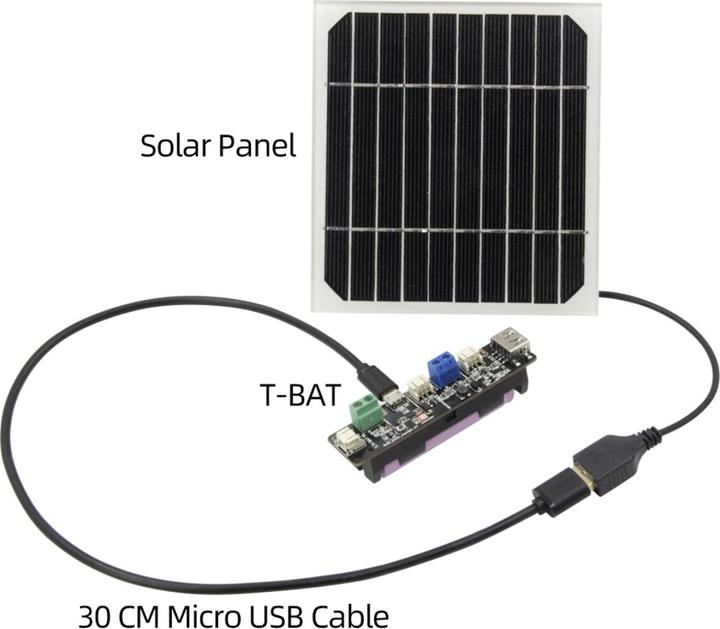

5V 1A monocrystalline solar panel 6W with USB connection
Solar cell 5V 200mA 1W 110x60mm

Features:

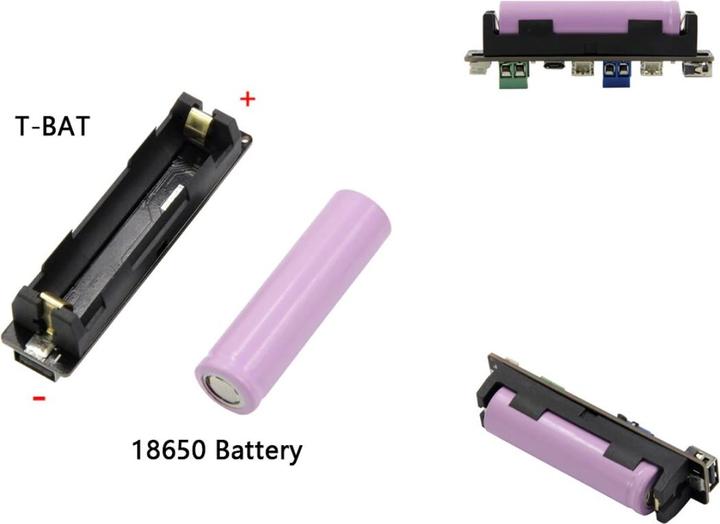

18650 battery compartment
CN3065 solar charge controller
Low voltage protection
Automatic Deep Sleep Mode

Technical Details:
Manufacturer: Lilygo
Manufacturer SKU: H435
Chip: CN3065
Battery type: 3.7V 18650 Li-Ion

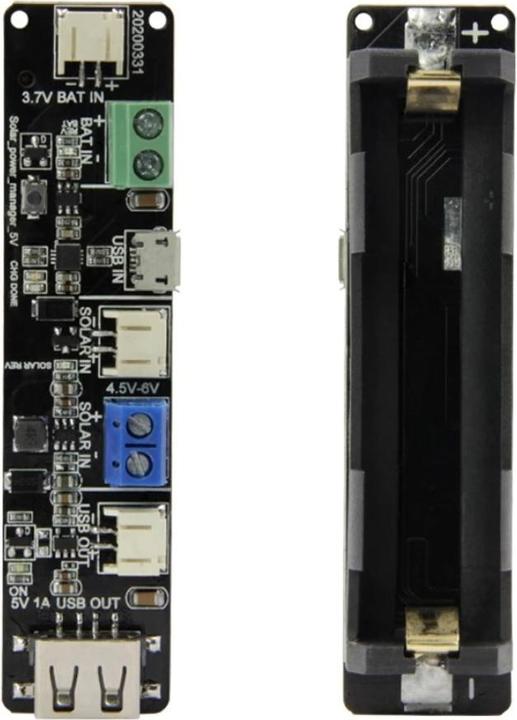

Inputs:
5V micro USB
Solar In 4.5-6V PH2.0
Solar In 4.5-6V Screw Terminal
Outputs:
5V 1A USB-A
5V PH2.0
Dimension: 90 x 20 x 25mm
Weight: 24g

Scope of delivery:
1x LilyGo TTGO T-BAT 18650 battery case with CN3065 solar power manager.

Key specifications

Development board type
Kit
Clock speed
18650 MHz
Item number
25075522

General information

Manufacturer
Lilygo
Category
Development boards + Kits
Release date
6.4.2023

Development board properties

Development board type
Kit
Clock speed
18650 MHz
Flash memory
18650 kB

Power supply

Power supply
Solar panel
Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x LilyGo TTGO T-BAT 18650 battery compartment with CN3065 Solar Power Manager
Additionally required (not included)
1x Li-Ion battery 3.7V 3200mA NCR18650B 18650, 5V 1A mono-crystalline solar panel 6W with USB connection, Solar cell 5V 200mA 1W 110x60mm

Product dimensions

Length
90 mm
Width
20 mm
Height
25 mm
Weight
24 g
