Lilygo T-Echo Braun TTGO Meshtastic 868MHz

Delivered between Tue, 27.5. and Wed, 28.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

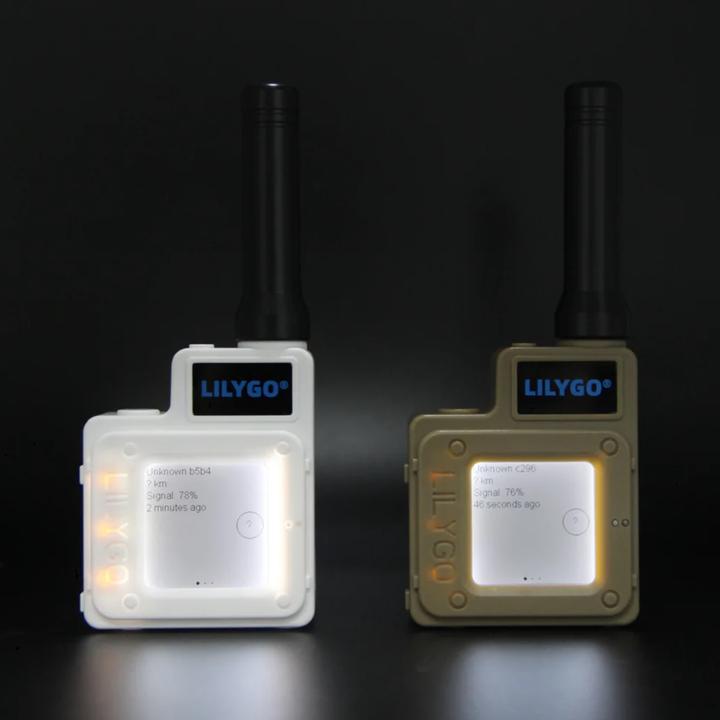

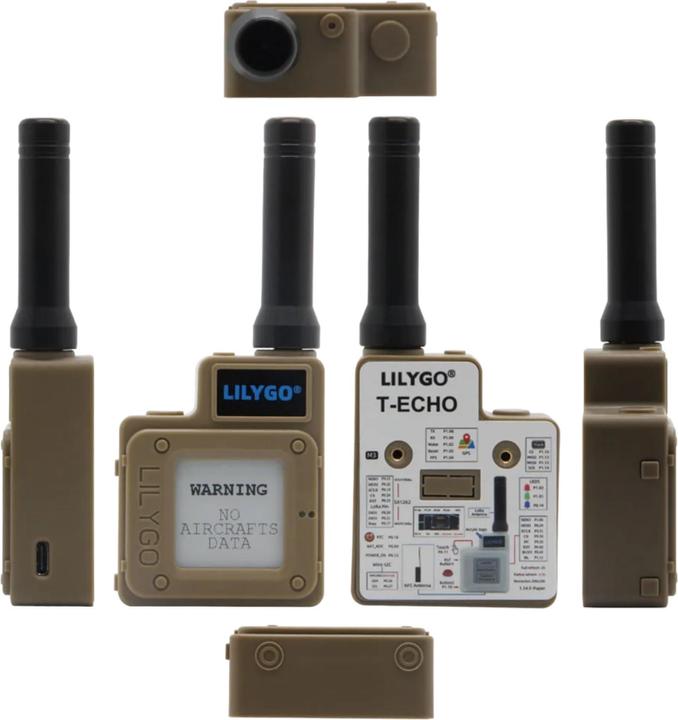

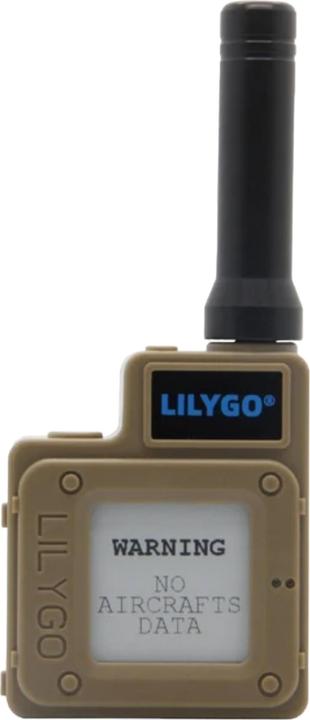

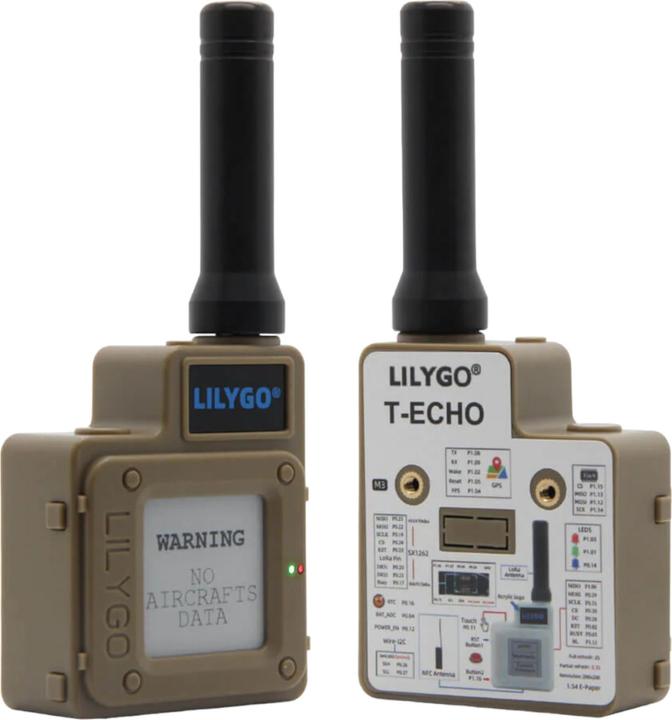

This is a LoRaWAN APRS Tracker from LilyGo. The T-Echo is an evolution of the T-Beam series. The T-Echo features an L76K multi-system GNSS module that measures position with an accuracy of 2 meters and then transmits via an SX1262 LoRa transceiver. The integrated nRF52840 MCU provides Bluetooth 5.0, Bluetooth Mesh, Zigbee, and ANT connectivity. It can also communicate through all common interfaces such as UART, SPI, I2C, I2S, QSPI, TWI, and PDM. A 1.54-inch E-Paper display shows all necessary information with very low power consumption. Together with the integrated 850 mAh Li-Po battery, this allows for a significantly longer runtime compared to an OLED display. The module has an NFC sensor on the underside, which allows the E-Paper display to be conveniently updated with a mobile phone. The module is programmed via a USB-C port.

Recommended accessories:
Purecrea LoRa 868 MHz antenna

Features:

  • 868 MHz LoRa APRS Tracker
  • Bluetooth 5.0, Bluetooth Mesh, Zigbee, ANT, 802.15.4, and Thread connectivity
  • L76K GPS module, position measurement with 2 m accuracy
  • 1.54-inch low power E-Paper display
  • Reset, boot, and 1 programmable touch button
  • NFC sensor for display updates
  • Sturdy ABS housing

Technical details:

  • Manufacturer: LilyGo
  • Manufacturer SKU: K159
  • MCU: nRF52840
  • Flash: 2 MB
  • RAM: 256 KB
  • Bus interfaces: UART, SPI, TWI, PDM, I2S, QSPI
  • Wireless connectivity: Bluetooth 5.0, Bluetooth Mesh, Zigbee, ANT, 802.15.4, and Thread
  • LoRa transceiver: SX1262
  • Frequency: EU868 MHz
  • Display size: 1.54 inches
  • Grayscale: 2
  • Full refresh: 2 s
  • Resolution: 200 x 200
  • RTC chip: PCF8563
  • GPS module: L76K
  • Position tolerance: 2 m
  • USB interface: USB-C
  • Touch button: TTP223
  • Expansion: 10-pin BTB expansion socket

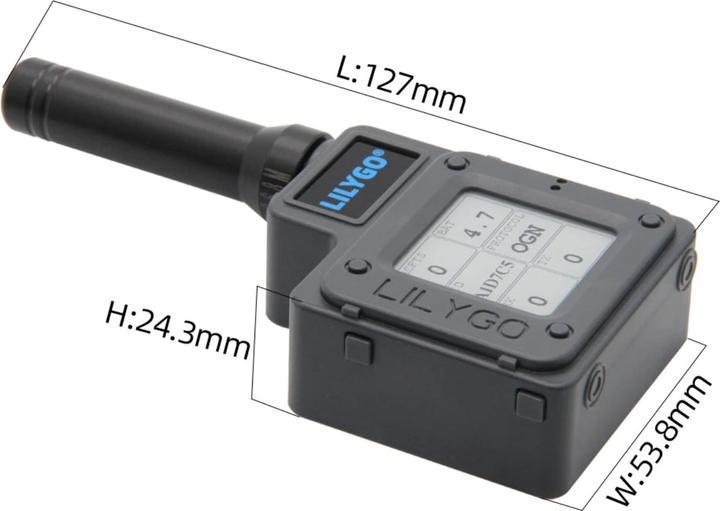

  • Dimensions: 66 x 53.5 x 24 mm
  • Weight: 131 g

Included in delivery:

  • 1x LilyGo T-Echo Brown TTGO Meshtastic 868 MHz
  • 1x 868 MHz antenna
  • 1x 30 cm USB-C cable.

Key specifications

Development board type
Board
Memory
0.26 MB
Processor family
ARM
Item number
46494385

General information

Manufacturer
Lilygo
Category
Development boards + Kits
Release date
13.6.2024
Sales rank in Category Development boards + Kits
326 of 2764

Development board properties

Development board type
Board
Processor family
ARM
Memory
0.26 MB
Flash memory
2000 kB

Power supply

Power supply
Rechargeable battery operated

Wireless transmission

Wireless transmission
Bluetooth
Bluetooth version
5.0

Connections

USB ports
USB-C
Exact USB ports
USB-C 2.0 (1x)
Additional connections
I2SSPITWIUART

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 868MHz antenna1x LilyGo T-Echo Braun TTGO Meshtastic 868MHz1x USB-C cable 30cm

Product dimensions

Length
66 mm
Width
53.50 mm
Height
24 mm
Weight
131 g
