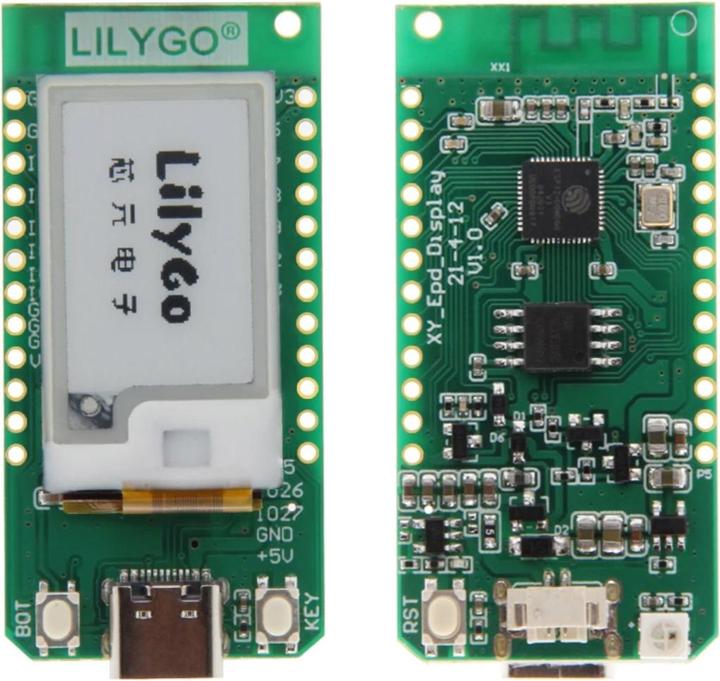

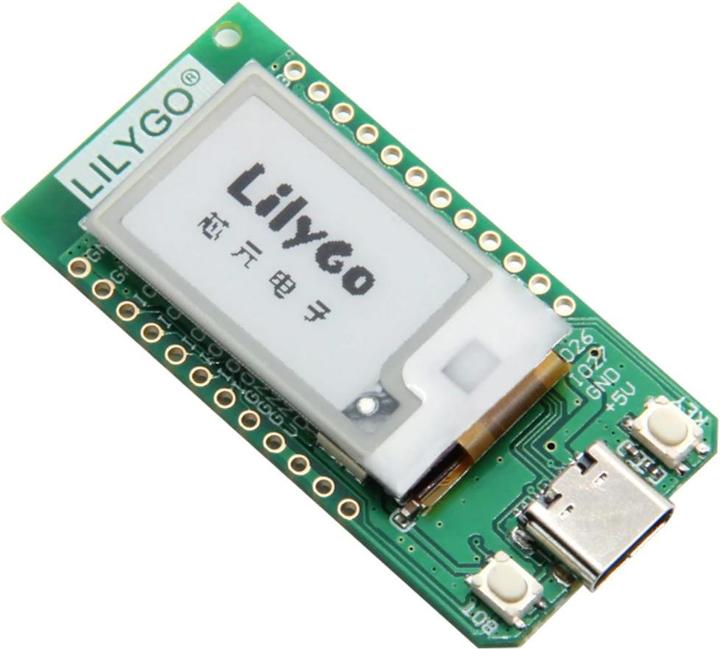

Lilygo T-Dispay E-paper ESP32 module with 1.02 inch display

This is a 1.02-inch E-Paper display module with an ESP32-based controller. The integrated ESP32-D0WDQ6-V3 features full WiFi and Bluetooth connectivity. The module is compatible with the T-U2T automatic downloader, which includes a USB-C port. E-Ink displays can continuously show information with almost no power consumption. Power is only drawn during the refresh of the image. This makes them particularly suitable for applications where the same image is displayed for extended periods, such as price tags or shelf labels.

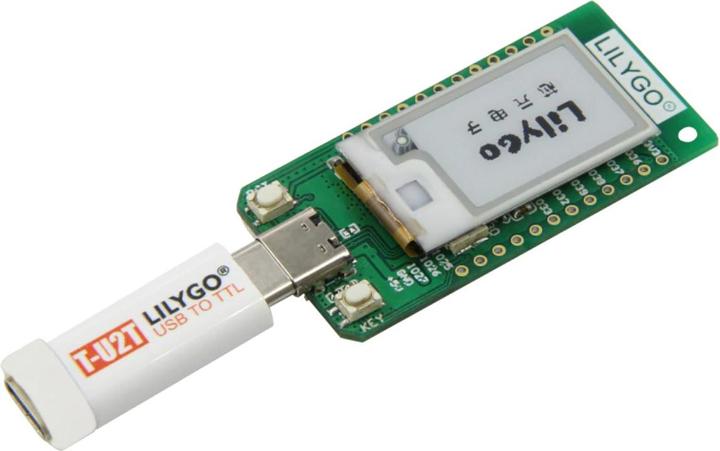

Note: Since the module does not have a USB to Serial chip, you will need a T-U2T USB to TTL adapter for programming. If you have already purchased this adapter with another display, you can of course use it for this one as well. The T-U2T USB to TTL automatic downloader is not included with the display.

Recommended Accessories:
LilyGo TTGO T-U2T USB to TTL Programmer CH9102
LiPo Battery 1000mAh JST 1.25 / Lithium Ion Polymer for LoRa TTGO

Features:
1.02-inch T5 E-Ink Display
WiFi and Bluetooth connectivity
Onboard WiFi antenna
USB-C
Low power consumption in sleep mode of only 15uA
JST SH1.25 LiPo connection with TP4054 battery charging chip

Technical Details:
Manufacturer: Lilygo
Manufacturer SKU: H495
Display Size: 1.02 inches
Controller: ESP32-D0WDQ6-V3
Battery Chip: TP4054
Connectivity: WiFi, Bluetooth, USB-C
Flash: 4MB
Dimensions: 53 x 25 x 5.5 mm
Weight: 20 g

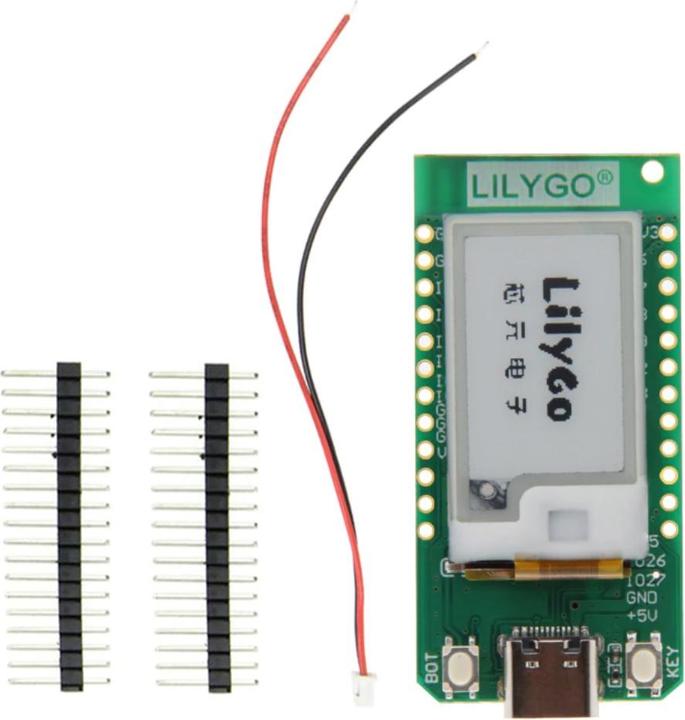

Package Contents:
1x LilyGo T-Display E-Paper ESP32 Module with 1.02-inch Display
1x JST 2-pin Cable
2x 12-pin Header.
