Lilygo T-Camera S3 OV2640 with housing

Ratings
Delivered between Wed, 11.6. and Thu, 12.6.
7 items in stock at third-party supplier
Supplied by

Product details

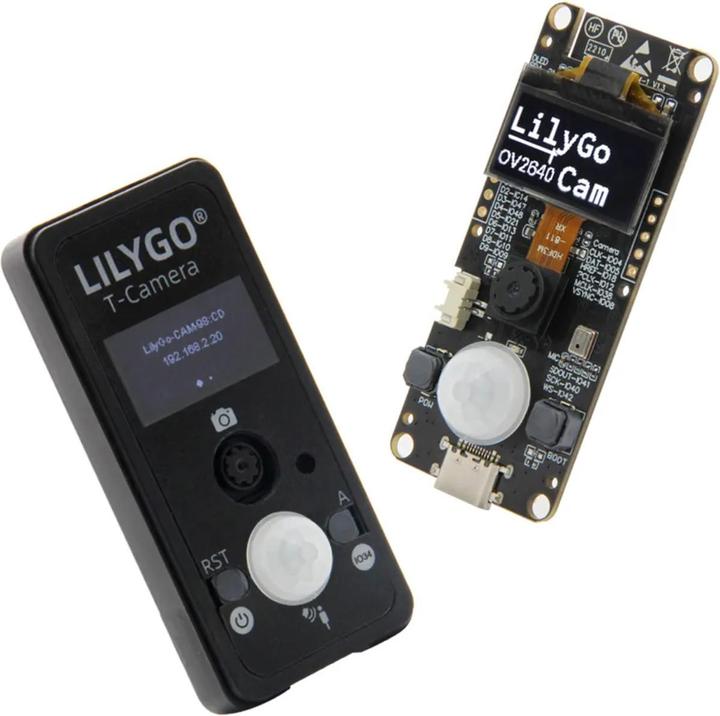

The ESP32-S3 OV2640 T-Camera with case is a high-quality camera from Lilygo with a resolution of 1622 x 1200 pixels. In addition to the camera, the board also features a microphone, a PIR motion sensor, and an OLED display to facilitate operation. Data can be easily uploaded or downloaded using the USB-C port or the JST 2.0mm 5PIN connector with a microcontroller like Arduino or Raspberry Pi.

Features:

  • Microphone
  • PIR motion sensor
  • OLED display

Technical Details:

  • Manufacturer: Lilygo
  • Manufacturer SKU: K207
  • Chip: ESP32-S3-WROOM-1
  • MCU: ESP32-S3-S3FN16R8 Dual-Core Microprocessor
  • PSRAM: 8MB
  • Flash Memory: 16MB
  • Wireless Connectivity: Wi-Fi 802.11, BLE 5 + BT Mesh
  • Programming Platform: Arduino IDE, VS-Code

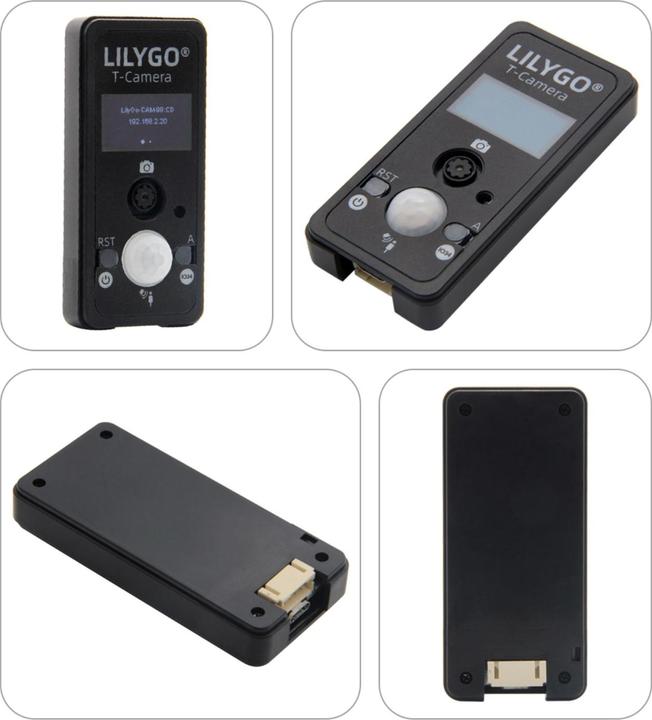

  • Compatible: T-Camera case
  • Onboard: Boot button, Reset button, Power button, PIR (Passive Infrared Sensor), Microphone, PMU, OLED display
  • Connectors: JST-GH 1.25mm (Power), JST-PH 2.0mm 5-Wire (Data), USB-Type-C (Data)

Camera:

  • Type: OV2640
  • Voltage: 3.3V
  • Pixels: 2 million
  • Resolution: UXGA 1622 x 1200 pixels

Display:

  • Type: OLED SSD1306
  • Interface: I2C
  • ISC-PINs: SDA IO07, SCL IO06
  • Resolution: 128 x 64 pixels
  • Diagonal: 0.96 inches

Dimensions (without case): 69 x 28 x 18.5mm

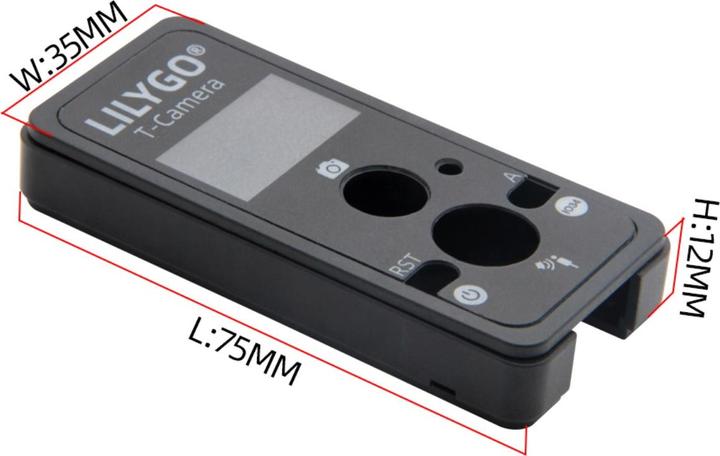

Dimensions (with case): 75 x 35 x 12mm
Weight: 50g

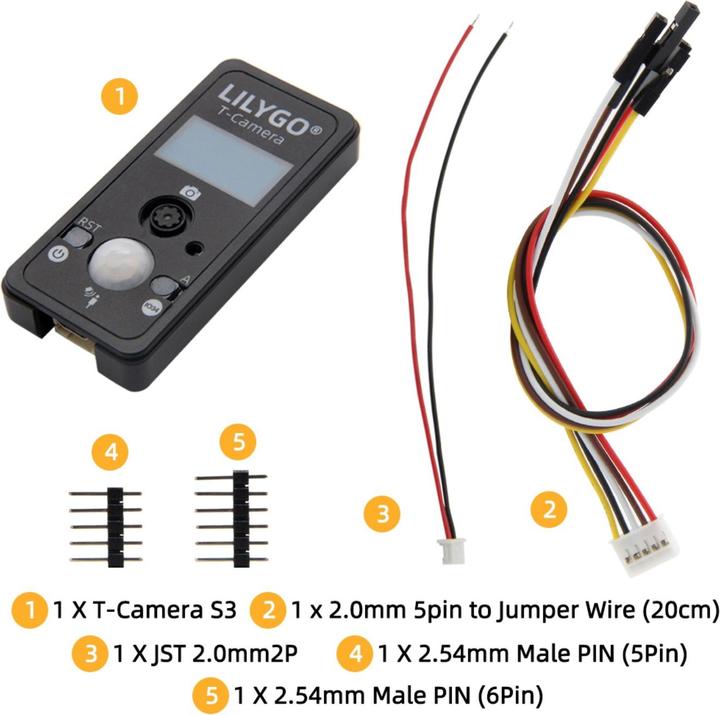

Included in the package:

  • 1x LilyGo T-Camera S3 OV2640 with case
  • 1x 4-pin header
  • 1x 6-pin header
  • 1x JST-GH 1.25mm connection cable
  • 1x 2.0mm 5PIN to Dupont 2.54 Female 20cm.

Key specifications

Memory
8 MB
Processor type
ESP32
Item number
37122692

General information

Manufacturer
Lilygo
Category
Development boards + Kits
Release date
20.7.2023

Development board properties

Processor type
ESP32
Memory
8 MB
Flash memory
16000 kB

Power supply

Operating voltage
3.30 V

Wireless transmission

Wireless transmission
Wi-Fi

Connections

USB ports
USB-C

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 2.0mm 5PIN to Dupont 2.54 Female 20cm, 1x 4pin pin header, 1x 6pin pin header, 1x JST-GH 1.25mm connection cable, 1x LilyGo T-Camera S3 OV2640 with housing
Additionally required (not included)
1x 4pin pin header, 1x 6pin pin header

Product dimensions

Length
69 mm
Width
28 mm
Height
18.50 mm
Weight
50 g
