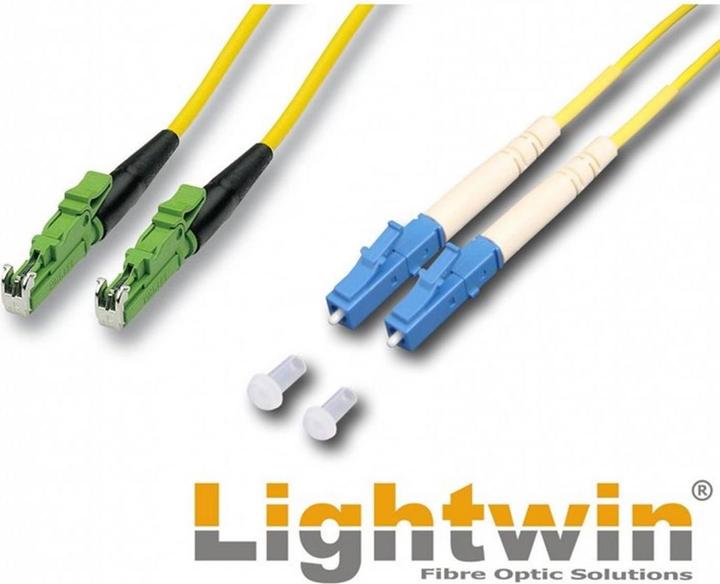

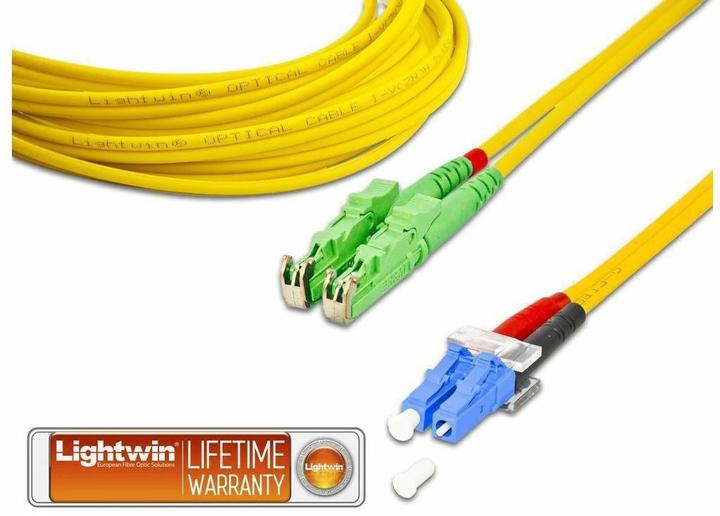

Lightwin Fiber optic duplex patch cable

Singlemode E2000/APC-LC Duplex OS2 20 m. Cable length: 20 m. Fiber quality: OS2. Duplex. Connectors: E2000/APC - LC. E2000 connector. The E2000 connector is suitable for singlemode and multimode fibers and is characterized by its high data throughput. A unique feature of the E2000 connector is a small flap that protects the user from emitted laser beams and the fiber end from dirt and damage. LC connector. The LC connector is a high-performance fiber optic connector for singlemode and multimode applications and is known for its low insertion loss. It is one of the most common types of fiber optic connectors. The design of the LC connector is based on a single-fiber ceramic ferrule with a diameter of 1.25 mm for a fiber optic cable. Due to its compact design, the LC connector allows for high packing density, making it frequently used for fiber optic switches. APC - Angled Physical Contact. Connectors with the APC designation have an end face that is not only convex but also has the fiber end surface normal tilted a few degrees relative to the fiber axis. This design allows reflected light from the core to be refracted into the air through the cladding, thereby preventing interference with data transmission.
