Lightwin Fiber optic cable

LWL (Optical Fiber)
While a conventional signal in a copper cable is susceptible to electrical interference, optical cables operate flawlessly even under the most challenging conditions. Additionally, optical fibers do not affect electronics. Due to the low attenuation of optical cables, distances of up to 550 m can be bridged.

Multimode with fiber diameter of 50/125 µm
Certain systems require higher data rates. Conventional multimode fibers can achieve data rates of up to 10 Gbps, but only over a distance of up to 84 meters. The time differences that exist in multimode fibers have been minimized in the OM3 fiber through special processes in the core area. This allows transmission distances of up to 300 m.

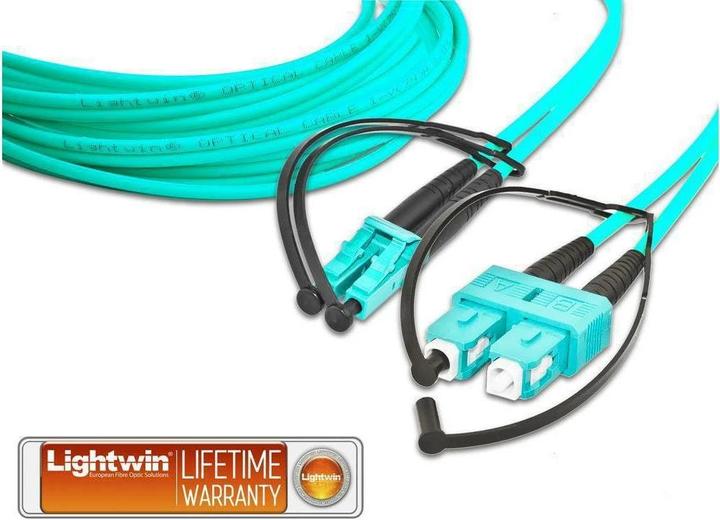

LC Connector
The LC connector is a high-performance optical fiber connector for singlemode and multimode applications, featuring an insertion loss of only 0.1 dB and a return loss of 55 dB. The design of the LC connector is based on a single-fiber ceramic ferrule with a diameter of 1.25 mm for an optical fiber.

SC Connector
Duplex SC connectors are standard connectors for fiber optic cabling. They feature automatic locking and twist protection. Their use is recommended for new installations of computer networks using fiber optic technology. The connector is suitable for both singlemode and multimode fibers. It can be used to create simplex, duplex, and multi-fiber connections.
