Krüger Clamp

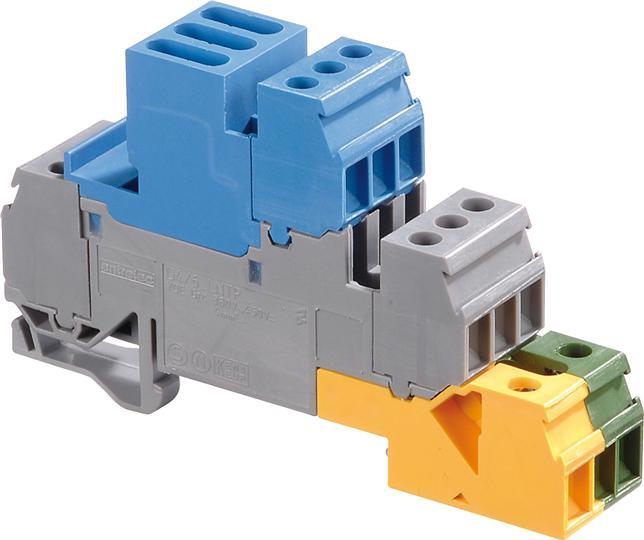

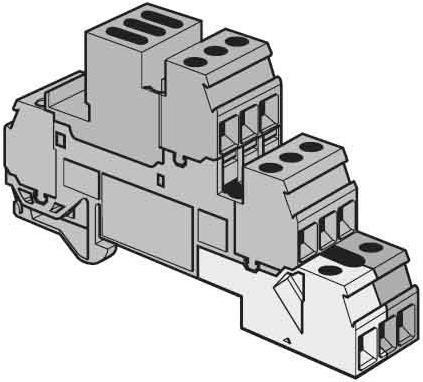

Krüger-Werke GmbH Terminal D4/6 LNTP1 gn-ge

Manufacturer: Krüger-Werke GmbH
Designation: Terminal
Type: D4/6 LNTP1 gn-ge
Connectable conductor cross-section fine-stranded without ferrule: 0.2..4 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.2..4 mm²
Connectable conductor cross-section solid: 0.2..4 mm²
Rated current In: 30 A
Rated voltage: 400 V
Electrical connection type 1: Screw connection
Electrical connection type 2: Screw connection
Number of potentials: 3
Mounting type: TH35 rail
Width: 17.8 mm
Depth: 87 mm
End plate required: yes
Base color: gray
With PE function: yes
With N-separation slide: yes
N-function possible: yes

Installation terminals with screw connections from the Solution series are available in widths of 6 and as a three-block in 17.8 mm. They provide an ideal solution for distribution cabinets in public buildings and meet wiring and connection regulations for installations designed according to DIN VDE 0100 or DIN VDE 0108. Thanks to the compact design and multi-tier terminal blocks, they save space in your control cabinets. ABB's screw connection technology has been developed to prevent disconnection of connections due to vibrations, shocks, or even accidental pulling on the cable. Various configurations of our installation terminals allow for the distribution of through, neutral, neutral separation, and protective conductor circuits in a compact format. The closed multi-circuit solution can combine up to 9 circuits on a single terminal block. The different installation terminals with screw connections cover a connection requirement of 0.2 - 4 mm².
