Name: 5 Stück Ventilstecker Bauform A schwarz 3 polig I Kontaktfläche 27 x 27 mm² I PG9 I Kontaktt
Brand: Kalitec
SKU: 53879551
Price: 21.47 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Kalitec

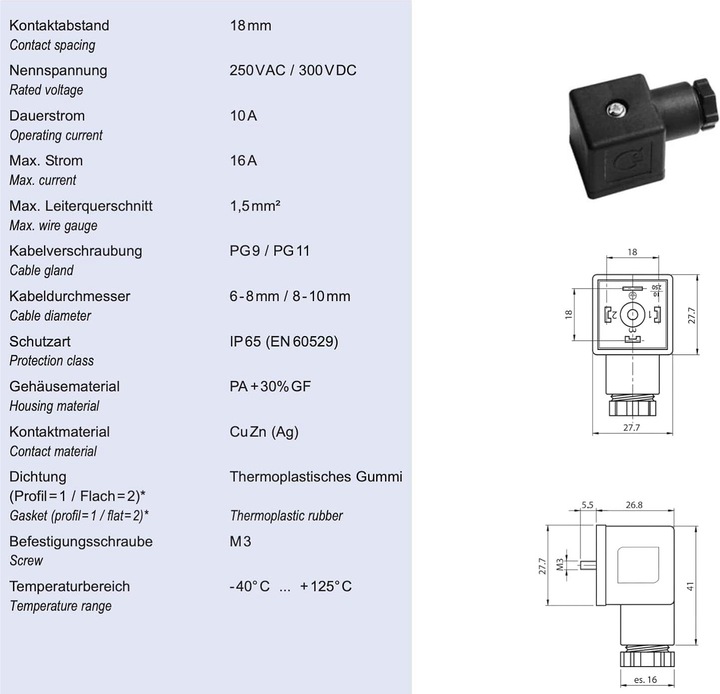

Versatile Applications: Our universal connector is suitable for solenoid valves, sensors, electric motors, and much more. It is perfectly suited for medical technology and technical systems in the mobility sector. Sturdy Housing: Made from robust, cuboid, thick-walled plastic. The high protection rating of IP65 and the stable construction enable use in drag chains, robotic applications, and devices exposed to vibrations. Safe and Reliable: The 3-pole connector ensures reliable control of electronically controlled valves through a secure signal connection. This particularly facilitates troubleshooting of electro-hydraulic and electro-pneumatic systems. The valve connector type A offers a waterproof and dustproof solution that is suitable for a variety of industrial applications such as mechanical engineering and tool or plant construction. Technical Specifications: Waterproof, dustproof / Contact distance: 18 mm / Rated voltage: 250 VAC / 300 VDC / Continuous current: 10 A / Housing: PA + 30% GF / Temperature range: -40 °C to +125 °C. Our valve connector provides a waterproof and dustproof solution designed for a wide range of applications, from medical technology to consumer electronics and technical systems in the mobility sector. Thanks to its robust manufacturing and high protection rating of IP65, it is ideal for use in demanding environments such as drag chains and robotic applications. Technical Data: Contact distance: 18 mm, Rated voltage: 250 VAC / 300 VDC, Continuous current: 10 A, Max. current: 16 A, Max. conductor cross-section: 1.5 mm², Cable gland: PG9, Cable diameter: 6-8 mm, Protection class: IP 65 (EN 60529), Housing material: PA + 30% GF, Contact material: CuZn (Ag), Seal: thermoplastic rubber, Mounting screw: M3, Temperature range: -40 °C to +125 °C.

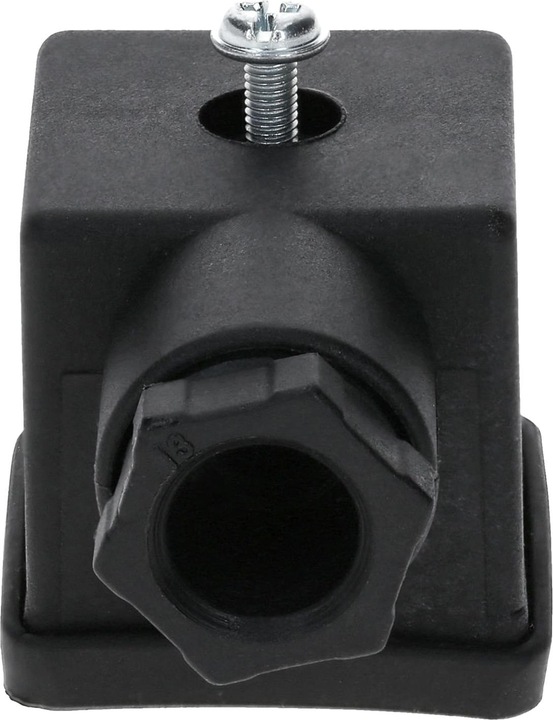

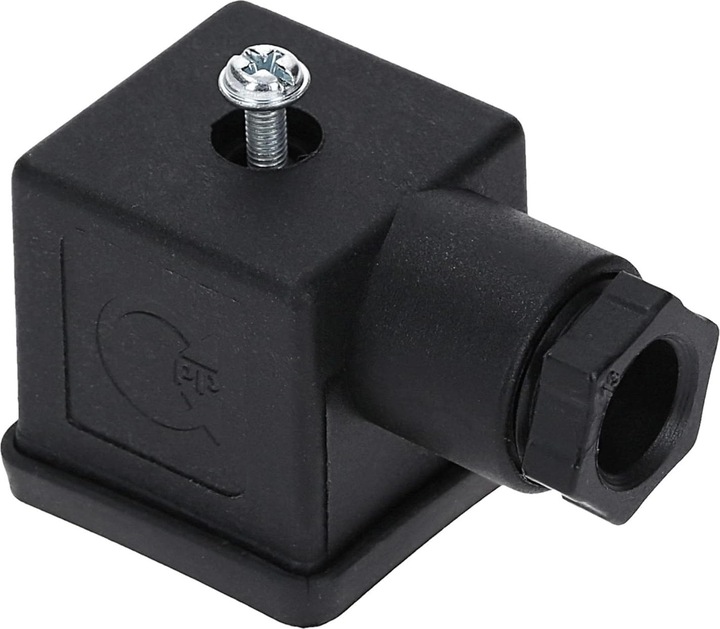

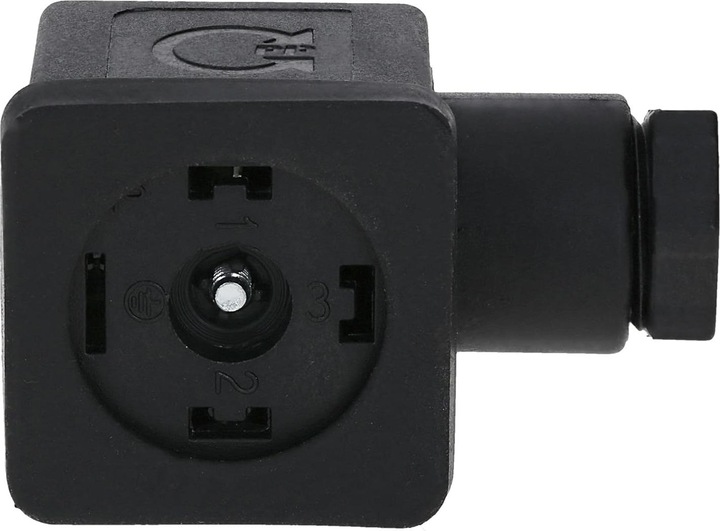

Actual product image Kalitec 5 Stück Ventilstecker Bauform A schwarz 3 polig I Kontaktfläche 27 x 27 mm² I PG9 I Kontaktt

Key specifications

Cable + connector type

Item number

Germany

marketsupply.com

5 Stück Ventilstecker Bauform A schwarz 3 polig I Kontaktfläche 27 x 27 mm² I PG9 I Kontaktt

Search

Kalitec 5 Stück Ventilstecker Bauform A schwarz 3 polig I Kontaktfläche 27 x 27 mm² I PG9 I Kontaktt

Product details

Compare products

Goes with

Reviews & Ratings

Kalitec 5 Stück Ventilstecker Bauform A schwarz 3 polig I Kontaktfläche 27 x 27 mm² I PG9 I Kontaktt

Product details

Description

Specifications

Price trend

Compare products

Similar products

Sales rank in Cables + Plugs

Goes with

Often bought together

Reviews & Ratings

Warranty & return rates

Questions about this product

Product ratings
