Jumo Conductivity sensor

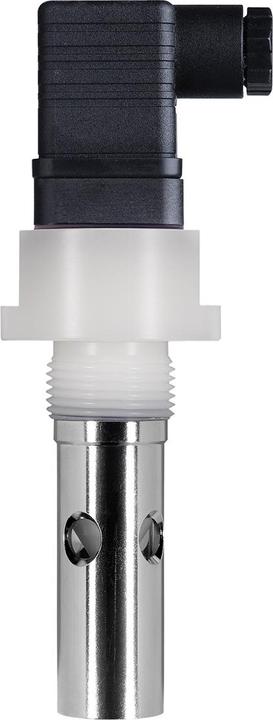

Jumo conductivity sensor 00350625 Manufacturer :Jumo Designation :Conductivity sensor 0.05-10uS/cm,0.1-20M Type :00350625 Version :conductive Insertion length :74 mm Max. pressure :16 bar Max. pressure :16 bar Pressure :16 bar Max. Temperature :135 °C Sensor type :Pt100 Cell constant :0.01 Electrode material :Stainless steel 316 Ti (1.4571) Process connection design :G 1/2 inch Process connection material :Polyvinylidene fluoride (PVDF) Electrical connection design :other right-angle connector :yes Cable length :0 m Jumo conductivity sensor 00350625: more details This conductive conductivity sensor has a cell constant of K=0.01 (0.05 to 10 uS/cm or 0.1 to 20 MOhm/cm). 0.1 to 20 MOhm/cm) and a Pt100 measuring insert in a two-wire circuit. It is installed via the G 1/2A process connection made of PVDF. An angled device plug in accordance with DIN 43650 is available as an electrical connection. The electrode material is stainless steel (1.4571). The installation length is 74 mm. The operating temperature is 0 to +135 °C and the maximum pressure load is 16 bar at 25 °C and 9 bar at 60 °C. EAN: 4053877025498.
