Name: CR-1400 EVO
Brand: Jonsbo
SKU: 39567978
Price: 19.9 CHF
Availability: InStock
Rating: 4.5 (2 reviews)

productDetailPageQuery

Zurich

Lausanne

Wohlen

Basel

Kriens

Winterthur

Bern

Dietikon

St. Gallen

Geneva

Jonsbo

The Jonsbo CR-1400 EVO is a powerful single tower CPU cooler designed for efficient heat dissipation and quiet operation. With a TDP of 180 W, it provides sufficient cooling performance for overclocked processors, making it ideal for demanding applications. The cooler is equipped with four 6-mm heat pipes that ensure effective heat transfer. The 92-mm PWM fan facilitates optimal airflow and can reach a maximum speed of 2200 RPM while maintaining a noise level of just 33.8 dB. Installation is straightforward thanks to the included mounting bracket, and its high compatibility with various AMD and Intel sockets makes it a versatile choice for different builds. Additionally, the integrated RGB lighting adds an appealing visual element that harmoniously fits into modern PC setups.

- Extremely powerful cooler with 180 W TDP
- Four 6-mm heat pipes for efficient heat dissipation
- Quiet 92-mm PWM fan with a maximum of 2200 RPM
- High compatibility with AMD and Intel processors
- Integrated RGB lighting for an attractive design.

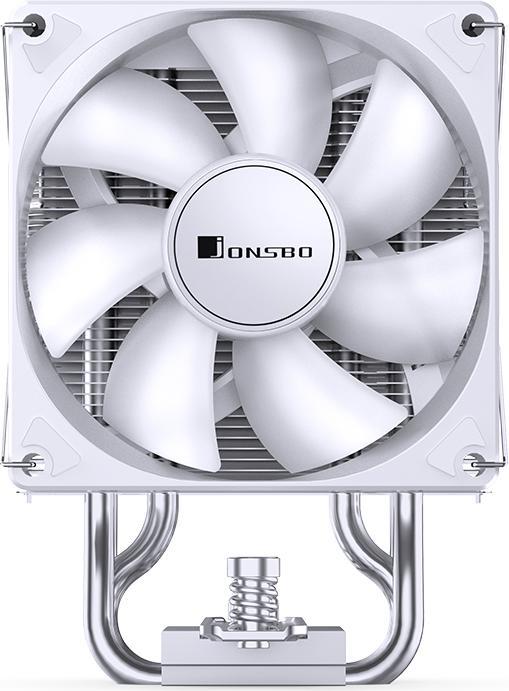

Actual product image Jonsbo CR-1400 EVO (130 mm)

Key specifications

Socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

Diameter

Number of fans

Max. TDP

The thermal design power (TDP), sometimes called thermal design point, refers to the maximum amount of power the cooling system in a computer is required to dissipate. For example, a laptop's CPU cooling system may be designed for a 20 watt TDP, which means that it can dissipate up to 20 watts of heat without exceeding the maximum junction temperature for the computer chip. It can do this using an active cooling method such as a fan or any of the three passive cooling methods, convection, thermal radiation or conduction. Typically, a combination of methods is used. The TDP is typically not the most power the chip could ever draw, such as by a power virus, but rather the maximum power that it would draw when running "real applications". This ensures the computer will be able to handle essentially all applications without exceeding its thermal envelope, or requiring a cooling system for the maximum theoretical power (which would cost more but in favor of extra headroom for processing power).

Airflow

The air volume refers to the amount of air that can be moved or circulated per unit of time. It is often measured in cubic metres per hour or litres per second. A higher air volume generally indicates a stronger suction force or circulation of air.
