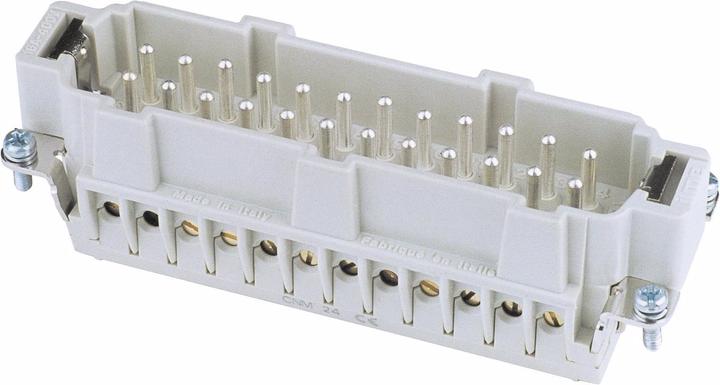

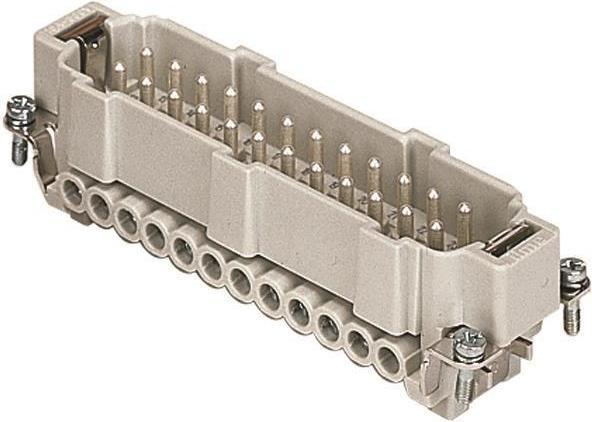

ILME Plug insert 24-pin 16A, screw terminals

Ratings
Delivered between Tue, 28.4. and Wed, 6.5.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Ilme Pin Insert Screw CNEM 24 T

Manufacturer: Ilme
Description: Pin Insert Screw 16A-500
Type: CNEM 24 T
Contact insert without contacts: no
Contact design: Pin
Number of poles: 24
Material of the connector insert: Thermoplastic
Rated current In: 16 A
Ambient temperature: -40..125 °C
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Degree of pollution: 3
Type of electrical connection: Screw connection
Connectable conductor cross-section fine-stranded without ferrule: 0.5..4 mm²
Material of contact coating: Silver
Flammability class of the insulating material according to UL 94: V0
With protective conductor: yes

The ILME article number CNEM 24 T defines the item Pin Insert, size 104.27, 24P+PE, Silver, screw connection, 16A, 500V. The contact insert of the CNE series represents the classic contact insert for multi-pole connectors for industrial applications. Identical specifications and contours as the CCE, CSE, CSH, and CSS series allow for a wide range of applications for this contact insert.

Key specifications

Cable + connector type
Plug connectors

General information

Item number
17522930
Manufacturer
ILME
Category
Cables + Plugs
Manufacturer no.
30351450
Release date
19.11.2021

Colour

Colour
Silver

Material

Material group
Plastic
Material
Thermoplastic resin

Cable + Connector Features

Cable + connector type
Plug connectors
Compatible hardware
Various
Temperature
-40 - 125 °C
Max. temperature
125 °C
Min. temperature
-40 °C
mounting type
Screw holder
Number of cores
24x

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 1.08

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
1 piece

Product dimensions

Length
2 cm
Width
1.20 cm
