ILME Connector

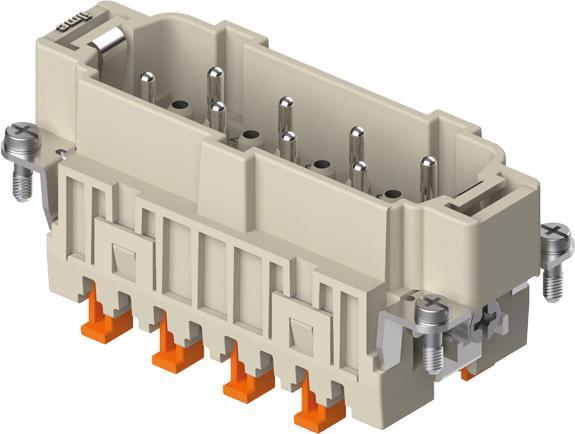

Ilme Connector CMSHM 06

Manufacturer: Ilme
Description: Connector
Contact Pin Type: CMSHM 06
Contact Insert without Contacts: Yes
Contact Design: Pin
Number of Poles: 7
Rated Current In: 16 A
Rated Voltage: 830 V
Rated Impulse Voltage: 8 kV

Ilme Connector CMSHM 06: Additional Details
The ILME article number CMSHM 06 defines the item as a pin insert, size 77.27, 6+2P+PE, silver, SQUICH, 16A, 830V. The contact insert of the CMSH series is equipped with the patented ILME quick connection technology SQUICH®. This connection technology offers an intuitive and fast connection of the connector. In addition to saving up to 50% of time compared to traditional screw connection technology, the cage spring contacts of the SQUICH® technology are completely vibration-resistant and maintenance-free, making them suitable for applications in the EN 61373 area. The additional test opening of the connection buttons allows the user to measure and test in the connected and installed state of the connector. The same specifications and contours as the CNE, CCE, CSE, and CSS series enable a wide range of applications for this contact insert.
EAN: 8015747213998.
