Icy Box Ib-Rd3680su3

3.5"
2Ratings
BrandMore from Icy Box
Currently out of stock
Free shipping starting at 50.–

Product details

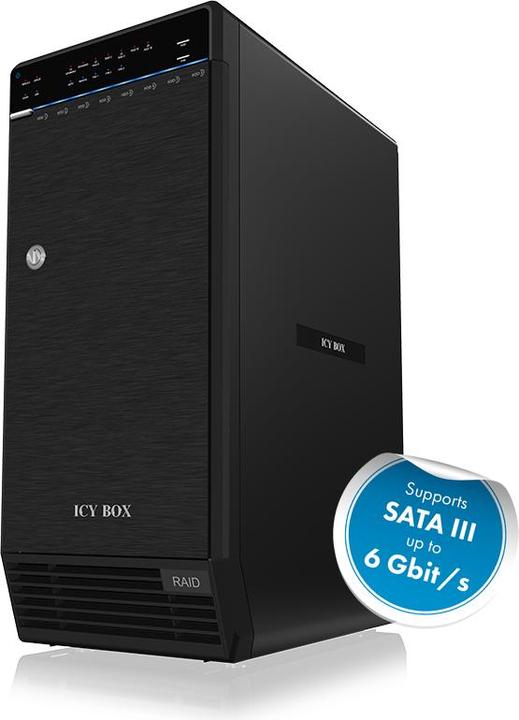

The external RAID enclosure offers space for a total of eight SATA I/II/III hard drives or SSDs. It is primarily made of aluminum, providing stability and excellent heat dissipation. The cooling of the drives is further enhanced by two temperature-controlled 80 mm fans on the rear side and corresponding air inlets underneath the drive bays on the front. The door of the case is lockable.

The display of the RAID system features various LEDs that indicate operation, fan status, interfaces, hard disk usage, access, and errors (RAID). The available RAID levels 0 (striping), 10, 5, 50, and BIG (spanning) cover a wide range of applications, making the RAID system suitable for any situation. Additional external interfaces include USB 3.0 and eSATA, allowing for the use of hard disks without capacity restrictions.

The RAID enclosure also includes several convenient functions such as carrierless hard disk installation and an energy-saving standby mode. It features an Auto Rebuilding function, which automatically adds new hard disks to the RAID array, as well as hot-swap capability, Plug & Play support, and compatibility with both Windows and Mac systems.

For users with lower requirements for a file system, the JBOD enclosure ICY BOX IB-3680SU3 is the ideal solution. It supports the JBOD file system instead of various RAID levels, making it suitable for pure data storage.

Main features:

  • Quiet operation due to temperature-controlled fan
  • Energy saving through synchronized standby mode
  • Easy handling due to strapless hard disk installation
  • Unlimited hard disk capacity
  • External data interfaces: USB 3.0, eSATA
  • Plug & Play and hot swap
  • Compatible with Windows 7/8.x and Mac OS X > 10.5.

Key specifications

Form factor
3.5"
Number of HDD slots
8
Interface
SATA
USB ports
USB-A
Exact USB ports
USB-A 3.0 (1x)
Item number
5829334

General information

Manufacturer
Icy Box
Category
Hard drive enclosures
Manufacturer no.
IB-RD3680SU3
Release date
2.7.2016

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal, Plastic
Material
Aluminium, Plastic

Case properties

External case type
HDD housing
Form factor
3.5"
Number of HDD slots
8
Protocol
AHCI (SATA)
Max. data transfer rate
5000 Mbit/s
RAID configuration
0, 1, 10, 5
Hard disk enclosure functions
Hot swapping

Internal interfaces

Interface
SATA

Connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (1x)
Data ports
eSATA (1x)

Power supply

Power supply
Electrical connection
Power consumption
60 W

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x eSATA, 1x Power Supply Cable, 1x USB 3.0 cable

Product dimensions

Length
25.30 cm
Width
15.50 cm
Height
35.20 cm
Weight
6200 g

Package dimensions

Length
47 cm
Width
33 cm
Height
24.50 cm
Weight
6.33 kg
