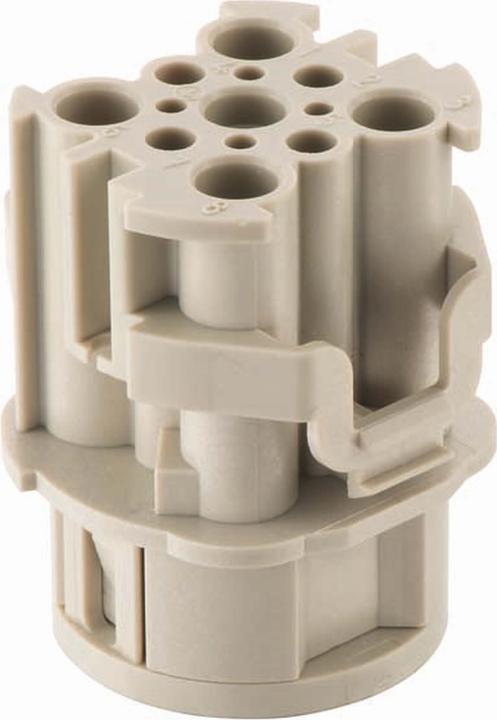

Harting Socket insert

Harting socket insert 09155083101
Manufacturer: Harting
Designation: Socket insert Han F+B 4/4-F
Type: 09155083101
Number of power contacts: 8
Contact insert without contacts: No
Contact design: Socket
Number of poles: 8
Material of connector insert: Thermoplastic
Rated current In: 20 A
Ambient temperature: -40 to 125 °C
Operating temperature: -40 to 125 °C
Rated voltage: 400 V
Rated impulse voltage: 6 kV
Pollution degree: 3
Electrical connection design: Crimp connection
With wire protection: No
Connectable conductor cross-section fine stranded without ferrule: 0.14 to 4 mm²
Connectable conductor cross-section multi-stranded: 0.14 to 4 mm²
Material of contact coating: Other
Material of contact insert: Thermoplastic
Material of contact: Other
Flammability class of insulating material according to UL 94: V0
With protective conductor: Yes
Min. number of mating cycles: 500 h
Number of mating cycles: 500
Harting socket insert 09155083101: More details
Inserts, crimp connection, socket, polycarbonate (PC), RAL 7032 (pebble grey), contacts: 8, conductor cross-section: 0.14 to 4 mm², EAN: 5713140023666.
