Harting Plug insert female male Q 7/0 7-pole with earth max 10A 400 V

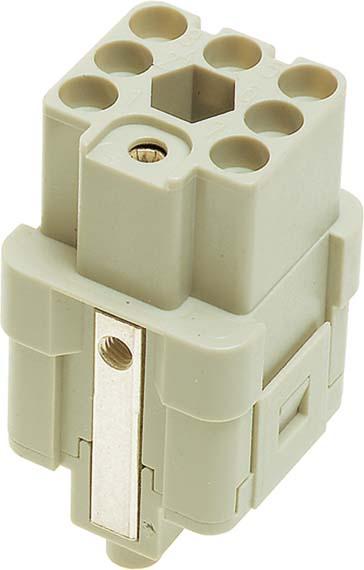

Harting Socket insert 09120073101 Manufacturer :Harting Designation :Socket insert Type :09120073101 Number of power contacts :7 Contact insert without contacts :no Contact design :Socket Number of poles :7 Material of connector insert :Thermoplastic Rated current In :10 A Ambient temperature :-40..125 °C Operating temperature :-40..125 °C Rated voltage :400 V Rated impulse voltage :6 kV Pollution degree :3 Electrical connection type :Crimp connection With wire protection :no Connectable fine-stranded conductor cross-section without ferrule :0,14..2.5 mm² Connectable conductor cross-section stranded :0.14..2.5 mm² Material of contact coating :other Material of contact insert :thermoplastic Material of contact :other Flammability class of insulating material according to UL 94 :V0 With protective conductor :yes Min. Number of mating cycles :500 Harting socket insert 09120073101: further details Inserts, crimp connection, socket, polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 7, Conductor cross-section: 0.14...2.5 mm² , EAN: 5713140017535.
