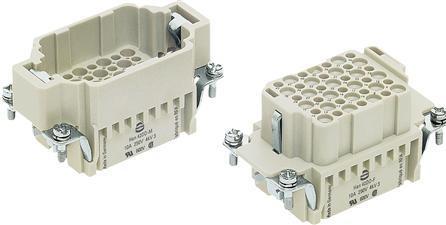

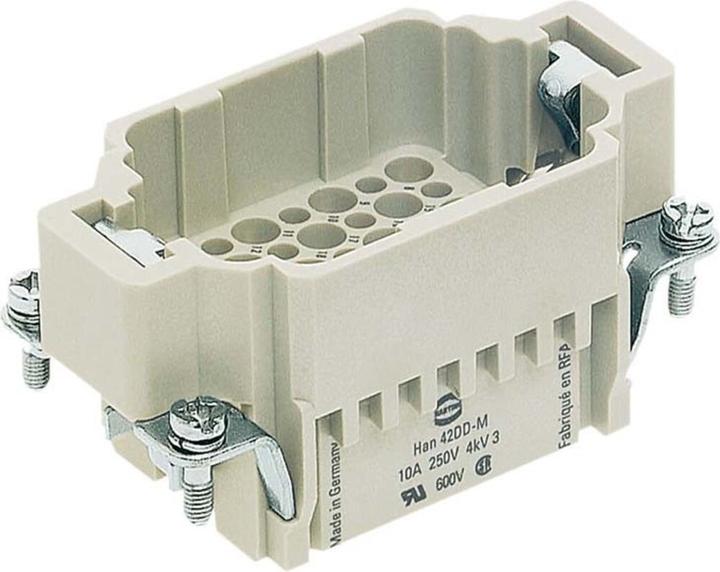

Harting HAN DD Connector, insert type 10 male connector crimp max 2,5mm2, 10A42 pole

Ratings
Delivered between Tue, 24.6. and Thu, 26.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Harting contact insert crimp 09160423001
Manufacturer: Harting
Designation: Contact insert crimp
Type: 09160423001
Number of power contacts: 42
Contact insert without contacts: No
Contact design: Pin
Number of poles: 42
Material of the connector insert: Other
Rated current: 10 A
Operating temperature: -40 to 125 °C
Rated voltage: 250 V
Rated impulse voltage: 4 kV
Pollution degree: 3
Electrical connection type: Crimp connection
With wire protection: No
Connectable fine-stranded conductor cross-section without ferrule: 0.14 to 2.5 mm²
Connectable conductor cross-section stranded: 0.14 to 2.5 mm²
Material of contact coating: Other
Material of contact insert: Other
Material of contact: Other
Flammability class of insulating material according to UL 94: V0
With protective conductor: Yes
Minimum number of mating cycles: 500
Further details: Inserts, crimp connection, pin, RAL 7032 (pebble grey), rated current: 10 A, size: 10 B, contacts: 42, conductor cross-section: 0.14 to 2.5 mm².

Key specifications

Cable + connector type
Various
Item number
32503609

General information

Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09160423001
Release date
23.1.2023

Colour

Colour
Grey

Material

Material
Other

Cable + Connector Features

Cable + connector type
Various
Max. temperature
125 °C
Min. temperature
-40 °C
Manufacturer Type
09160423001
Number of cores
42 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
3.36 cm
Width
3.40 cm
Height
6.38 cm
