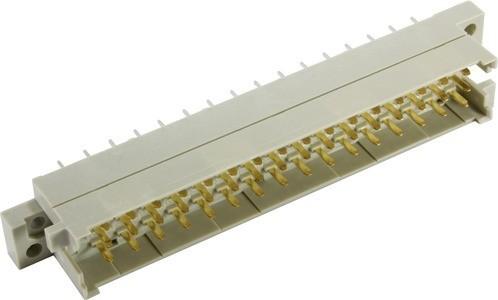

Harting DIN plug connector

Ratings
BrandMore from Harting
Delivered between Fri, 25.9. and Fri, 9.10.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Show all

Product details

The DIN connector 09060482905 from Harting is a highly advanced electrical connection designed for linking circuit boards to cables. With a pin count of 48 and three contact rows, this connector provides a reliable and stable connection for various applications. The solder connection allows for a permanent link, while the thermoplastic housing ensures high temperature resistance of up to 125 °C. The design features a vertical contact arrangement that enables efficient space utilization. The connector meets the requirements of the IEC 60603-2 standard and offers various coding options to ensure error-free connections. The use of high-quality materials, including a copper alloy with precious metal plating, ensures excellent electrical performance and durability.

  • Operating temperature up to 125 °C
  • Flange mount for easy installation
  • 48 contacts with hole and collar coding
  • High-quality copper alloy with precious metal plating
  • Complies with IEC 60603-2 standard.

Key specifications

Cable + connector type
Plug connectors

General information

Item number
37031898
Manufacturer
Harting
Category
Cables + Plugs
Manufacturer No.
09060482905
Release date
12.7.2023

Colour

Colour
Grey

Material

Material group
Metal, Plastic
Material
Copper alloy, Glass fibre reinforced, Thermoplastic moulding material

Cable + Connector Features

Cable + connector type
Plug connectors
Max. temperature
125 °C
Connectors Design
Flange bushing

Origin

Country of origin
Romania

Voluntary climate contribution

CO₂ emissions
0.25 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
48 pcs.
Scope of delivery
1 pc.

Product dimensions

Weight
22 g
