Harting Crimp

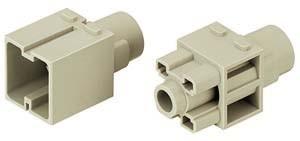

Harting Crimp module 09140013101 Manufacturer :Harting Designation :Crimp module Han 200A, socket Type :09140013101 Number of power contacts :1 Contact insert without contacts :yes Contact design :Socket Number of poles :1 Material of connector insert :Thermoplastic Rated current In :200 A Operating temperature :-40..125 °C Rated voltage :800 V Rated impulse voltage :8 kV Pollution degree :3 Electrical connection design :Crimp connection With wire protection :no Connectable conductor cross-section fine-wire without ferrule :25..70 mm² Connectable conductor cross-section multi-stranded :25..70 mm² Material of contact coating :other Material of contact insert :thermoplastic Material of contact :other Flammability class of insulating material according to UL 94 :V0 With protective conductor :no Min. number of mating cycles :500 hardnesses Number of mating cycles :500 Harting crimp module 09140013101: further details Han 200 A module, double module, crimp connection, socket, contacts: 1, conductor cross-section: 25...70 mm², rated current: 200 A, polycarbonate (PC), RAL 7032 (pebble grey) , EAN: 5713140019355.
