Product details

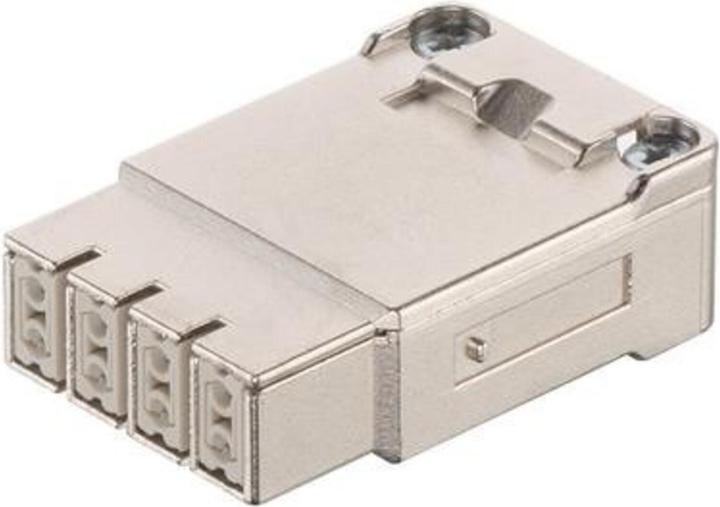

Harting contact socket 09140083111
Manufacturer: Harting
Designation: Contact socket Han GigaBit
Contact Type: 09140083111
Number of power contacts: 8
Contact insert without contacts: Yes
Contact design: Socket
Number of poles: 8
Material of connector insert: Thermoplastic
Rated current In: 5 A
Operating temperature: -40 to 85 °C
Rated voltage: 50 V
Rated impulse voltage: 0.8 kV
Pollution degree: 3
Electrical connection design: Crimp connection
With wire protection: No
Connectable conductor cross-section fine-wire without ferrule: 0.09 to 0.52 mm²
Connectable conductor cross-section multi-stranded: 0.09 to 0.52 mm²
Material of contact coating: Other
Material of contact insert: Thermoplastic
Material of contact: Other
Flammability class of insulating material to UL 94: V0
Min. number of mating cycles: 500

Further details: Crimp connection, socket, contacts: 8 + shielding, conductor cross-section: 0.09 to 0.52 mm², rated current: 5 A, polycarbonate (PC), RAL 7032 (pebble grey).

Key specifications

Cable + connector type
Plug connectors

General information

Item number
37031551
Manufacturer
Harting
Category
Cables + Plugs
Manufacturer no.
09140083111
Release date
12.7.2023
External links
Manufacturer's site (de)

Colour

Colour
Grey

Material

Material group
Plastic
Material
Polycarbonate (PC), Thermoplastic resin

Cable + Connector Features

Cable + connector type
Plug connectors
Temperature
-40 - 85 °C
Max. temperature
85 °C
Min. temperature
-40 °C
Connectors Design
Flange bushing

Origin

Country of origin
China, Romania

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 1.30

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
1 pc.

30-day right of return
24 Months Warranty (Bring-in)
