Hagor WH 85 T-HD tilting wall mount 81 to 279cm 55-110 inch VESA max 800x600 max Tragl 125kg -10 b...

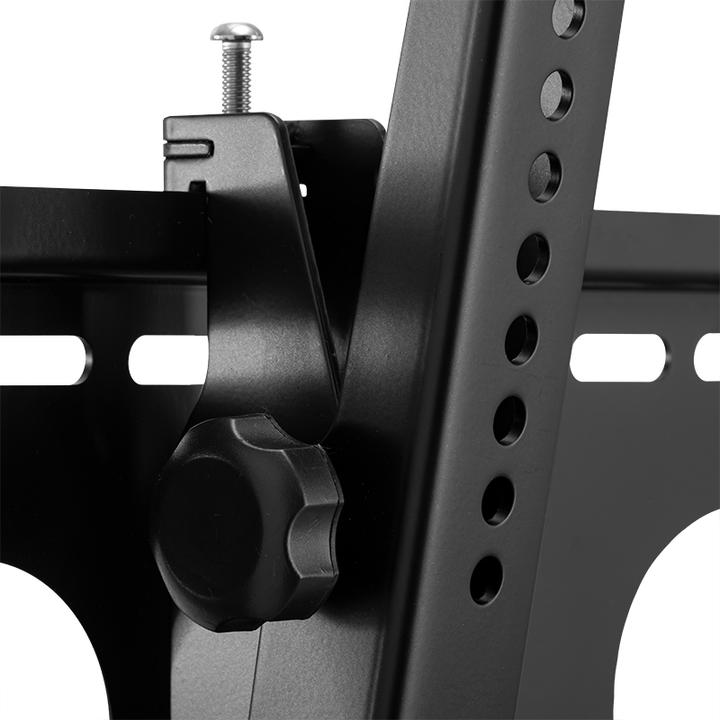

The WH 85 T-HD is an adjustable heavy-duty wall mount for flat screens ranging from 55 to 110 inches (140 to 279 cm), suitable for both landscape and portrait orientations. In addition to the standard mounting options up to a maximum VESA of 800 x 600 mm, the WH 85 T-HD also offers a 125 mm hole pattern for optional adaptation to HAGOR stand or ceiling systems. The mount is characterized by its extremely stable construction and is particularly suitable for very heavy screens with a maximum load capacity of 125 kg. An integrated level ensures easy installation. To adjust the optimal viewing angle, the sturdy mount features adjustment screws. The tilt can be flexibly set between -10° and +10°. Additionally, a height adjustment of up to 10 mm is possible. The included padlock allows the mount to be secured against theft.

Technical Data:
Manufacturer: Hagor
Product Group: Wall Mounts
Product Type: Wall Mount
Color: Black
Maximum Load Capacity: 125 kg
Tiltable: Yes
Height Adjustable: No
Rotatable: Yes
Max. Screen Diagonal (cm): 279 cm
Max. Screen Diagonal (inches): 110 inches
Min. Screen Diagonal (cm): 140 cm
Min. Screen Diagonal (inches): 55 inches
VESA 100 x 100 mm: Yes
VESA 200 x 100 mm: Yes
VESA 200 x 200 mm: Yes
VESA 300 x 200 mm: Yes
VESA 300 x 300 mm: Yes
VESA 400 x 200 mm: Yes
VESA 400 x 300 mm: Yes
VESA 400 x 400 mm: Yes
VESA 600 x 200 mm: Yes
VESA 600 x 400 mm: Yes
VESA 600 x 500 mm: Yes
VESA 700 x 500 mm: Yes
VESA 800 x 400 mm: Yes
VESA 800 x 500 mm: Yes
VESA 800 x 600 mm: Yes
Material Group: Metal
Height: 630 mm
Width: 865 mm
Depth: 65.25 mm
Weight: 6.25 kg
Packaging Height: 0 mm
Packaging Width: 0 mm
Packaging Depth: 0 mm
Package Weight: 6.25 kg
Gross Weight: 6.25 kg.
