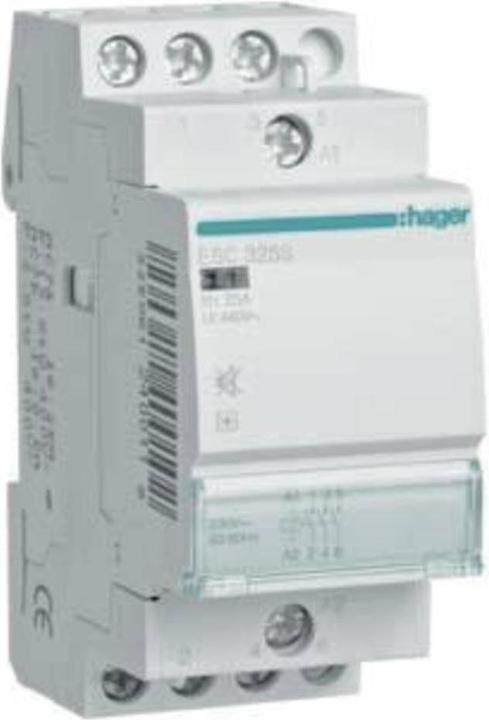

Hager Contactor ESC325S
Manufacturer: Hager
Designation: Buzz-free Contactor 25A 3P 230V
Type: ESC325S
Rated operational voltage: 400 V
Rated operational current: 25 A
Usage category according to EN IEC 60947-4-1: AC-7a/AC-7b
Rated control voltage: 230 V
Type of operational voltage: AC
Type of control voltage: AC
Number of contacts as normally open: 3
Max. incandescent lamp load: 1900 W
Max. fluorescent lamp load: 950 VA
Max. fluorescent lamp load (Duo circuit): 1990 VA
Max. fluorescent lamp load (parallel compensated): 810 VA
Manual operation switch: no
Width in modular units: 2
Installation depth: 60 mm
Additional devices possible: yes
With day/night function: no
Buzz-free: yes
Protection class (IP): IP2X
Hager Contactor ESC325S: further details
Buzz-free installation contactor 25A 3 normally open contacts 230V. Buzz-free contactor according to DIN EN 61095 (VDE 0637-3) with contact position indication through a display window, integrated labeling field, and suitable for retrofitting additional devices. DC magnetic system with protection circuit against overvoltage and to limit interference voltage spikes, ensuring buzz-free continuous operation and minimal switching noise. Note: When installing multiple devices directly, a spacer (1/2 PLE) must be installed next to every second device.
EAN: 3250612400102.
input voltage | 400 V |
Scope of delivery | 1 contactor ripple-free 25A 3S 230V |
Output voltage | 230 V |
Output current type | AC |
Electric current output | 25 A |
Relay type | Installation contactor |
Item number | 20025332 |
Relay type | Installation contactor |
input voltage | 400 V |
Output voltage | 230 V |
Electric current output | 25 A |
Output current type | AC |
Switching function | Normally open |
Number of closers | 3 x |
Number of poles | 3 x |
Number of switching cycles | 30000 x |
Max. Switching capacity | 1.90 kW |
Manufacturer Type | Esc325s |
Smart Home | Not compatible |
Radio frequency | 50 Hz |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 contactor ripple-free 25A 3S 230V |
Length | 60 mm |
Width | 35.75 mm |
Height | 83 mm |
Length | 9 cm |
Width | 7 cm |
Height | 4 cm |
Weight | 330 g |
