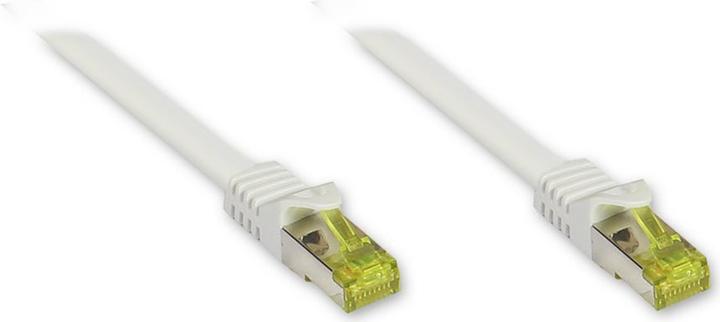

Good Connections RJ45 patch cable withCat.7 raw cable and snap-in lug protection (RNS®), S/FTP, PiMF, halogen-free

PiMF, S/FTP, CAT7, 1.50 m
Save CHF1.20 CHF8.87/1m
17Ratings
Delivered between Thu, 19.6. and Sat, 28.6.
More than 10 items in stock at supplier

Product details

Patch cable with effective snap-in lug protection (RNS®). The latching lug protection prevents the latching lug on the patch cord connector from bending away, making broken lugs a thing of the past.

With latching nose protection (RNS®)
Suitable for 10/100/1000/10000 Base-T Ethernet networks (10 Gigabit capable)
500 MHz
Raw cable manufactured according to Cat. 7 specifications
2x shielded RJ45 Cat. 6A plugs
S/FTP cable (shielding foil + braiding)
PiMF (cores in pairs in metal foil)
Inner conductor: AWG 26
Conductor material and contacts made of 99.9% oxygen-free copper (OFC)
Outer sheath diameter: 6.5 mm
Flame retardant according to IEC 60332-1
Assignment 1:1 according to EIA/TIA-568B
Halogen-free according to IEC 60754-2
Low smoke according to IEC 61034
Gold-plated contact surfaces
Suitable for various devices such as patch panels, switches, routers, modems with RJ45 connection
Length: 1.5 m
Colour: white.

Key specifications

Patch cable type
Copper cable
Item number
17529481

General information

Manufacturer
Good Connections
Category
Network cables
Manufacturer no.
8070R-015W
Release date
20.11.2021
Sales rank in Category Network cables
1070 of 50126
External links
Manufacturer's site (de)

Colour

Cable colour
White

Material

Material
Metal foil with mesh
Material of the isolation
LSZH

Cable properties

Connection A
RJ45
Connection B
RJ45
Cable Application
RJ45
Cable design
Low Smoke Zero Halogen (LSZH)
Plug type
Flat
Cable connection
Connection (m/m)
American Wire Gauge (AWG)
26
Frequency
600 MHz

Patch cable properties

Patch cable type
Copper cable
Patch cable Features
Halogen-free

Twisted-pair cable properties

Cable category
CAT7
Shield
PiMF, S/FTP

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Diameter
6.50 mm
Length
1.50 m
Depth
1500 mm

Package dimensions

Length
15.40 cm
Width
12.60 cm
Height
1.80 cm
Weight
62 g
