Goobay network coupler

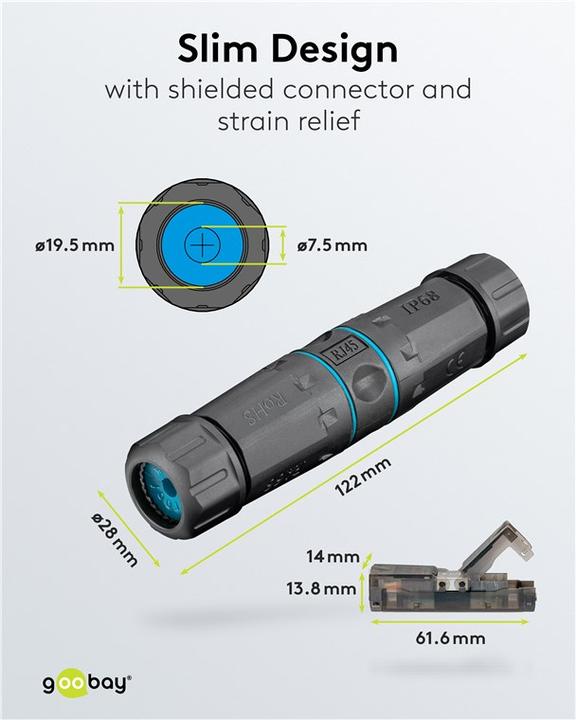

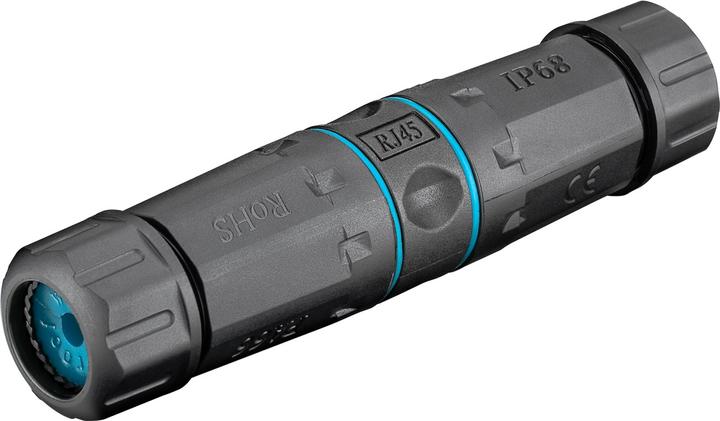

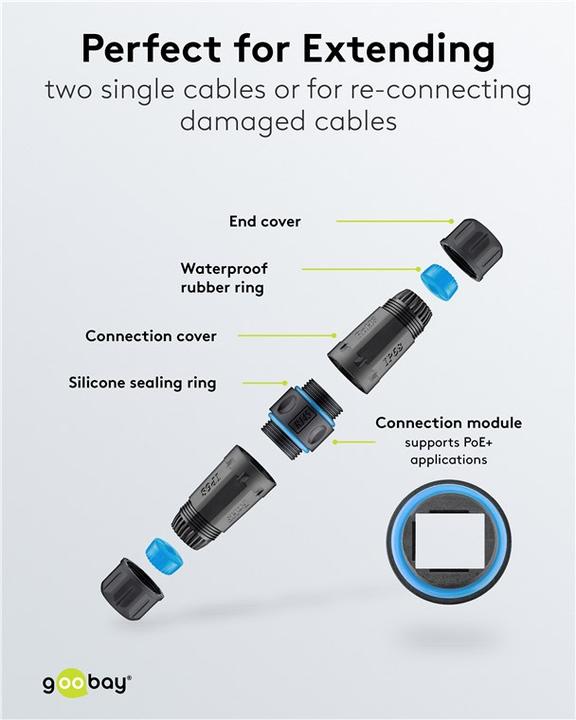

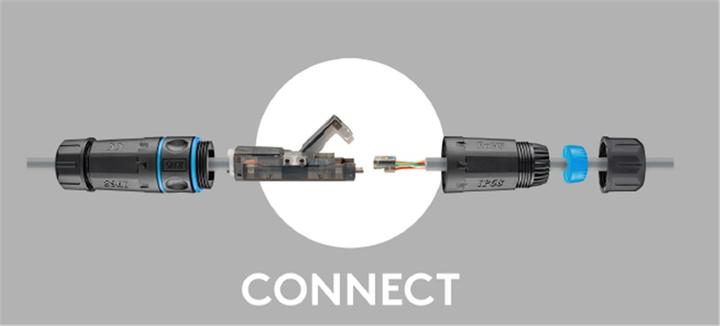

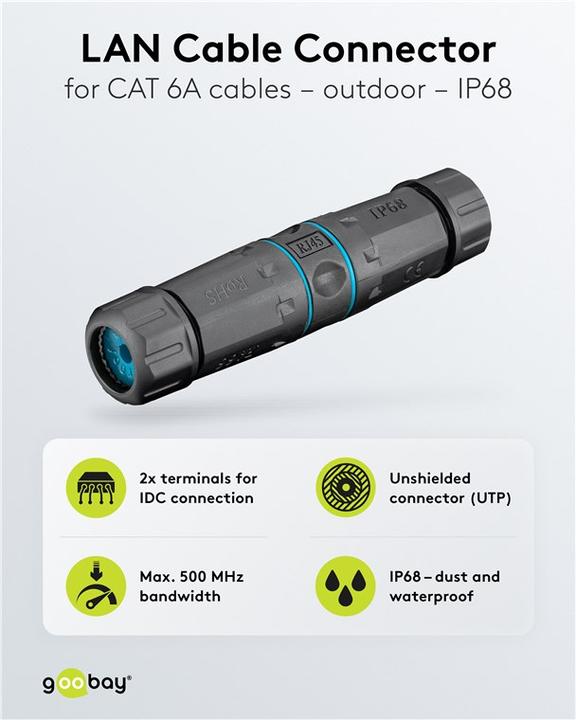

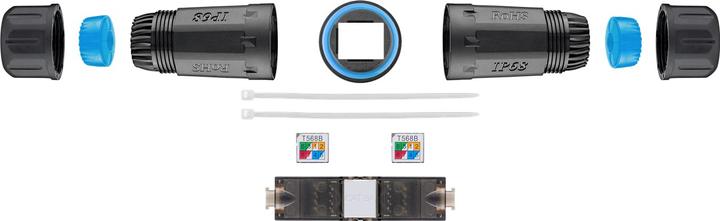

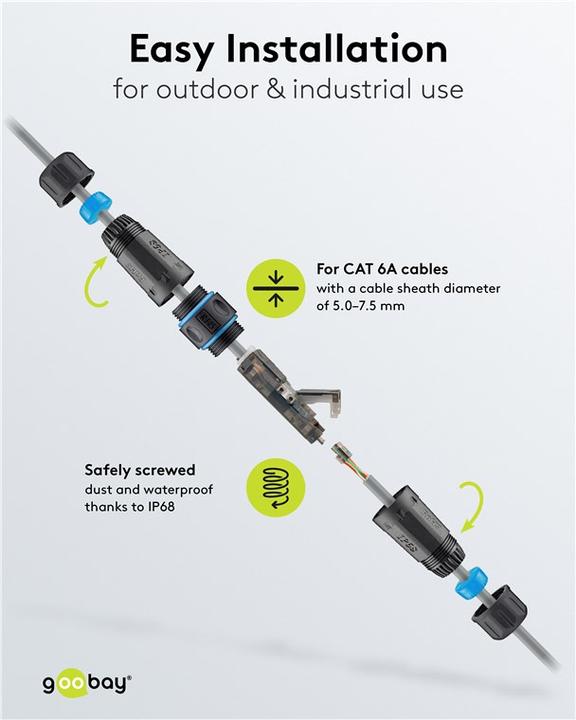

The cable connector is designed for an 8-wire connection, extension, repair, or rerouting of data cables. The main advantage over network connection boxes is its slim design. Cable extensions can be easily made even in tight spaces, such as in cable ducts. Goobay always has the right product for your network connection. Unshielded cable connector UTP for extending or connecting 2x LAN installation cables. The field-terminable cable connector for outdoor and industrial applications provides protection against dirt and moisture (protection class IP68). With the connection module, damaged cables can be reconnected without the need to replace an entire cable segment. Tool-free assembly is possible using solderless, screwless, and stripping-free connection technology (LSA mounting). A maximum data transmission of 500 MHz guarantees an excellent, high-performance network connection. Suitable for unconfigured patch cables with AWG 22-26, conductor diameter: solid wire 0.48 - 0.65 mm, stranded wire 7 x 0.16 mm - 7 x 0.20 mm, and cable sheath diameter: 5.0 - 7.5 mm. Very slim connection module with shield connection and integrated strain relief.
