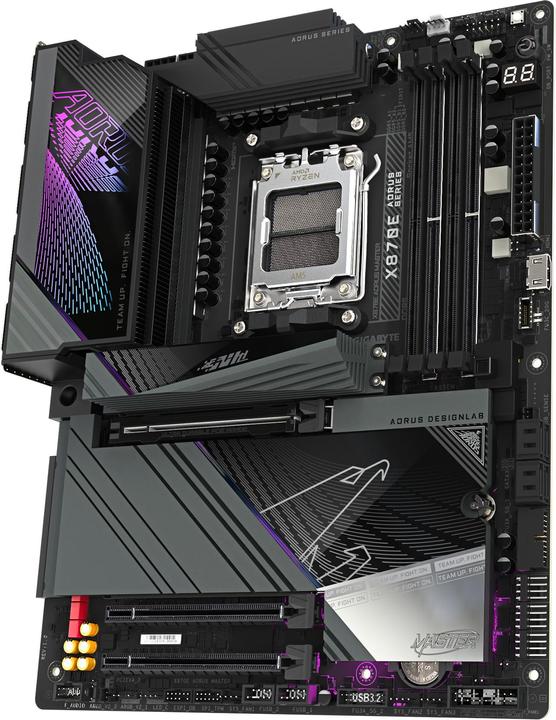

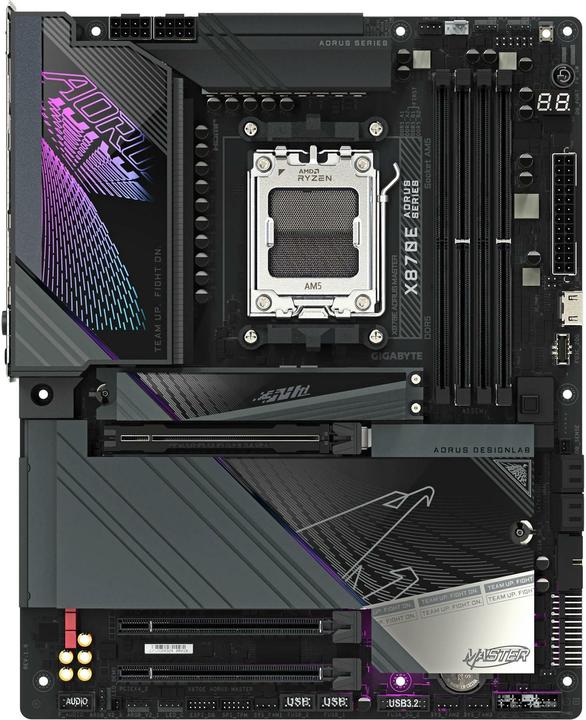

Gigabyte X870E AORUS MASTER

AM5, AMD X870E, ATX
8Ratings
BrandMore from Gigabyte
Delivered Sat, 31.5.
More than 10 items in stock

Product details

Elevate your computing experience with Gigabyte's renowned motherboard series: AORUS, AERO, and Gigabyte. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge.

Key specifications

Processor family
Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCIe (4x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector
Item number
49039523

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
X870E AORUS MASTER
Release date
3.9.2024
Sales rank in Category Motherboards
28 of 958

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD X870E
Mainboard features
Clear CMOS Button, Front panel audio connector
Operating system compatibility
Windows 11 Home
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be

Processor

Processor family
Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
8600 MHz
Supported memory speed
4400 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 7600 MHz, 8200 MHz, 8400 MHz, 8600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
2 x USB-C, HDMI (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Max. port speed
5 Gbit/s

Audio

Chip
Realtek ALC1220
Audio channel
7.1 Channel
Audio Connections
Audio Out (1x), Microphone, Optical TOSLINK (1x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
M.2 PCIe (4x), S-ATA III (4x)
Expansion slot
PCI Express x16 (3x)
PCI express version (max.)
5
Number of fan connector
4

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2x2 (1x)

Power supply

Power connectors
24-pin ATX, 2x 8-pin ATX 12V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece(s)

Product dimensions

Length
244 mm
Width
305 mm
Height
35 mm
Weight
2540 g

Package dimensions

Length
35 cm
Width
29 cm
Height
8 cm
Weight
2.58 kg
