Gigabyte MB H V2 H510,S1200,mATX,Intel

LGA 1200, Intel H470, mATX
9Ratings
BrandMore from Gigabyte
tonight with flash delivery
to check if flash delivery is available to you.

Product details

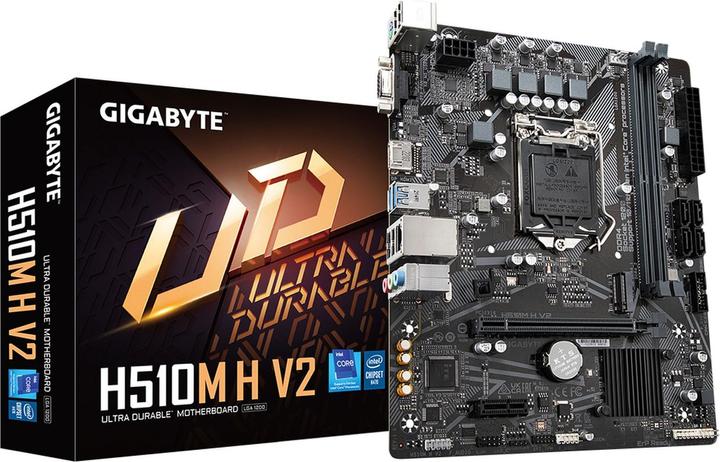

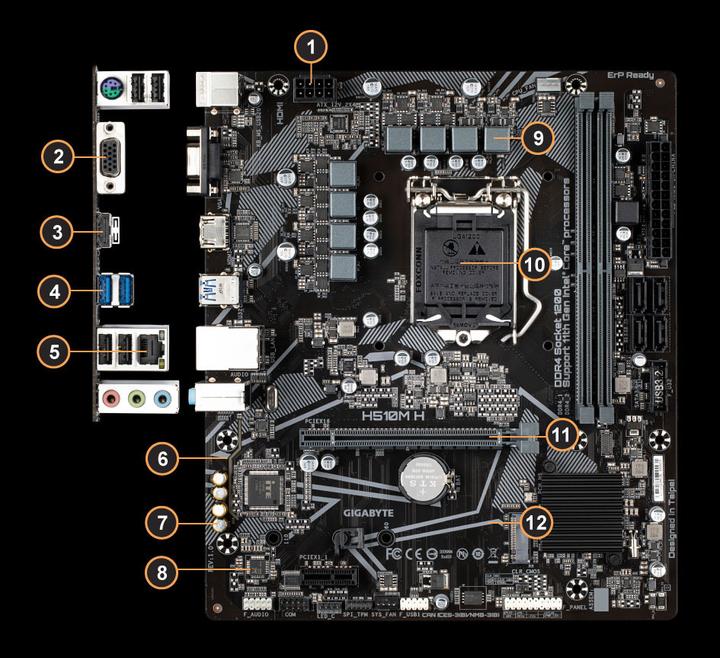

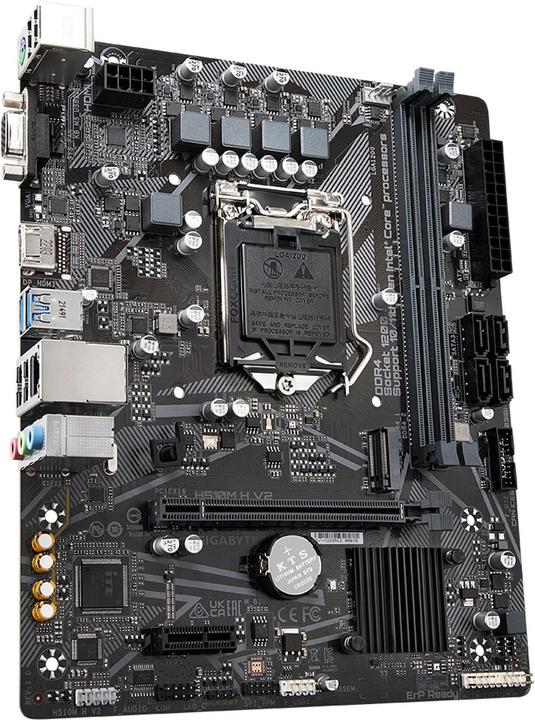

The GIGABYTE H510M H V2 motherboard utilizes the Intel H510 chipset and is compatible with Intel processors of the 10th and 11th generation for socket 1200. It offers two DDR4 DIMM slots in dual-channel mode and supports up to 64 GB of RAM. Additional features of the motherboard include a PCIe 4.0 x16 slot, a PCIe 3.0 x1 slot, and support for Intel Optane Memory. Furthermore, the GIGABYTE H510M H V2 is equipped with 8-channel sound, a Gigabit LAN interface, four SATA3 ports, an M.2 slot, and numerous USB connections.

Key specifications

Processor family
Celeron, Core i3 10th Gen, Core i3 11th Gen, Core i5 10th Gen, Core i5 11th Gen, Core i7 10th Gen, Core i7 11th Gen, Core i9 10th Gen, Core i9 11th Gen, Pentium Gold
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (4x), USB 2.0 Header (4x)
Mainboard features
Clear CMOS Button
Item number
32960996

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
H510M H V2
Release date
2.5.2023
Sales rank in Category Motherboards
84 of 966

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1200
Chipset
Intel H470
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Core i3 10th Gen, Core i3 11th Gen, Core i5 10th Gen, Core i5 11th Gen, Core i7 10th Gen, Core i7 11th Gen, Core i9 10th Gen, Core i9 11th Gen, Pentium Gold

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
64 GB
Memory chip
DDR4-4400
Max. RAM OC
3200 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

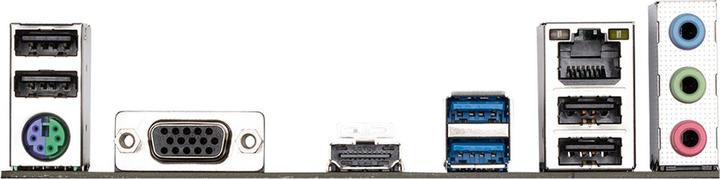

Video connections
D-Sub (1x), HDMI (1x)
Video connection version
HDMI 1.4

Network

Network connections
RJ45 (1x)
Max. port speed
1 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Internal interfaces

Internal connection options
S-ATA III (4x), USB 2.0 Header (4x)
Expansion slot
PCI Express x1 (2x), PCI Express x16 (1x)
PCI express version (max.)
3
Number of fan connector
2

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x)

Power supply

Power connectors
8-pin PCI-E

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
185 mm
Width
226 mm
Height
35 mm
Weight
385 g

Package dimensions

Length
27.50 cm
Width
24 cm
Height
5.30 cm
Weight
684 g
