Gigabyte Mainboard MS03-CE0 ATX Socket 4677 single

LGA 4677, Intel C741, ATX
Ratings
BrandMore from Gigabyte
Delivered between Fri, 14.8. and Thu, 20.8.
Only 1 piece in stock at supplier
free shipping

Show all

Product details

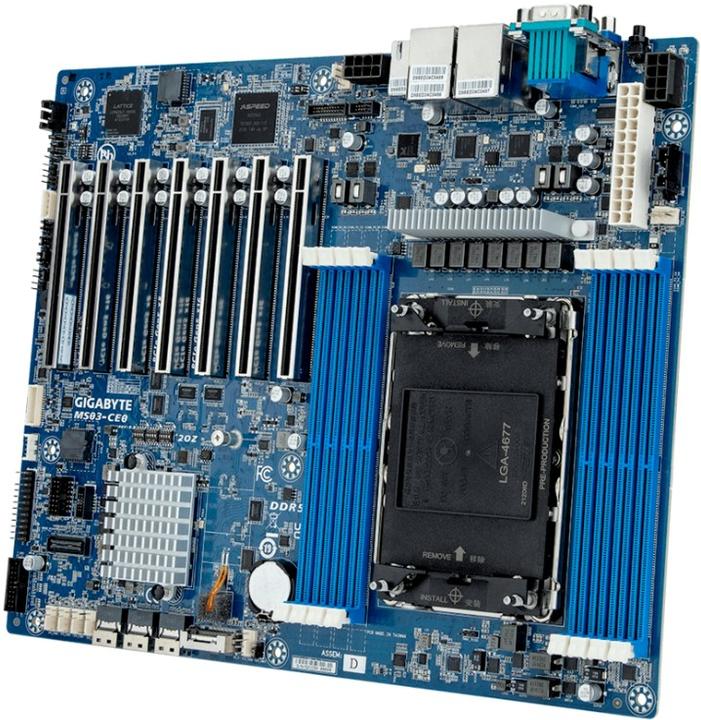

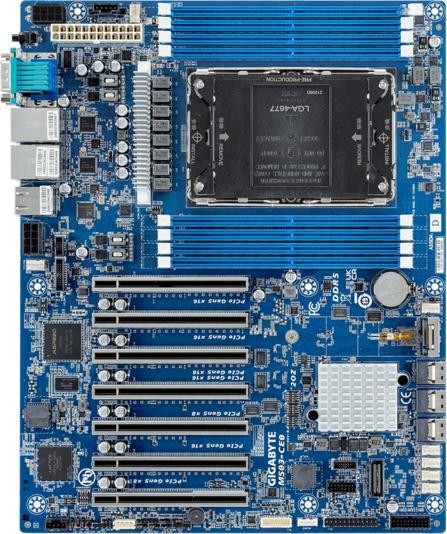

The GIGABYTE MS03-CE0 is a powerful ATX motherboard designed for use with Intel® Xeon® processors. It supports the LGA 4677 socket and offers a maximum RAM capacity of 256 GB with DDR5 SDRAM, making it ideal for demanding applications and server environments. The motherboard is equipped with an Intel C741 chipset and provides a variety of expansion options through multiple PCI Express slots. The integrated graphics card Aspeed AST2600 delivers basic graphics functions, while the Gigabit Ethernet interface ensures a reliable network connection. With support for various RAID levels and SATA III interfaces, the MS03-CE0 is a versatile solution for modern computing applications.

  • Supports up to 256 GB of DDR5 SDRAM memory
  • Integrated graphics card Aspeed AST2600 for basic graphics functions
  • Offers multiple PCI Express x16 and x8 expansion slots
  • Compatible with RAID levels 0, 1, 5, and 10 for flexible storage solutions
  • Two RJ45 Ethernet ports for enhanced network connections.

Key specifications

Memory form factor
DIMM
Number of memory modules (RAM)
8x
Internal connections
M.2 (1x), S-ATA III (12x)

General information

Item number
36470990
Manufacturer
Gigabyte
Category
Motherboards
Manufacturer No.
MS03-CE0
Release date
16.6.2023
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
LGA 4677
Chipset
Intel C741
Operating system compatibility
Windows

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
8x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Supported memory speed
4800 MHz, 5600 MHz

Graphics properties

Video connections
VGA (1x)

Network

Network connections
RJ45 Gigabit Ethernet (2x)
Ethernet controller brand
Intel
Ethernet controller
Intel I210-AT
Max. port speed
1 Gbit/s

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connections
M.2 (1x), S-ATA III (12x)
Expansion slot
PCI Express x16 (5x), PCI Express x8 (2x)
Number of fan connector
1

Further connections

USB ports
USB-C
Exact USB ports
USB-A 3.2 Gen 1 (4x)

Power supply

Power connectors
24-pin ATX

Origin

Country of origin
China, Germany, Taiwan

Voluntary climate contribution

CO₂ emissions
2636.89 kg
Climate contribution
CHF 45.95

Scope of delivery

Scope of delivery
SATA cable

Product dimensions

Length
244 mm
Width
304.80 mm

Package dimensions

Length
36.80 cm
Width
33.80 cm
Height
8 cm
Weight
1.72 kg

30-day right of return
36 Months Warranty (Bring-in)
