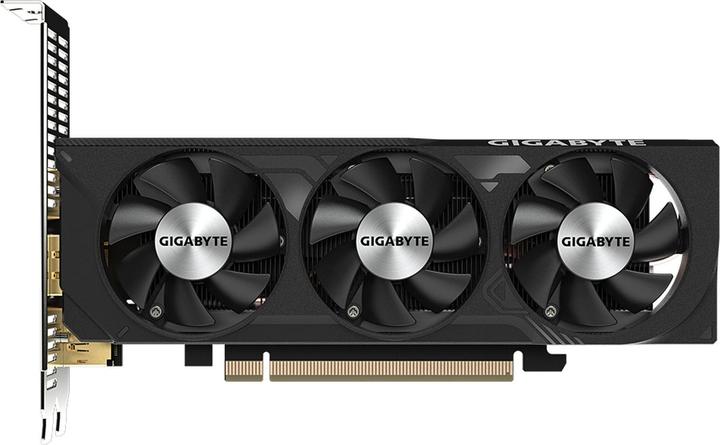

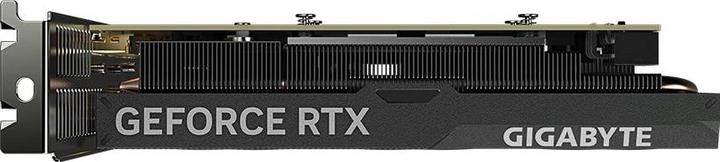

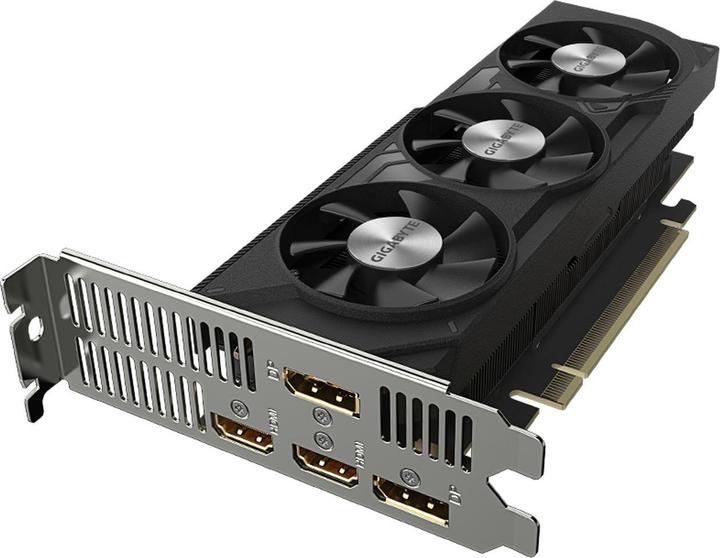

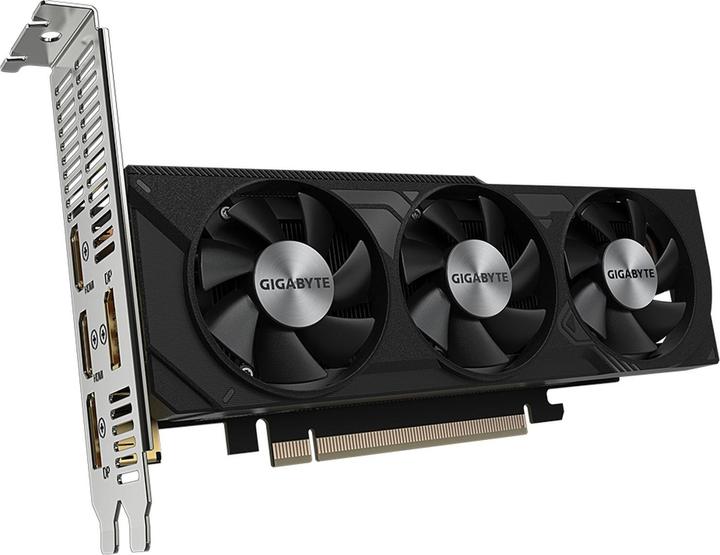

Gigabyte GeForce RTX 4060 OC

8 GB
8Ratings
BrandMore from Gigabyte
Delivered between Sat, 20.9. and Sat, 27.9.
1 item ordered
free shipping

Product details

GIGABYTE's specially designed cooling system provides effective heat dissipation with pure copper heatpipes in direct contact with the GPU. This allows for improved heat transfer to the heat sink, resulting in higher performance at lower temperatures. With a length of only 182 mm, the card is perfect for compact designs. An additional low-profile bracket is included for seamless adaptation to different build requirements. Enjoy versatile display options with two DisplayPort and two HDMI connectors supporting up to 4 displays simultaneously. Low RDS(on) MOSFETs are specifically designed to provide lower switching resistance for faster charging and discharging current at extremely low temperatures.

Key specifications

Length
18.50 cm
Number of shaders
3072 x
Graphics card model
GeForce RTX 4060
Video memory clock
17 GHz
Max. connected monitors
4 x
Max. Video resolution
7680 x 4320 pixels
Power consumption
115 W
Item number
37955937

General information

Manufacturer
Gigabyte
Category
Graphics card
Manufacturer no.
GV-N4060OC-8GL
Release date
7.9.2023
External links
Manufacturer's site (de)

Graphics card properties

Max. connected monitors
4 x
PCI Express version
PCIe 4.0
Max. Video resolution
7680 x 4320 pixels
Expansion card form factor
2 slots, Low profile
LED colour
without LED

Graphics processing unit

Graphics card model
GeForce RTX 4060
Clock frequency
2475 MHz
Boost frequency
2475 MHz
Number of shaders
3072 x

Video memory

Video memory type
GDDR6
Storage capacity
8 GB
Video memory clock
17 GHz
Memory Interface
128 bits
Memory Bandwidth
2.13 GB/s

Cooling properties

Graphics card cooling system
Active cooler
Number of fans
3 x

Graphics card technologies

DirectX version
12
OpenGL version
4.60
GPU microarchitecture
NVIDIA Ada Lovelace
GPU manufacturer technology
NVIDIA DLSS 3

Connections

Video connections

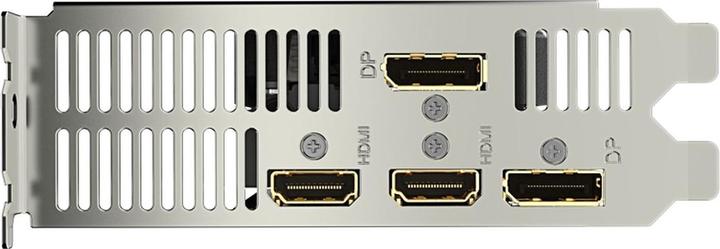

DisplayPort (2x), HDMI (2x)
HDMI version
2.1
DisplayPort version
1.4a

Power supply

Power consumption
115 W
Min. recommended system performance
450 W
Power connectors
8-pin PCI-E

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
18.50 cm
Width
0.40 cm
Height
6.90 cm

Package dimensions

Length
30 cm
Width
25 cm
Height
6 cm
Weight
594 g
