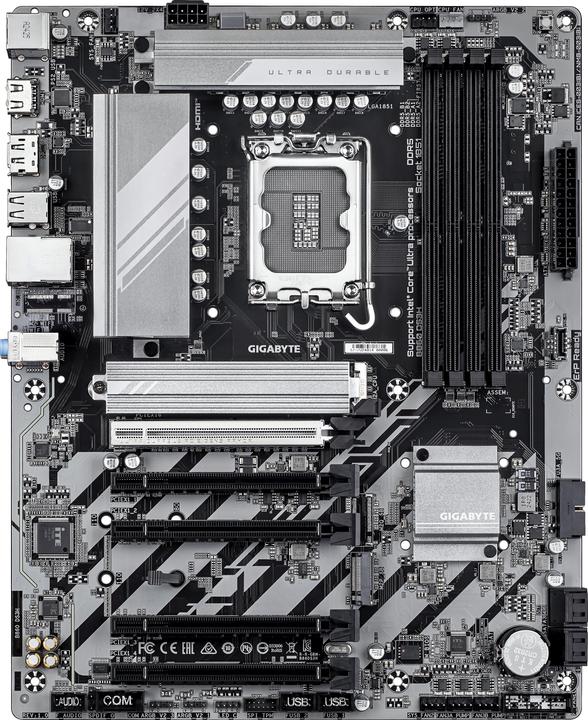

Gigabyte B860 DS3H

LGA 1851, Intel B860, ATX
Ratings
BrandMore from Gigabyte
Delivered between Tue, 17.6. and Fri, 20.6.
8 items in stock at supplier

Product details

Boost the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative design and state-of-the-art functions, these boards deliver outstanding performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.

Key specifications

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
8-pin PCI Express (1x), S-ATA III (4x)
Mainboard features
Clear CMOS Button, Front panel audio connector
Item number
53976705

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B860 DS3H
Release date
13.1.2025

Motherboard properties

Form factor
ATX
Socket
LGA 1851
Chipset
Intel B860
Mainboard features
Clear CMOS Button, Front panel audio connector
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Memory chip
DDR5
Supported memory speed
5600 MHz, 6400 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

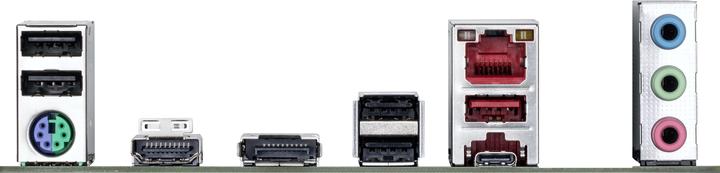

Graphics properties

Video connections
DisplayPort (1x)
Video connection version
DisplayPort 2.1, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Headphones

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
8-pin PCI Express (1x), S-ATA III (4x)
Expansion slot
PCI Express x16 (4x), PCI Express x16 (Gen 5) (1x)
PCI express version (max.)
5
Number of fan connector
4

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (1x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Origin

Country of origin
China, Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
LAN bandwidth management software, Norton® Internet Security (OEM version)

Product dimensions

Length
244 mm
Width
305 mm
Height
35 mm
Weight
2000 g

Package dimensions

Length
34.60 cm
Width
27.70 cm
Height
8.40 cm
Weight
1.34 kg
