Gigabyte B850 Eagle WIFI6E
AM5, AMD B850, ATXDelivered between Thu, 8.5. and Sat, 10.5.
3 items ordered
3 items ordered
Product details

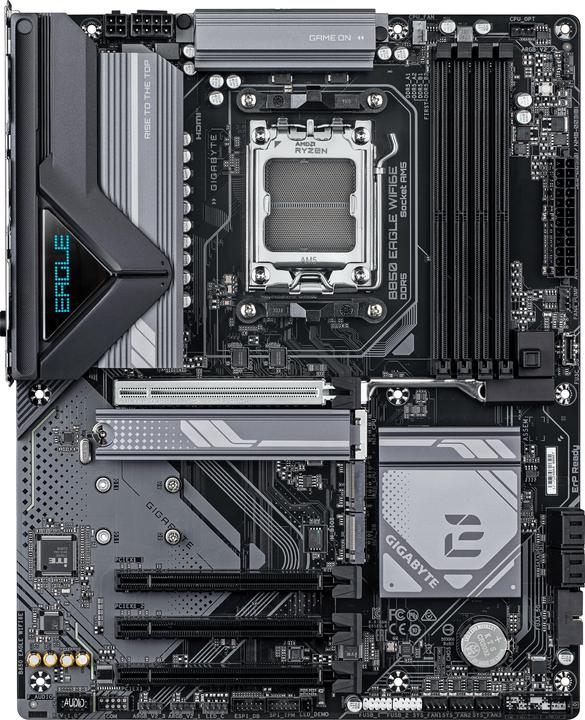

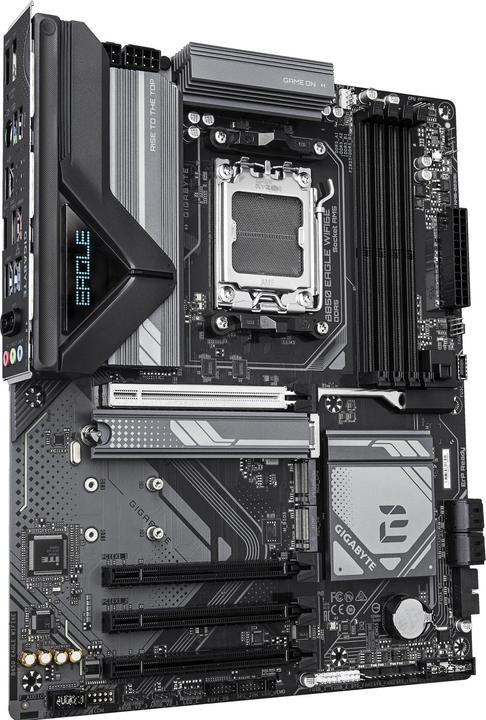

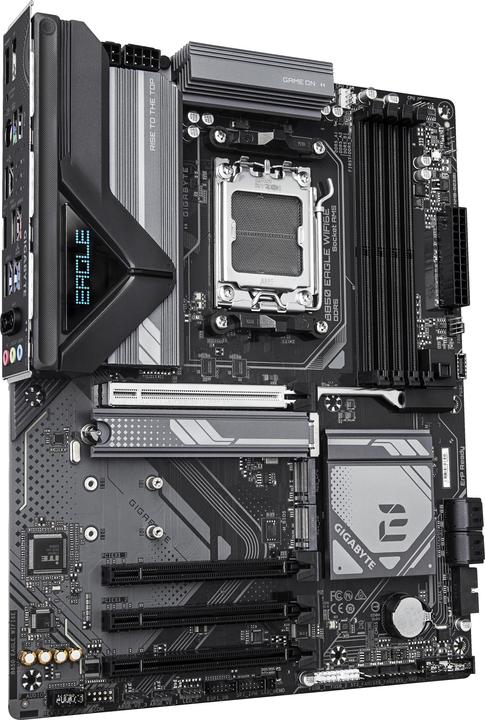

The GIGABYTE B850 Eagle WiFi6E is an ATX mainboard with the mid-range AMD B850 chipset and AMD AM5 socket. It supports both the Ryzen 9000, 8000 and 7000 CPUs.
Graphics cards and NVMe SSDs are connected via PCIe 5.0 and data transfer rates of up to 10 Gbit/s are possible via USB 3.1.
To get the best out of your gaming PC, the CPU can be overclocked to higher clock rates via the mainboard. This ensures a stable power supply to the processor so that even high-end CPUs can operate at full power over a longer period of time. You can also fully utilise the DDR5 memory with overclocking. Just in case, the GIGABYTE B850 Eagle WiFi6E offers you Clear CMOS.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Item number | 53483472 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B850 EAGLE WIFI6E |
Release date | 6.1.2025 |
Sales rank in Category Motherboards | 95 of 974 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B850 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8200 MHz |
Supported memory speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), RJ 45 |
Video connection version | DisplayPort 2.1, HDMI 2.1 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Microphone |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (3x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 2 |

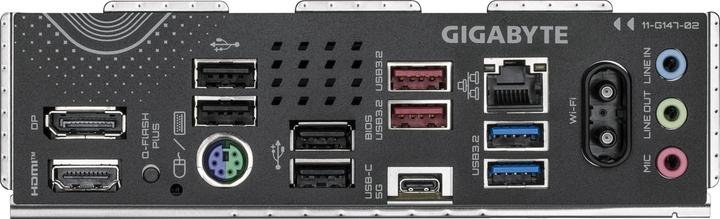

USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 4-pin Molex, 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton Internet Security (OEM version) |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 1680 g |
Length | 34 cm |
Width | 27.20 cm |
Height | 8 cm |
Weight | 1.68 kg |
Specifications may include unverified machine translations.
