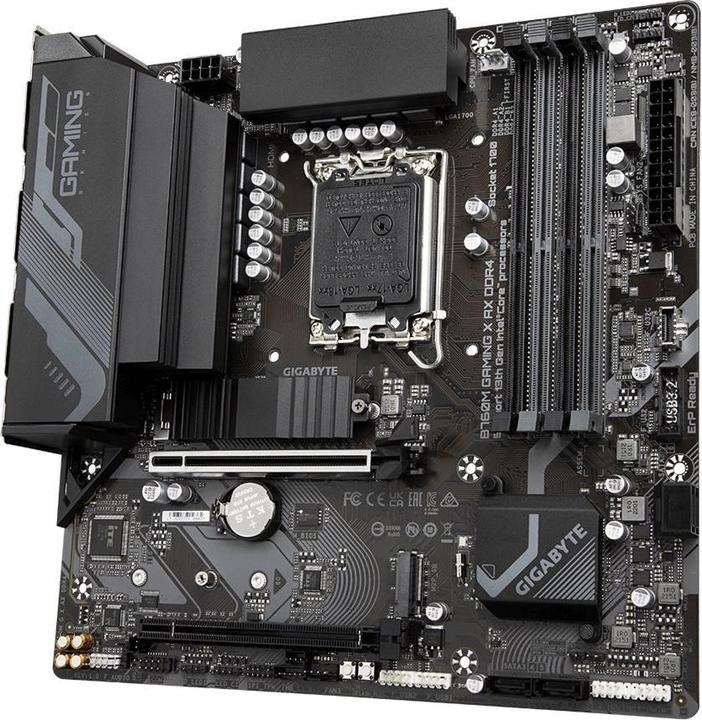

Gigabyte B760M GAMING X AX DDR4

LGA 1700, Intel B760 Express, mATX
3Ratings
BrandMore from Gigabyte
Delivered between Wed, 27.8. and Wed, 10.9.
8 pieces in stock at supplier
free shipping

Product details

Gigabyte motherboards enable the ultimate connectivity experience with blazing fast data transfer speeds in networking and storage.

Key specifications

Processor family
Celeron, Core i3, Core i5
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector, Reset button, RGB header, S/PDIF header, Serial header
Item number
23653523

General information

Manufacturer
Gigabyte
Category
Motherboards
Manufacturer no.
B760M G X AX DDR4
Release date
9.12.2022

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760 Express
Mainboard features
Clear CMOS Button, Front panel audio connector, Reset button, RGB header, S/PDIF header, Serial header
Operating system compatibility
Linux, Windows 10, Windows 7, Windows 8
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3, Core i5

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4 RAM
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.2, HDMI 2.0

Network

Network connections
RJ45 (1x)
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Microphone

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x)
Number of fan connector
4

Further connections

USB ports
USB-A

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Norton Internet Security

Product dimensions

Length
244 mm
Width
244 mm
Height
32 mm
Weight
1500 g

Package dimensions

Length
27 cm
Width
27 cm
Height
6 cm
Weight
1.43 kg
