Exsys PCI-EXPRESS Ethernet card ASM1806(Asmedia),RTL8111G,LP

PCI-E x4
Ratings
BrandMore from Exsys
Delivered between Thu, 5.6. and Sat, 7.6.
Only 2 items in stock at supplier

Product details

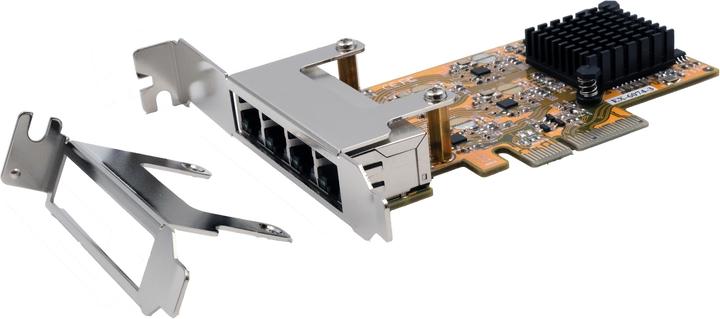

The EX-6074-3 is a fast quad (four-port) Gigabit Ethernet card for the PCIe x4 to x16 bus. A Realtek chip is used for each port. It supports a data transfer rate of up to 1000 Mbps per connection. The EX-6074-3 supports half and full duplex as well as NWay auto-negotiation to automatically adjust to the network speed (10/100/1000 Mbps). Additionally, the card is equipped with Auto-MDI/MDI-X and offers extensive support for various operating systems. A low-profile bracket is included with the EX-6074-3 for slim computers up to 8 cm in height.

Supports 10/100/1000 Base-T Ethernet standard
Supports PCI-Express x4 to x16 bus specification Rev. 2.0
Supports Auto-MDI/MDI-X Auto (for crossover cables)
Supports Jumbo Frame up to 9 KBytes
EEE (Energy Efficient Ethernet)
Wake-on-LAN and Remote Wake-up
Supports Full Duplex Flow Control (IEEE 802.3x)
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding
48 KB Buffer Transmit/Receiver chip
LED indicator for data transmission
Standard Cat.6A cabling with RJ45 connectors
Chipset: 4x Realtek RTL8111G

Package contents:

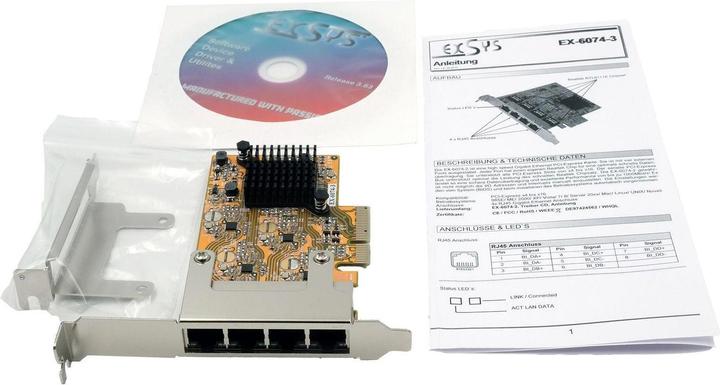

EX-6074-3, low-profile bracket, driver CD, manual.

Key specifications

Max. port speed
1000 Mbit/s
Network adapter type
Ethernet adapter
Documents
Technical data sheet.pdf
Item number
22995676

General information

Manufacturer
Exsys
Category
Network cards
Manufacturer no.
EX-6074-3
Release date
20.1.2022

Colour

Colour
Grey
Exact colour description
Grey

Network card properties

Hardware interface
PCI Express x4
Max. port speed
1000 Mbit/s
Network adapter type
Ethernet adapter
Number of ports
4 x

Network connections

Connections
RJ45, WLAN

Mobile internet properties

Max. data transfer rate
1000 Mbit/s

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Driver CD, Low profile temples, Manual

Product dimensions

Length
30 mm
Width
155 mm
Height
22.50 mm

Package dimensions

Length
22.60 cm
Width
15.30 cm
Height
3.20 cm
Weight
172 g
