Exsys PCI-E Card Ethernet 10 Gbps, PoE

PCI Express x2
Ratings
BrandMore from Exsys
Delivered between Sat, 13.6. and Wed, 17.6.
Only 1 piece in stock at supplier
free shipping

Product details

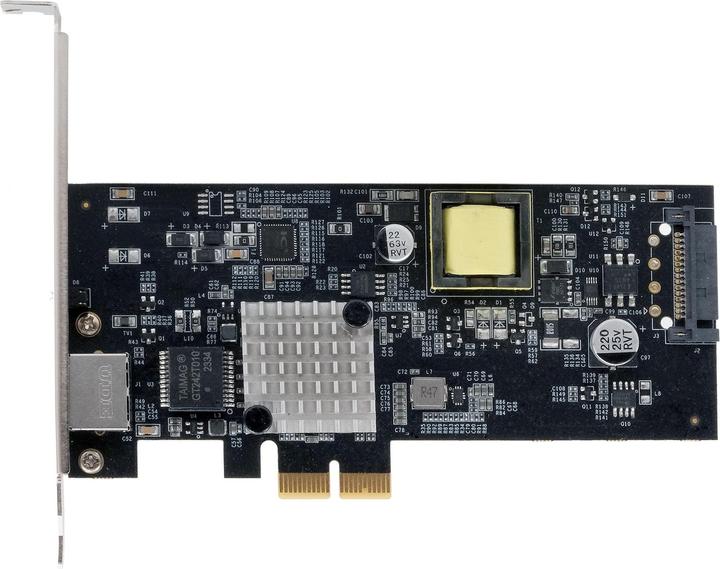

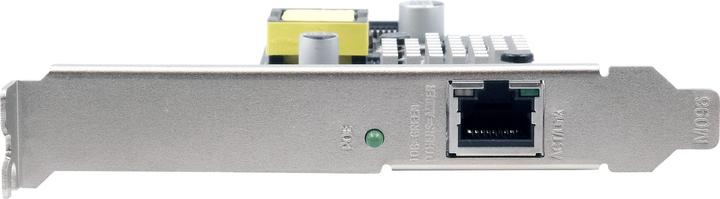

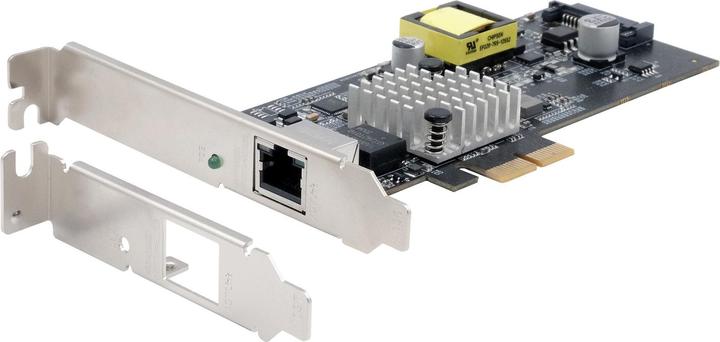

The EX-60121 is a 10 Gigabit Ethernet card with an RJ45 connector and Power over Ethernet (PoE) for the PCIe bus. It supports half and full duplex as well as automatic negotiation to adapt to network speeds (10/100/1000/10000 Mbps). Thanks to the integrated PoE functionality, connected PoE devices (IP phones, IP cameras, etc.) can be powered via the network cable. The EX-60121 supports PoE standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and allows for a maximum output power of up to 30 W.

It supports the Ethernet standard 10/100/1000/2500/5000/10000 Base-T. Fully compliant with IEEE 802.3af PoE (PSE) Type 1 = 15 W and IEEE 802.3at PoE+ (PSE) Type 2 = 30 W. Maximum output power (PD): Type 1 = 12.95 W / Type 2 = 25.50 W. Fully compliant with PCI Express 4.0. Supports jumbo frames up to 16 KBytes. MSI, MSI-X, LSO, RSS, and IPv4/IPv6 checksum offloads ensure high performance and low CPU usage. Energy Efficient Ethernet (EEE), Wake On LAN, and power management features are also included. PoE power supply is provided via the PCIe slot or a SATA connection. LED indicators display PoE status, activity, and data transfer mode. Chipset: Marvell AQC113CS.

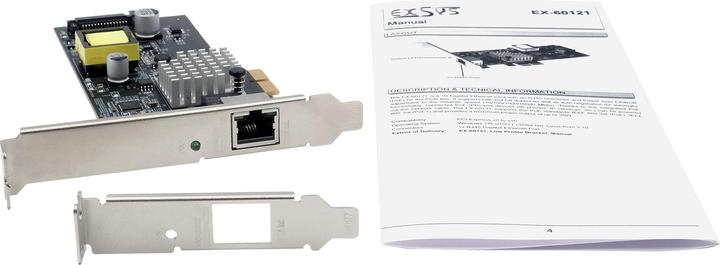

Package contents: EX-60121, low-profile mounting bracket, manual.

Key specifications

Network adapter type
Ethernet adapter
Max. port speed
10000 Mbit/s

General information

Item number
56371408
Manufacturer
Exsys
Category
Network cards
Manufacturer No.
EX-60121
Release date
15.1.2025

Network card properties

Network adapter type
Ethernet adapter
Hardware interface
PCI Express x2
Max. port speed
10000 Mbit/s
Number of ports
1x

Mobile internet properties

Max. data transfer rate
10 Gbit/s

Voluntary climate contribution

CO₂ emissions
9.8 kg
Climate contribution
CHF 0.24

Scope of delivery

Scope of delivery
Low profile temples, Manual

Package dimensions

Length
22.30 cm
Width
15.50 cm
Height
4.20 cm
Weight
148 g
