Eurolite DXT DMX Pixel Art-Net Node II

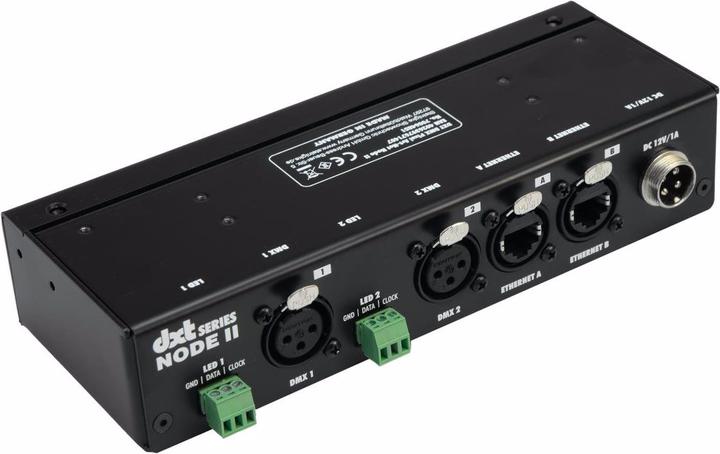

The DXT DMX Pixel Art-Net Node II is part of the DXT series from Eurolite, which includes reliable and powerful DMX tools made in Germany. The Node II allows on 2 ports each the output of up to 512 DMX channels or the control of up to 512 digital LED pixel channels. It features two Neutrik XLR and two etherCON sockets, as well as two 3-pin pluggable screw terminals. The second etherCON socket allows the network connection to be looped. The device can be configured via an integrated OLED display, ArtNet, or a website.

Art-Net interface for controlling 1024 digital LED channels or DMX channels:

• 2 x 3-pole DMX output
• 2 x 3-pole output for digital LED strips
• 2 x etherCON network socket
• Output of up to 1024 DMX channels
• Allows control of up to 1024 digital LED channels

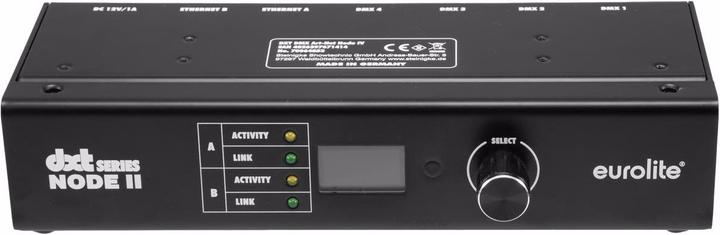

• OLED display with rotary encoder
• Link and activity LED per network port
• Supported by all programs with Art-Net output
• ArtDMX reception via broadcast or unicast
• Configuration via OLED display, website, or Art-Net
• Setting options: IP address, subnet mask, Art-Net ShortName, Art-Net LongName, Art-Net Net, Art-Net Subnet, Art-Net Universe
• DMX output frequency: 40 Hz or 20 Hz
• LED types: WS2801, WS2811, WS2812, etc. (all common 800 kHz types)
• Power supply via included 12V plug-in power supply unit
• Rack mounting or truss mounting possible via optional accessories
• Can send up to 1024 DMX channels
• Controllable via ArtNet
• The device can be connected to the PC via RJ-45 built-in version
• Desktop case 1 U; (19") 48.3 cm rack mount (optional)
• Made in Germany.
