Endorfy Spartan 5 MAX EY3A003

146 mm
Delivered between Thu, 18.12. and Fri, 19.12.
1 item ordered
Free shipping starting at 50.–

LED colour2

Product details

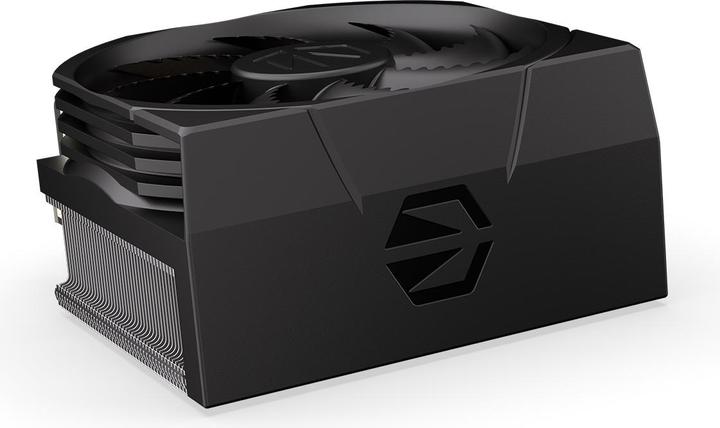

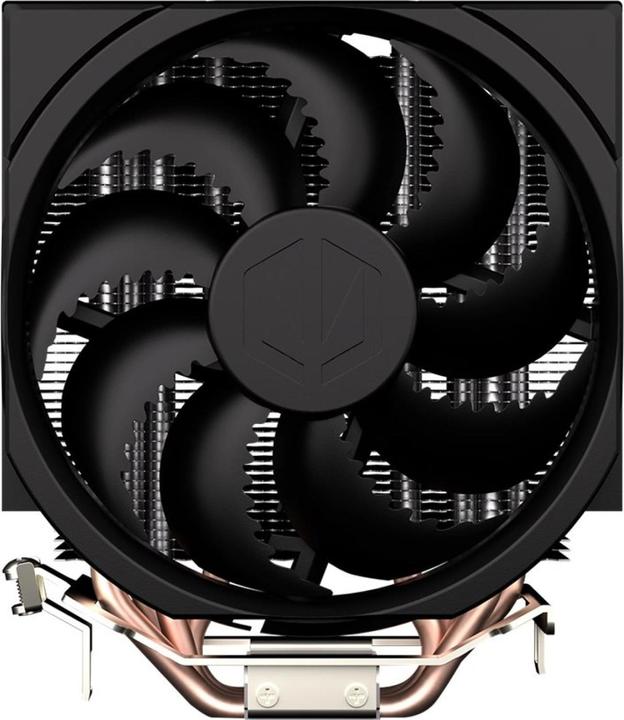

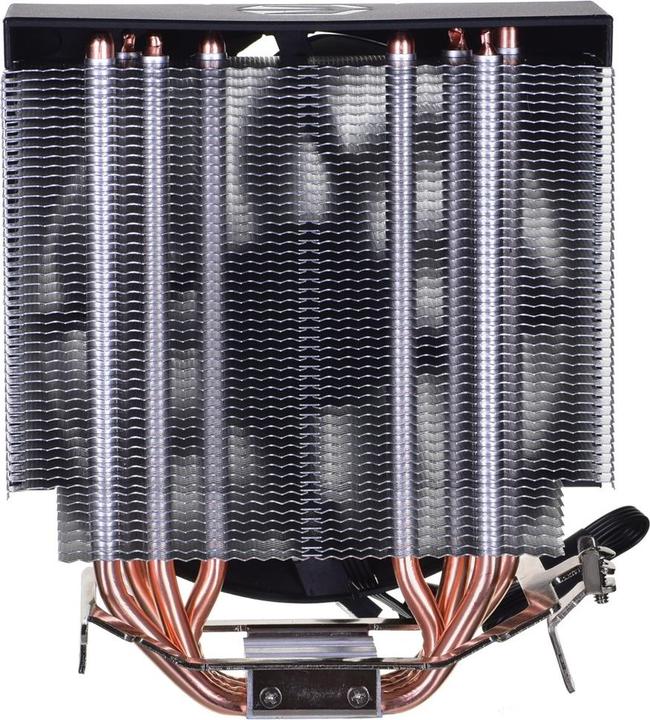

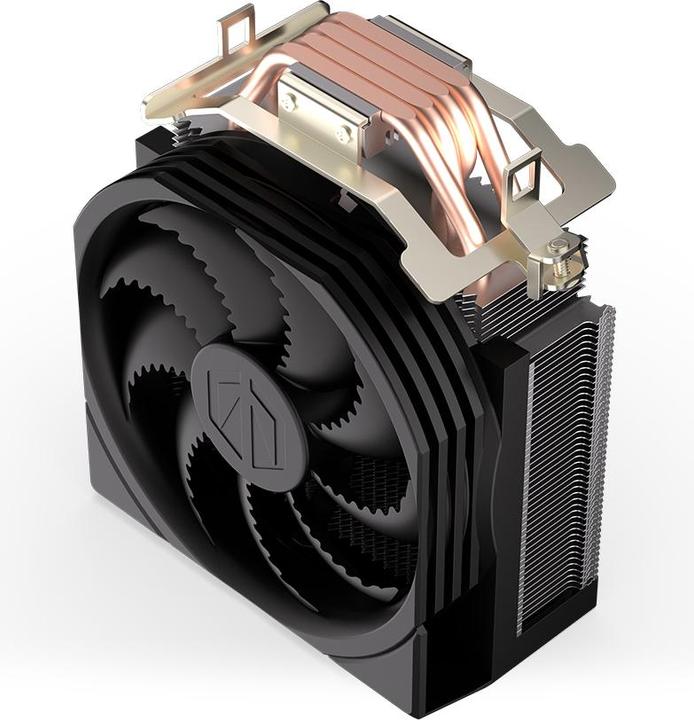

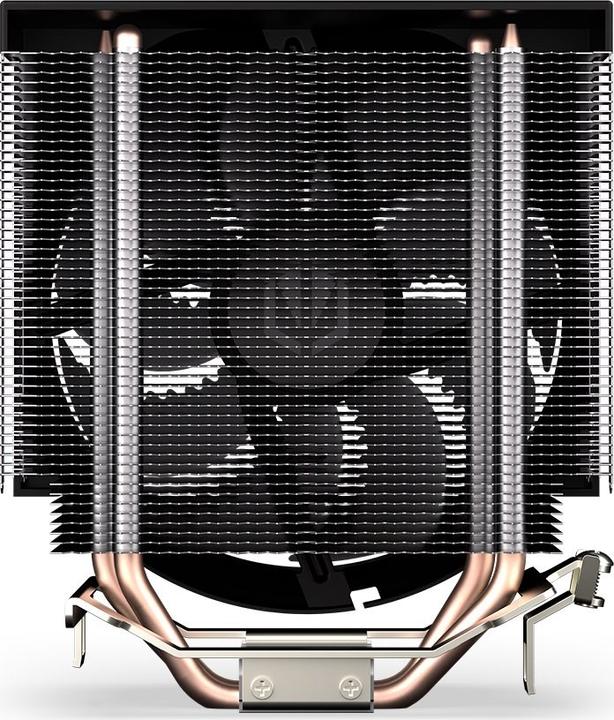

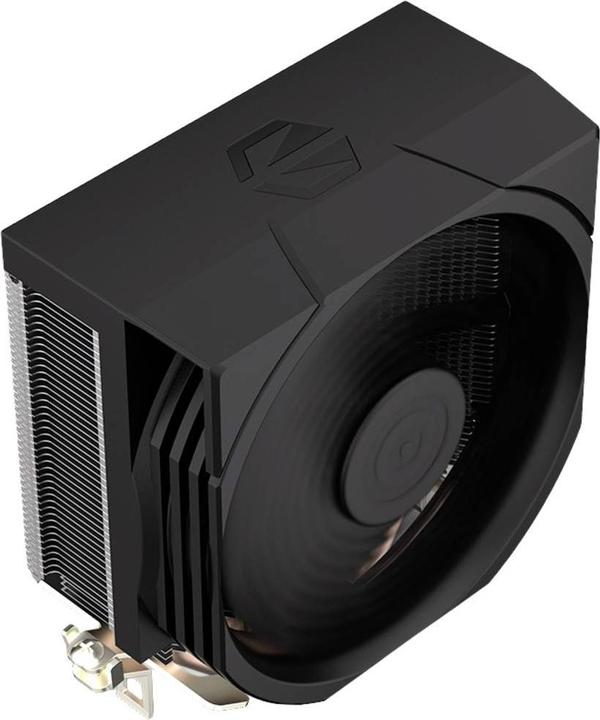

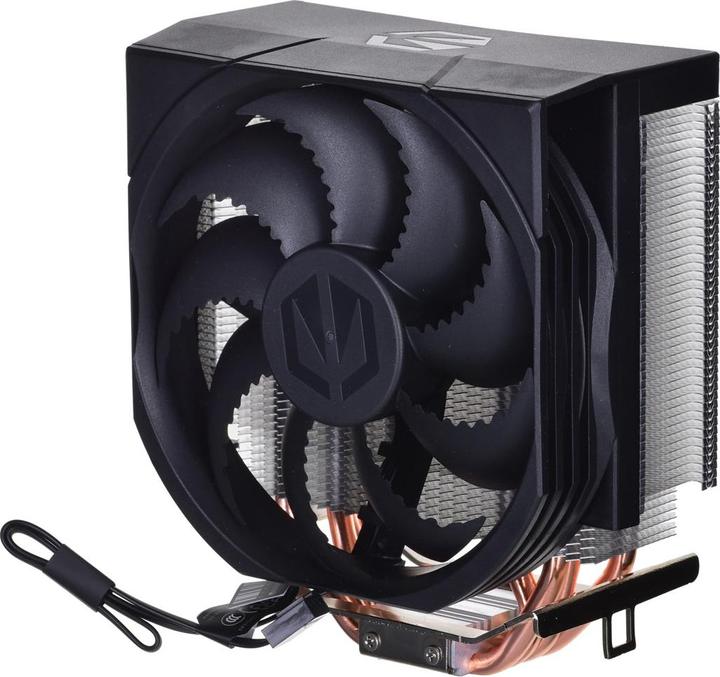

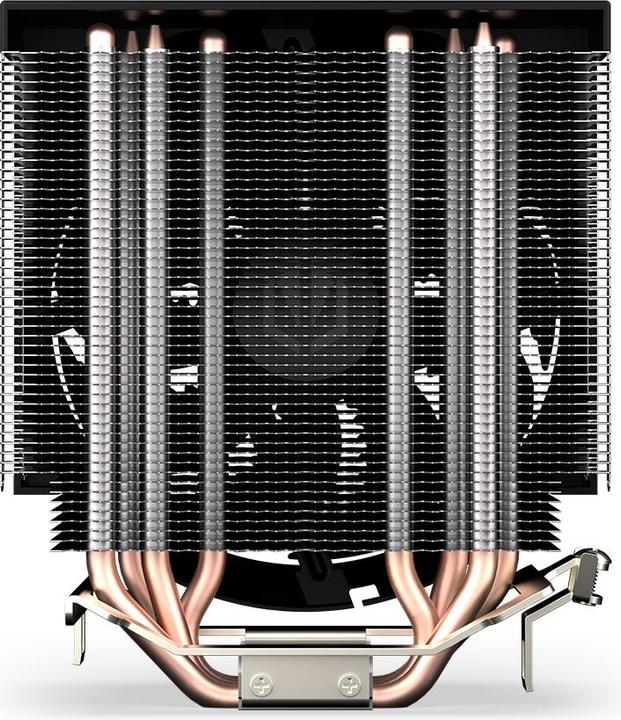

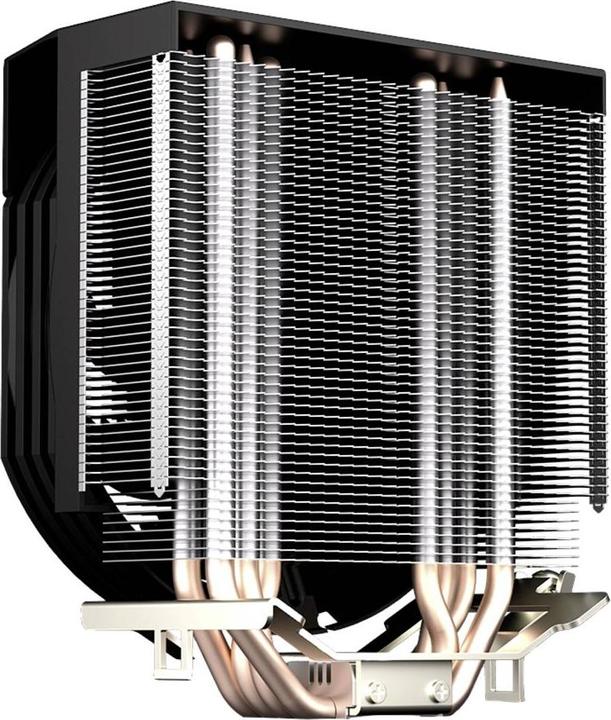

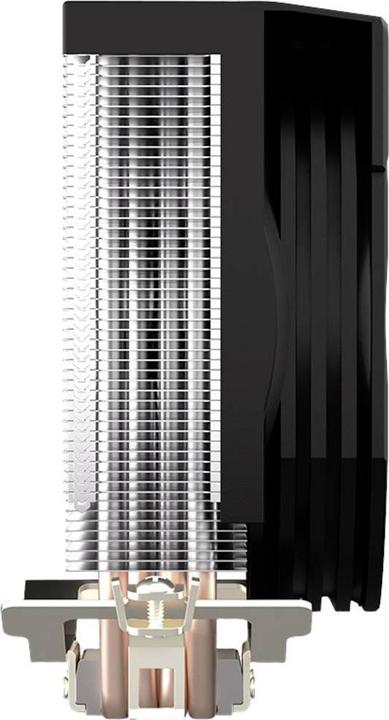

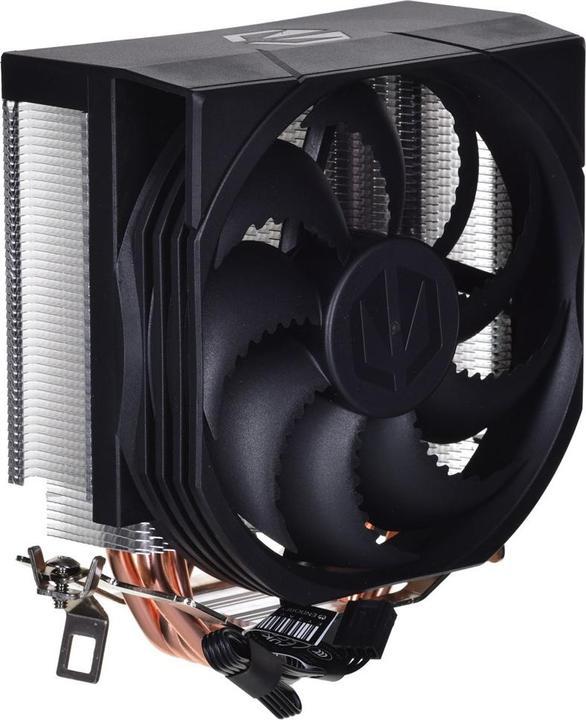

The Endorfy Spartan 5 MAX is a compact cooler with a height of 14.6 cm and a 120 mm Fluctus fan. Thanks to the densely ribbed heatsink with four heat pipes, you won't have to worry about high temperatures. With this cooler, you can render and design without the concern of overheating. The Endorfy Spartan 5 MAX is also compatible with many sockets, ranging from older sockets like AM2 and LGA1156 to AM5 and LGA1700, as well as large RAM modules. The 120 mm Fluctus fan ensures a constant airflow. The fins are designed to channel as much air as possible through the closely arranged heatsink fins. Each fan blade has a wavy edge that further reduces fan noise. At first glance, the Spartan 5 MAX may seem small, but the "MAX" in the name is not without reason. The cooler also fits into small cases and keeps temperatures low. Effective cooling is achieved through the heatsink with dense ribs, which dissipates heat well. The optimized base with direct-touch heat pipes significantly improves heat dissipation. The Spartan 5 MAX can be mounted in no time, with no additional tools required. A 120 mm Fluctus fan is already installed, making the entire process easy to manage.

Key specifications

Socket
AM2+AM3+AM4AM5FM1FM2LGA 1150LGA 1151LGA 1155LGA 1156LGA 1200LGA 1356LGA 1700LGA 2011LGA 2011-v3LGA 2066LGA 775
power connector
4-pin PWM
Diameter
120 mm
Max. TDP
180 W
Number of fans
1 x
Height (with fan)
146 mm
Item number
24472532

General information

Manufacturer
Endorfy
Category
CPU coolers
Manufacturer no.
EY3A003
Release date
22.2.2023
Sales rank in Category CPU coolers
47 of 991

Colour

Colour
Black
Exact colour description
Black

Cooler properties

CPU cooler design
Single Tower
Fan type
Tower Cooler
Socket
AM2+AM3+AM4AM5FM1FM2LGA 1150LGA 1151LGA 1155LGA 1156LGA 1200LGA 1356LGA 1700LGA 2011LGA 2011-v3LGA 2066LGA 775
Cooler mounting
Screw
Supported fan sizes
120mm

Heat sink properties

Number of heatpipes
4
Diameter heat pipe
6 mm
Number of cooling fins
146
Materials radiator core
Aluminium
Material cooling fins
Aluminium

Fan dimensions

Diameter
120 mm

Fan properties

Number of fans
1 x
Max. Speed
1500 RPM
Max. TDP
180 W
Max. noise level
25 dB
LED colour
without LED
Fan bearing type
Fluid Dynamic bearing

Connections

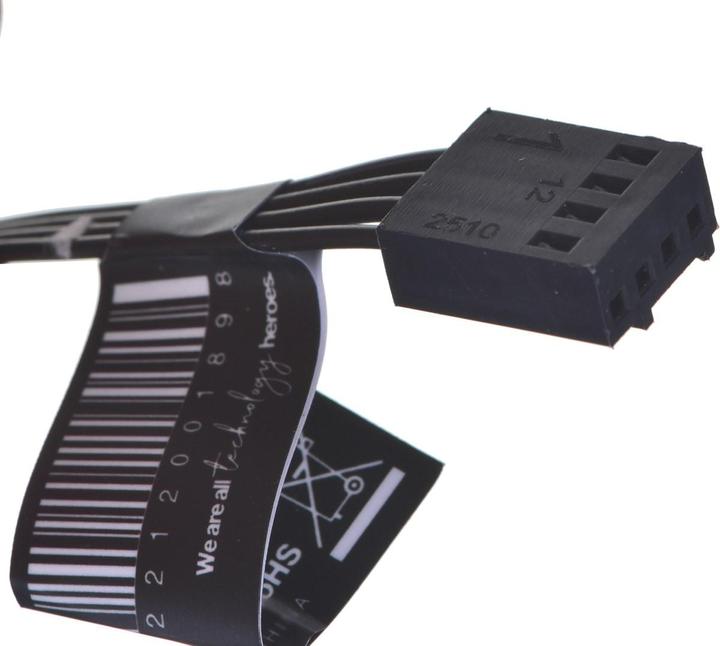

power connector
4-pin PWM

Power supply

Voltage
12 V

Scope of delivery

Scope of delivery
Pactum PT-3 thermal compound

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
125 mm
Length (with fan)
65 mm
Height (with fan)
146 mm
Weight
435 g

Package dimensions

Length
18.90 cm
Width
16.70 cm
Height
11.40 cm
Weight
612 g

30-day right of return
24 Months Warranty (Bring-in)
