EFB Elektronik Network cable

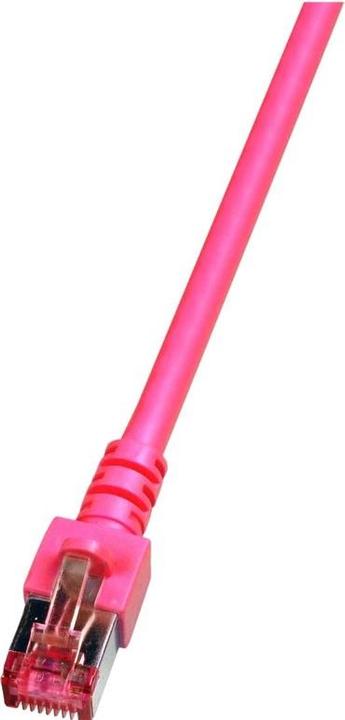

EFB-Elektronik Patch Cable Cat.6 EC6000 3.0m S/FTP

Manufacturer: EFB-Elektronik
Description: Patch Cable Cat.6 2xRJ45
Type: EC6000 3.0m S/FTP
Cable Type: S/FTP
Category: 6
Length: 3 m
Connector Type Connection 1: RJ45 8(8)
Connector Type Connection 2: RJ45 8(8)
Sheath Color: Magenta
Bend Protection Sleeve: Molded
Latch Protection: Yes
Color of Bend Protection Sleeve: Violet
Flame Retardant Design: Yes
Oil Resistant according to EN 60811-404: No
Cable Construction: 4x2
AWG Cross Section: 27
Pin Assignment: 1:1

The Cat.6 patch cable meets the requirements for 5 Gbit Ethernet and features gold-plated contacts.

Technical Product Features:

• Cat.6 S/FTP cable with AWG 27/7
• Sheath material made of halogen-free LSZH
• Fire Protection: flame retardant, halogen-free, low smoke
• Connection: RJ45 to RJ45 with latch protection
• Equipped with gold-plated contacts

The sheath of the shielded patch cable is made of halogen-free LSZH material and has a length marking on the sleeve. Additionally, the cable offers the possibility of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at, and 4PPoE according to IEEE802.3bt. The RJ45 connectors are wired according to TIA/EIA 568B and are 1:1.

Suitable for a temperature range of 0 to 60 °C. The data cable features copper conductor material and is ideally suited for use in structured building cabling, industrial Ethernet, and data centers. A bandwidth of up to 250 MHz is achieved.
